Removal Procedure
Courtesy of GENERAL MOTORS CORP.
- Raise the window to the full up position.
- Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
- Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
- Tape the window in the full up position.
- Connect the door trim panel wire harness connector.
- Loosen the window regulator to window clamp nuts 4 revolutions.
- Using the power window switch, lower the window regulator about 1/2 way down.
- Disconnect the electrical connector from the power window motor.

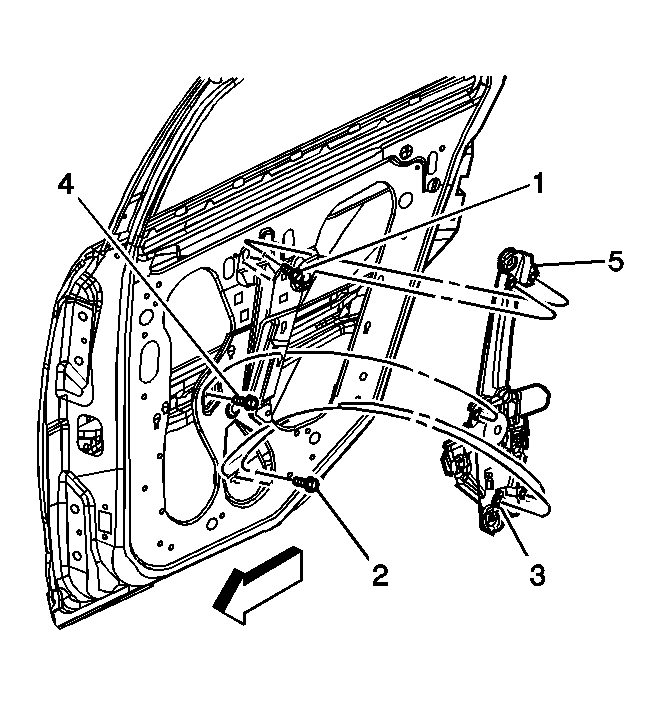

- Remove the window regulator bolts (1, 2, 3, 4, 5).
- Remove the window regulator through the rear access hole in the door panel.
