Removal Procedure

  1. Ensure that the window is fully closed.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .

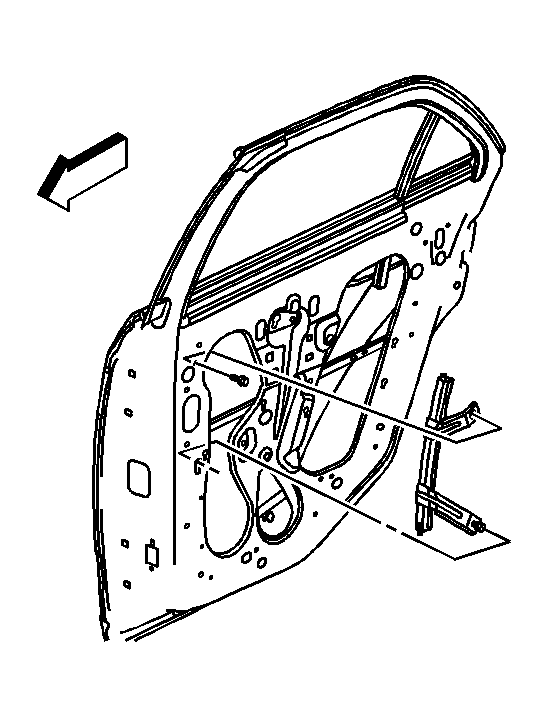

    4. Fig 1: Removing & Installing Rear Door Front Window Channel
    GM758970Courtesy of GENERAL MOTORS CORP.
  4. Loosen the lower bolt.
  5. Remove the upper bolt.
  6. Rotate the top of the front window channel forward.
  7. Lift upward on the window channel to disengage the lower bolt from the keyhole slot.
  8. Remove the front window channel from the door.
