Removal Procedure

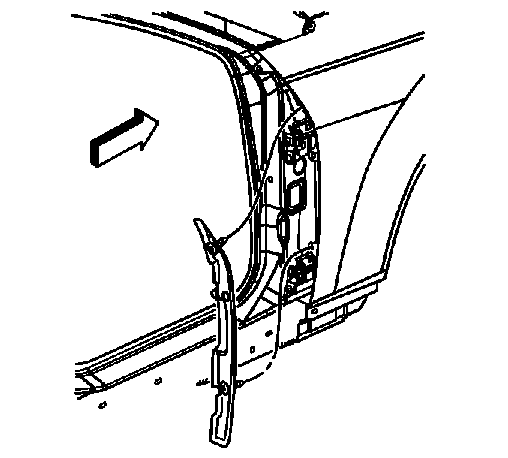

    Fig 1: Removing & Installing Fender Sound Insulator
    GM738141Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Replace only one hinge at a time then repeat procedure for the second hinge, if needed.
  1. Remove the push-in fasteners securing the fender sound insulator to the front fender.
  2. Remove the fender sound insulator.

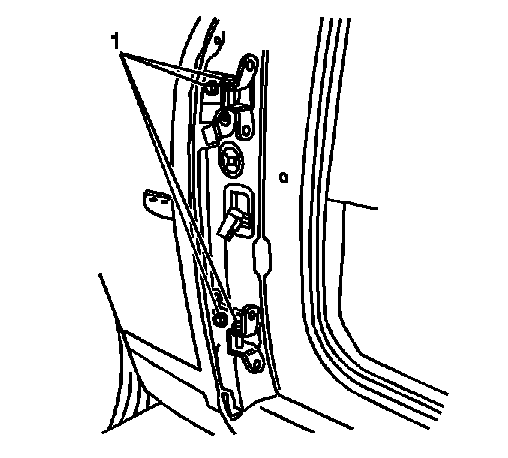

    3. Fig 2: Removing & Installing Front Door Hinges
    GM787975Courtesy of GENERAL MOTORS CORP.
  3. Mark the position of the hinge on the body.
  4. Support the door.
  5. Remove the hinge bolts (1) from the body.
  6. Remove the hinge bolts from the door.
