Removal Procedure

  1. Remove the front door trim panel. Refer to Trim Panel Replacement - Side Front Door .

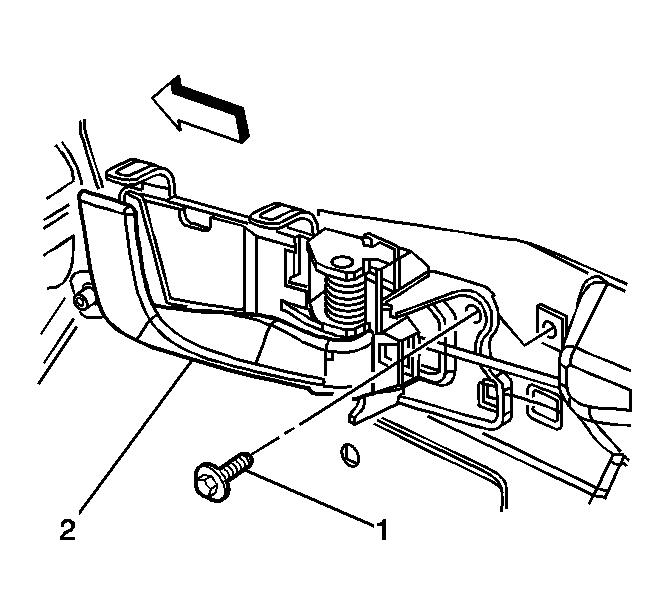

    2. Fig 1: Removing & Installing Inside Door Handle
    GM754046Courtesy of GENERAL MOTORS CORP.
  2. Remove the fastener (1) attaching the inside door handle (2) to the door trim panel.
  3. Remove the door handle from the door trim panel by sliding the handle towards the front of the vehicle.
  4. Remove the door handle from the door handle linkage.
