Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

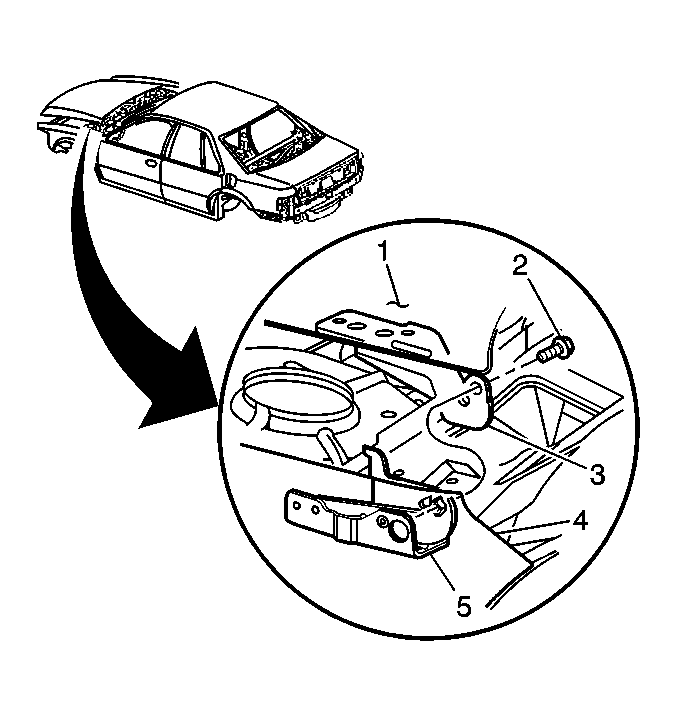

    Fig 1: View Of Hood & Components
    GM105291Courtesy of GENERAL MOTORS CORP.
  1. Install the hood (1) to the body with the aid of an assistant.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fasteners (2) in order to secure the upper hood hinge (3) to the lower hood hinge (5).

    Tighten:  Tighten the fasteners to 9 N.m (80 lb in).

  3. Install the hood assist rods. Refer to Assist Rod Replacement - Hood  .
  4. Connect the underhood lamp connector.
  5. Install the hood insulator. Refer to Hood Insulator Replacement  .
  6. Adjust the hood if necessary. Refer to Hood Adjustment  .
  7. Remove the tape from the hood and the fenders.
  8. Close the hood.
