Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

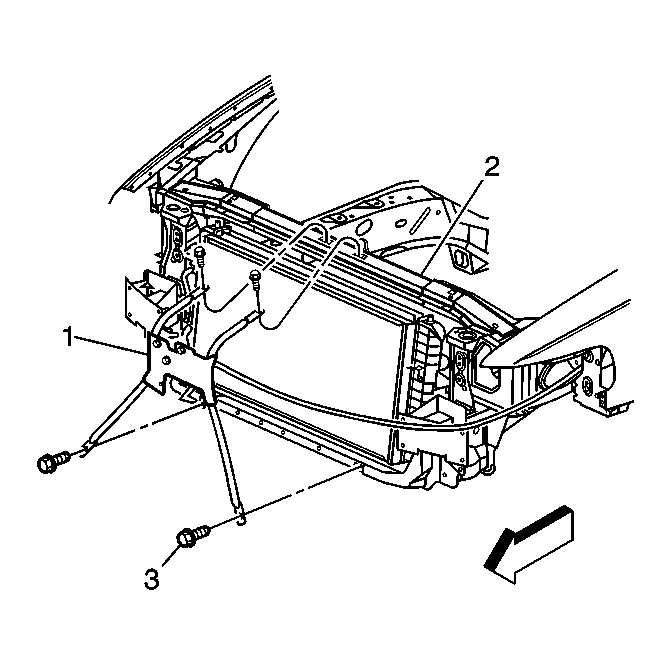

    Fig 1: View Of Hood Latch Support
    GM130486Courtesy of GENERAL MOTORS CORP.
  1. Install the hood latch support (1) to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the bolts (3) to retain the hood latch support (1) to the vehicle.

    Tighten:  Tighten the bolts (3) to 9 N.m (80 lb in).

  3. Install the hood latch. Refer to Hood Latch Replacement  .
  4. Connect the ambient outside temperature sensor electrical connector.
  5. Close the hood.
