Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

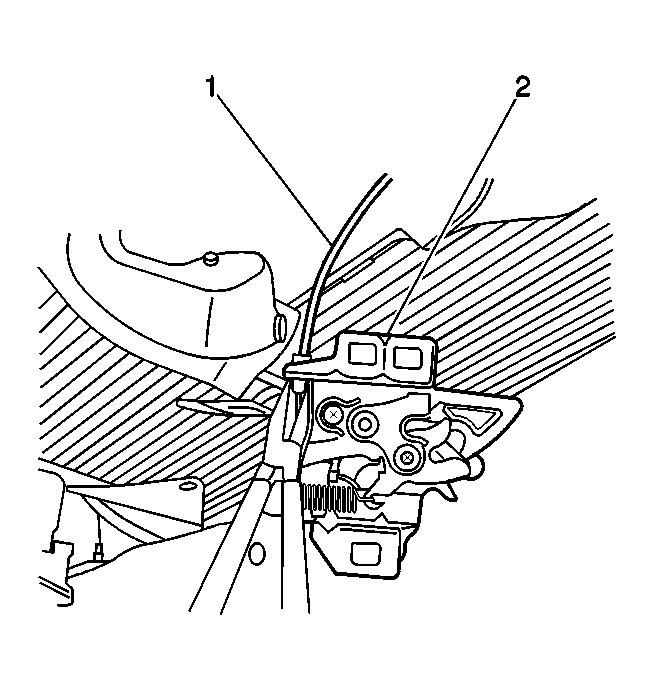

    Fig 1: Identifying Hood Latch & Hood Release Cable
    GM327806Courtesy of GENERAL MOTORS CORP.
  1. Connect the hood release cable (1) to the hood latch (2).

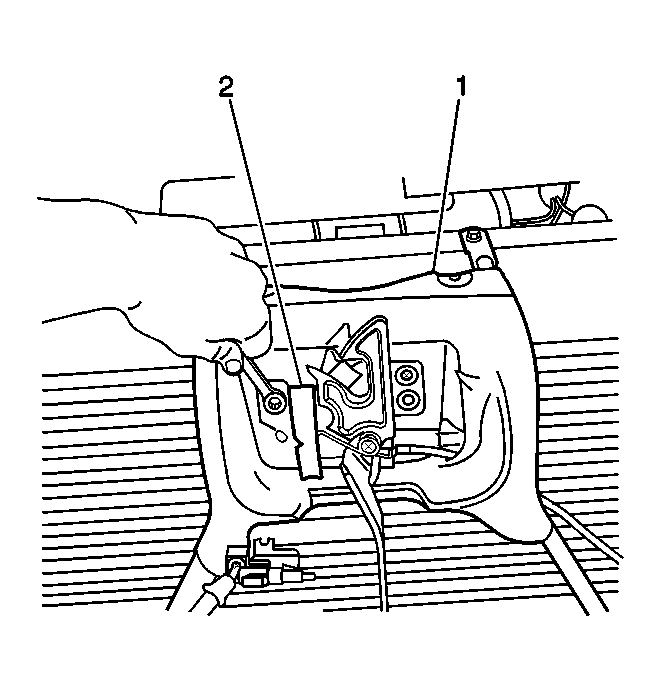

    2. Fig 2: Identifying Hoot Latch & Hood Latch Support
    GM327803Courtesy of GENERAL MOTORS CORP.
  2. Install the hood latch (2) to the hood latch support (1).
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the fasteners in order to secure the hood latch (2) to the hood latch support (1).

    Tighten:  Tighten the fasteners to 9 N.m (80 lb in).

  4. Slowly lower the hood and check the hood latch for the proper alignment.
  5. Adjust the hood latch as necessary. Refer to Hood Latch Adjustment  .
  6. Install the upper filler panel. Refer to Filler Panel Replacement - Upper  .
  7. Close the hood.
