Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

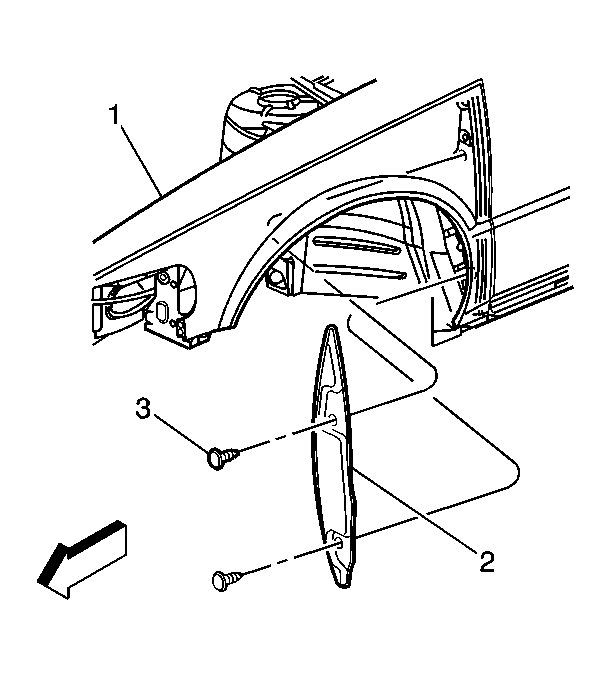

    Fig 1: View Of Front Fender Sound Insulator Retainers
    GM105307Courtesy of GENERAL MOTORS CORP.
  1. Install the front fender sound insulator (2) to the vehicle.
  2. Install the push- in retainers (3) to secure the front fender sound insulator (2).
  3. Install the front wheelhouse panel. Refer to Wheelhouse Liner Replacement - Front  .
