Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

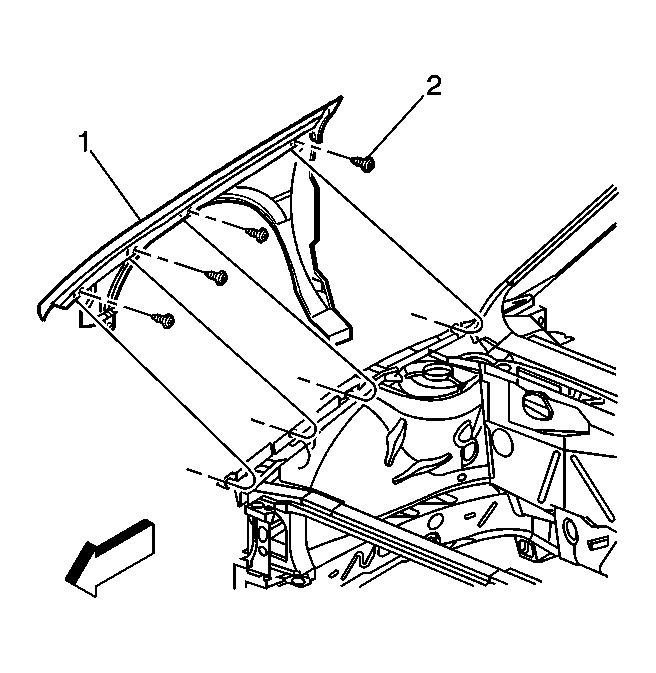

    Fig 1: View Of The Fasteners Attaching The Upper Portion Of The Front Fender
    GM130503Courtesy of GENERAL MOTORS CORP.
  1. Install the front fender (1) to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fasteners (2) in order to secure the upper portion of the front fender (1) to the vehicle.

    Tighten:  Tighten the fasteners (2) to 9 N.m (80 lb in).

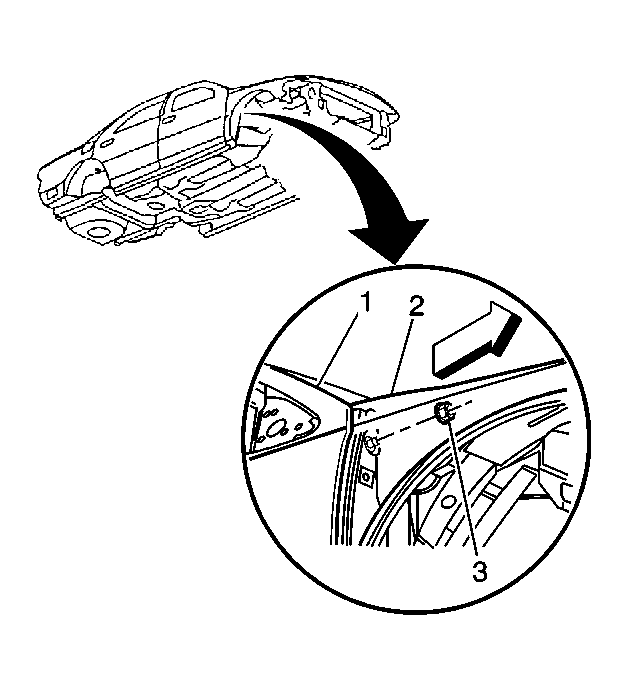

    3. Fig 2: View Of Faster Attaching The Upper Rear Portion Of The Front Fender
    GM130505Courtesy of GENERAL MOTORS CORP.
  3. Install the fastener (3) in order to secure the upper rear portion of the front fender (2) to the vehicle.

    Tighten:  Tighten the fastener (3) to 9 N.m (80 lb in).

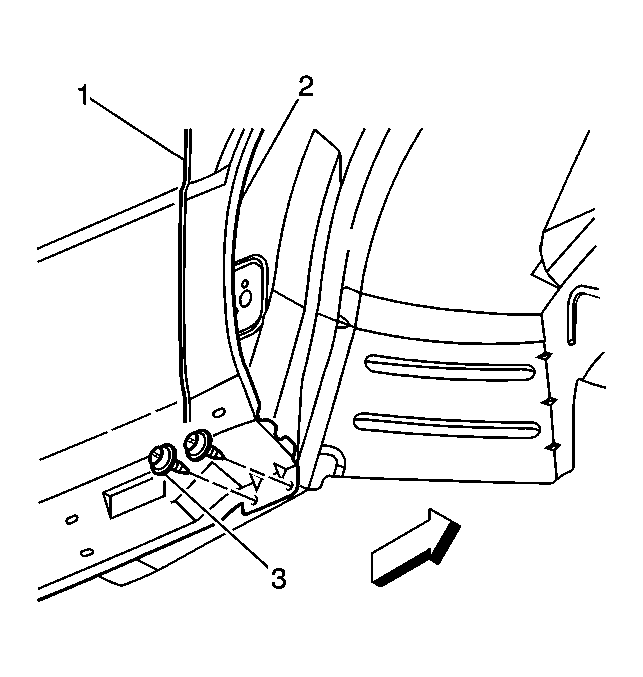

    4. Fig 3: View Of Fastener Attaching The Lower Rear Portion Of The Front Fender
    GM130504Courtesy of GENERAL MOTORS CORP.
  4. Install the fasteners (3) in order to secure the lower rear portion of the front fender (2) to the vehicle.

    Tighten:  Tighten the fasteners (3) to 9 N.m (80 lb in).

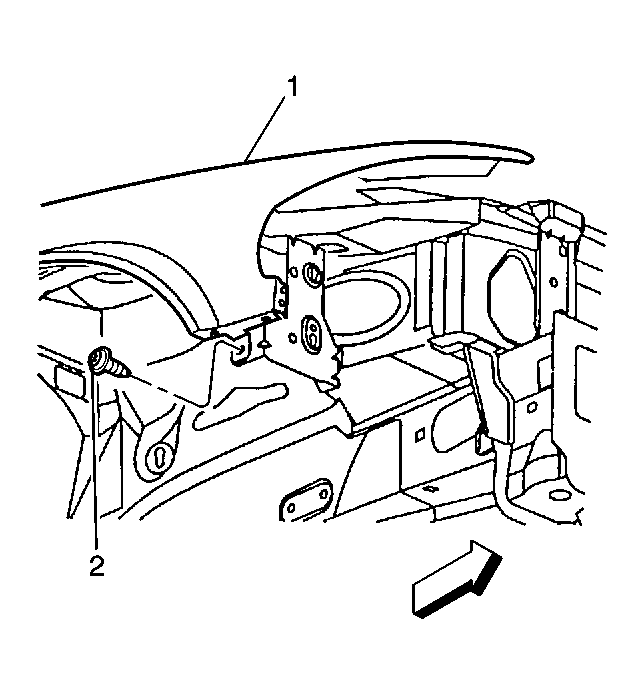

    5. Fig 4: Identifying Front Fender Fastener
    GM130506Courtesy of GENERAL MOTORS CORP.
  5. Install the fasteners (2) in order to secure the lower front portion of the front fender (1).

    Tighten:  Tighten the fasteners (2) to 9 N.m (80 lb in).

  6. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper .
  7. Install the hood. Refer to Hood Replacement  .
  8. Install the front fender to hood seal. Refer to Seal Replacement - Fender to Hood  .
  9. Install the rear outer hood seal. Refer to Seal Replacement - Hood Rear  .
  10. Install the front wheelhouse panel. Refer to Wheelhouse Liner Replacement - Front  .
  11. Install the front fender sound insulator. Refer to Fender Sound Insulator Replacement - Front  .
  12. Install the rocker panel molding. Refer to Molding Replacement - Rocker Panel .
  13. Install the headlamp. Refer to Headlamp Replacement (SLS, w/o TT6, TT7 or TT8) or Headlamp Replacement (SLS and STS w/TT6, TT7 or TT8) in Lighting Systems.
