Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

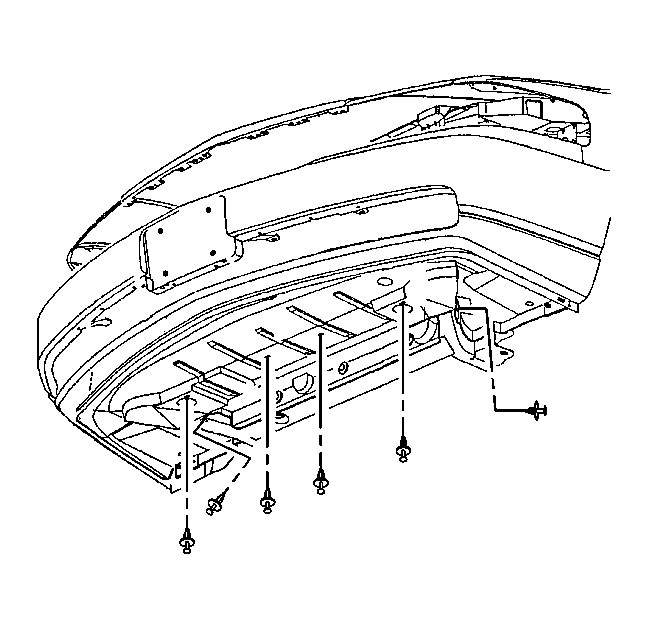

    Fig 1: View Of Front Air Deflector Retainers
    GM338353Courtesy of GENERAL MOTORS CORP.
  1. Install the front air deflector.
  2. Install the push in retainers that retain the front air deflector to the vehicle.
  3. Lower the vehicle.
