Sunroof Module Connector End View C1

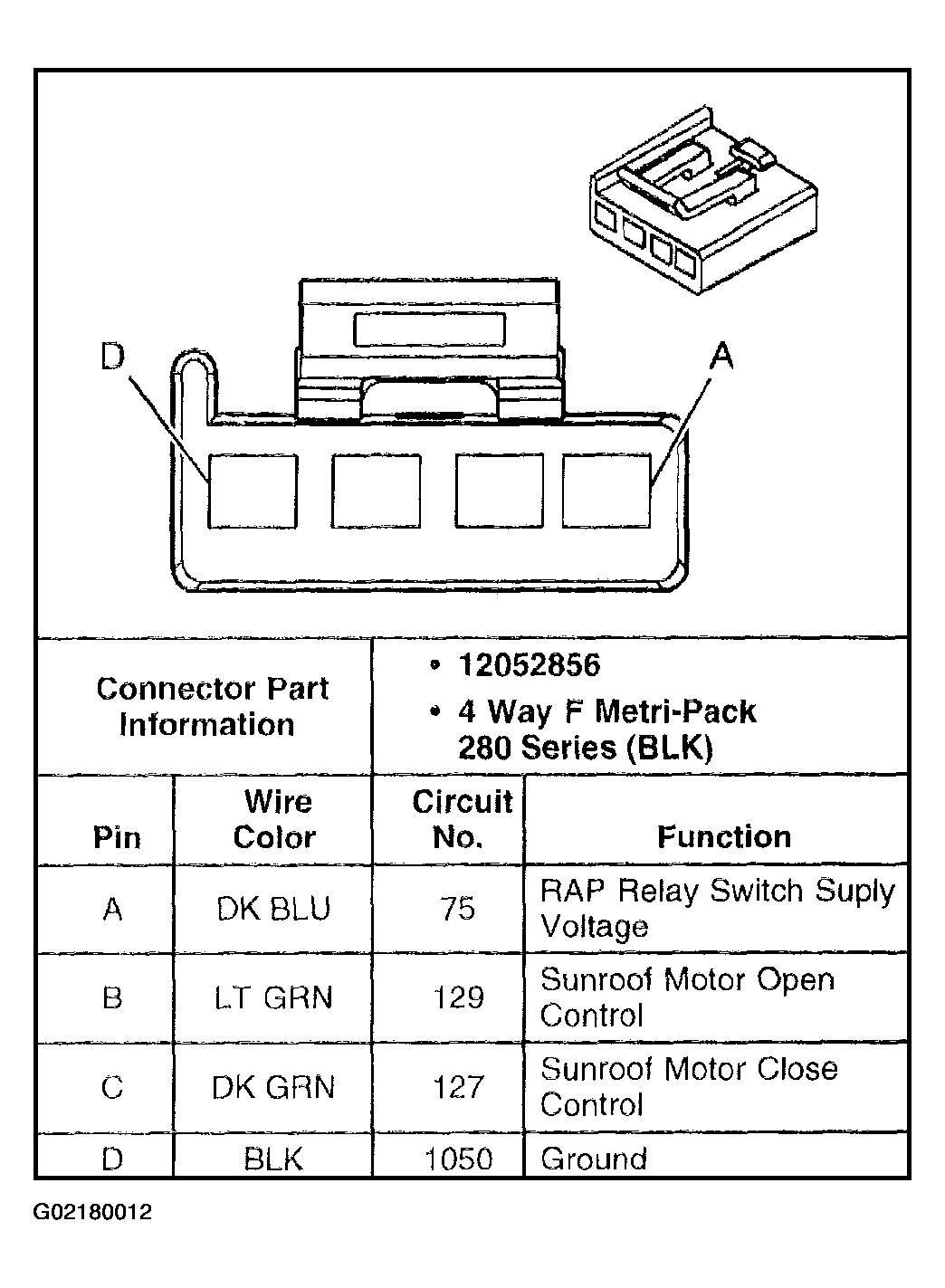

Fig 1: Sunroof Module C1

G02180012

Courtesy of GENERAL MOTORS CORP.
