Diagnostic System Check - Automatic Transmission Shift Lock Control

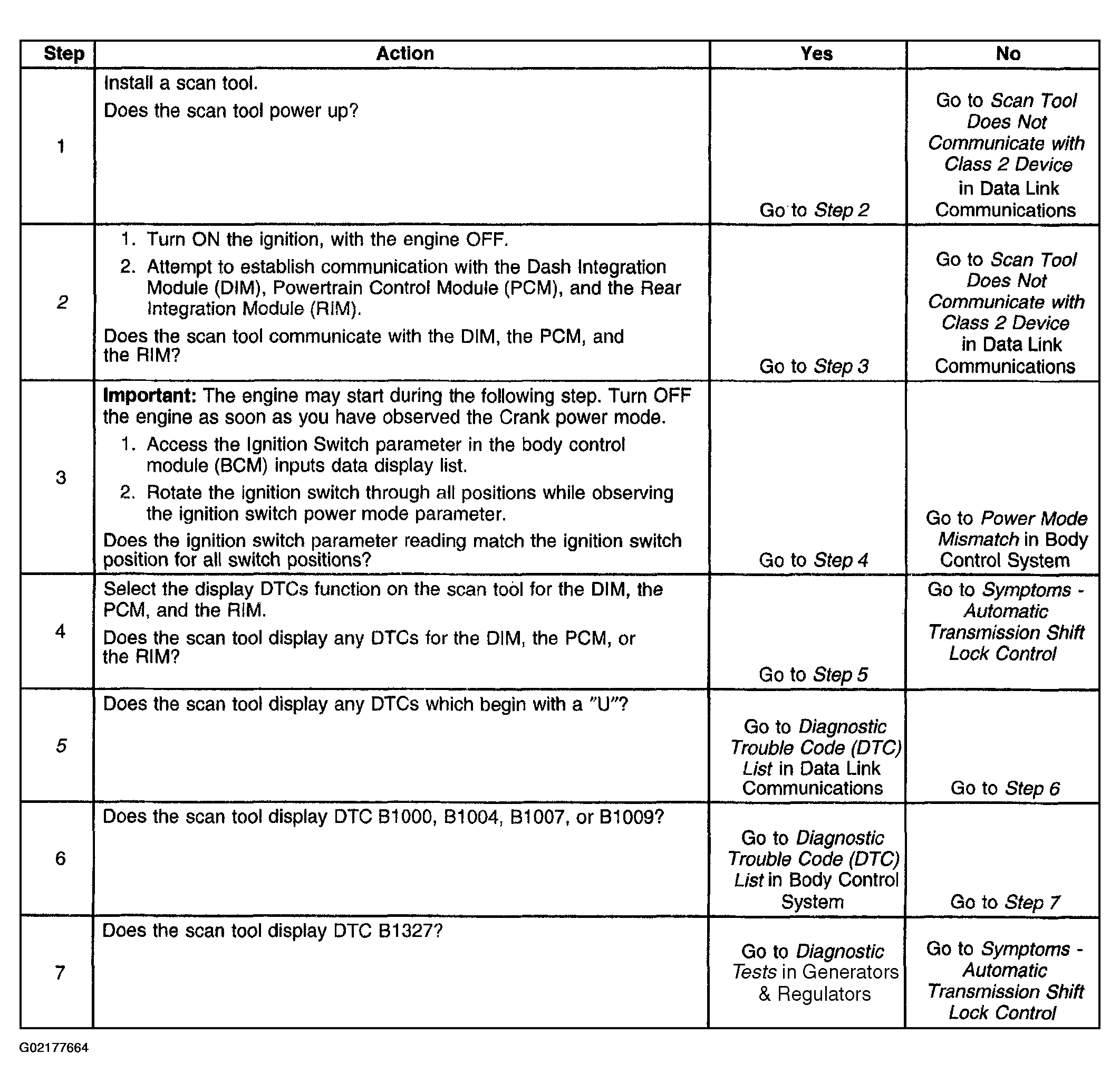

Fig 1: Diagnostic System Check - Automatic Transmission Shift Lock Control

G02177664

Courtesy of GENERAL MOTORS CORP.
