Transaxle Brace: Installation

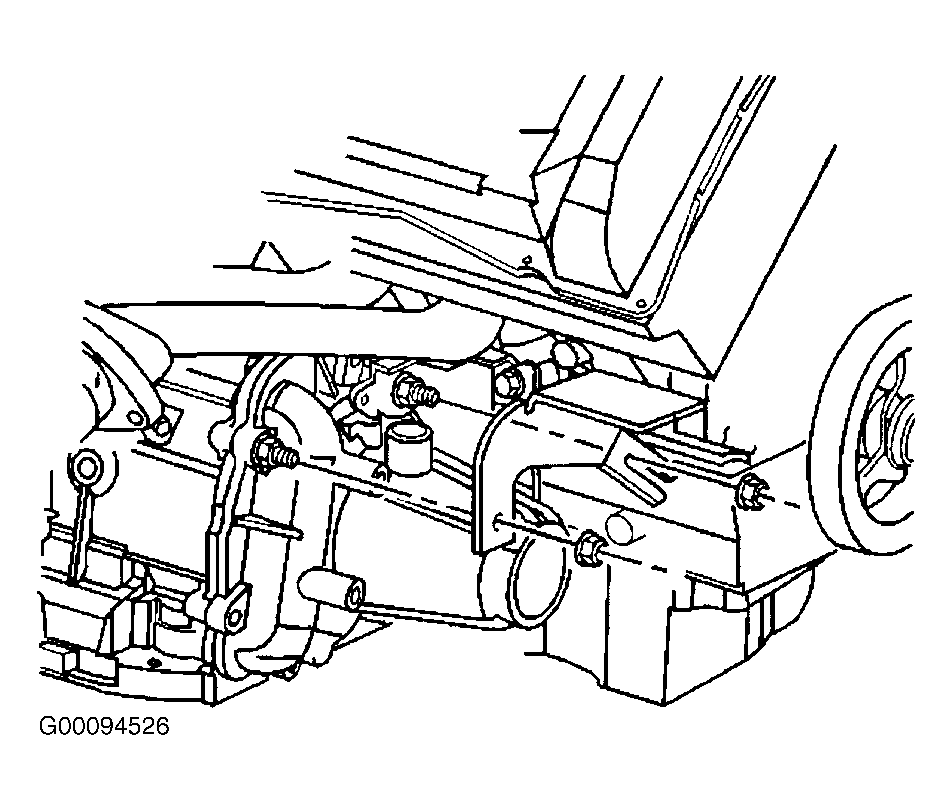

Install the engine to transaxle brace (2). Install the fasteners (1 and 3) into the engine and transaxle. See Figure . Tighten the transaxle brace bolts to specification. Install the heat shield. See Figure . Install the heat shield fasteners. Tighten the heat shield nuts to specification. See TORQUE SPECIFICATIONS  . Install the right front tire.
