Shift Cable (Console Shift): Installation

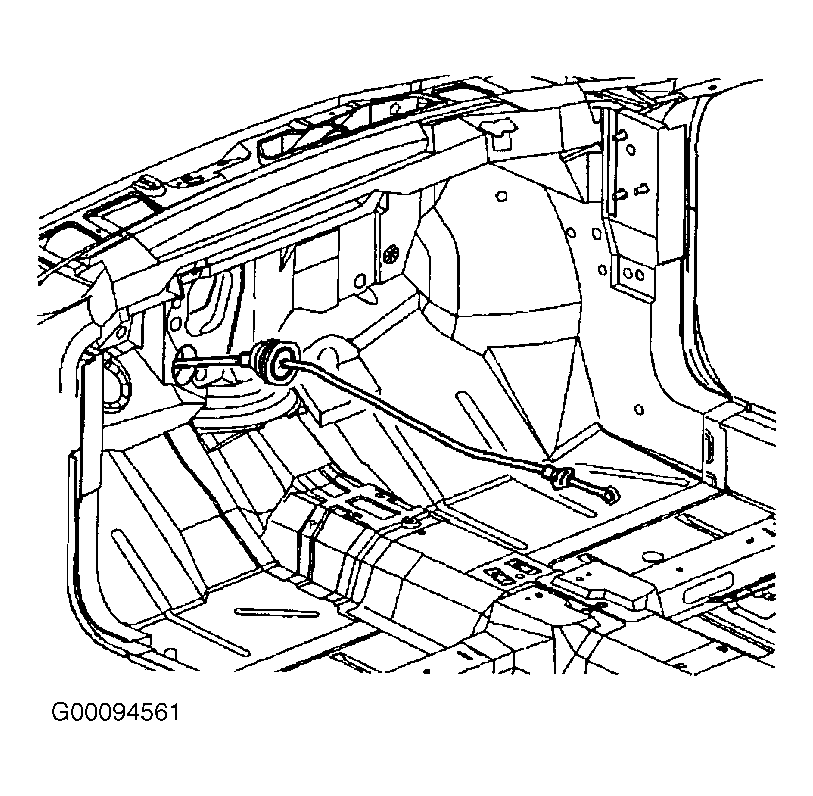

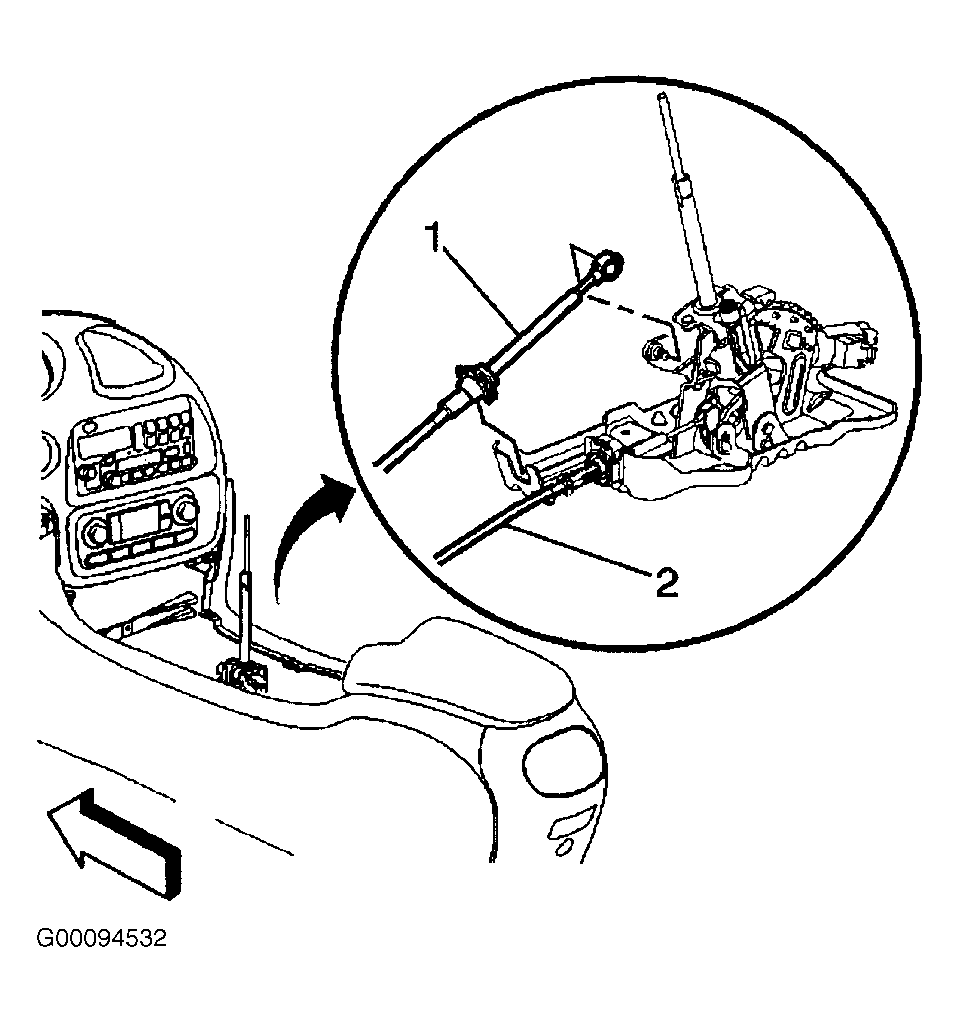

  1. Install the shift cable through the cowl panel and seat the grommet. See Figure . Slide the shift cable (1) fully into the console until it snaps into place. See Figure . Connect the shift cable terminal to the shift lever pin.
  2. Install the console trim plate. See appropriate SHIFT INTERLOCK SYSTEMS article. Install the left console trim panel.

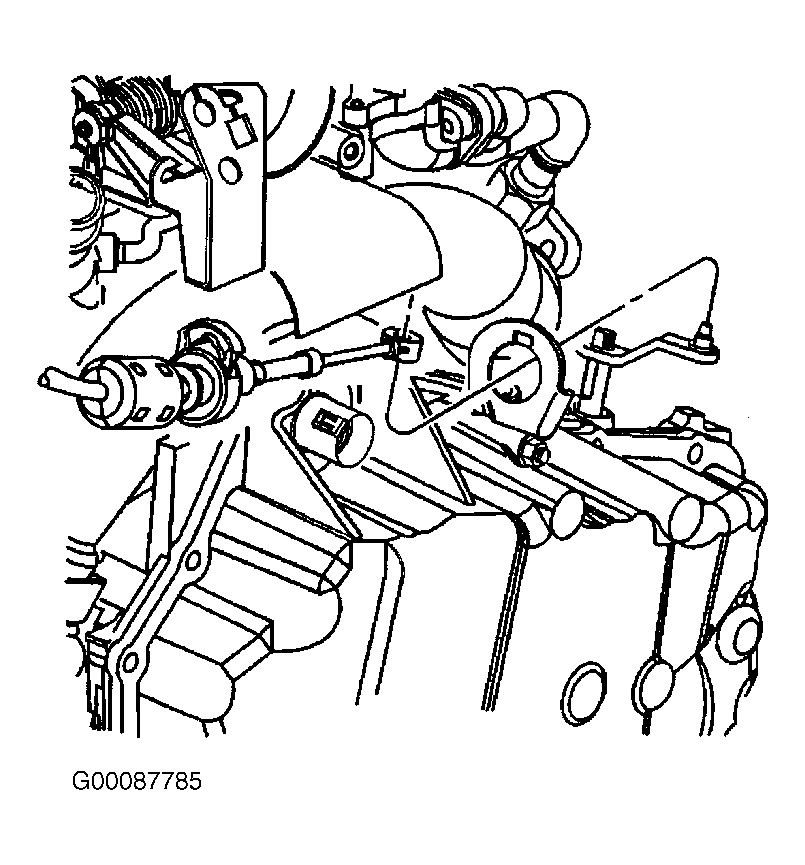

  3. Insert the shift cable into the bracket. See Figure . Connect the shift cable terminal to the transaxle manual shift lever pin.

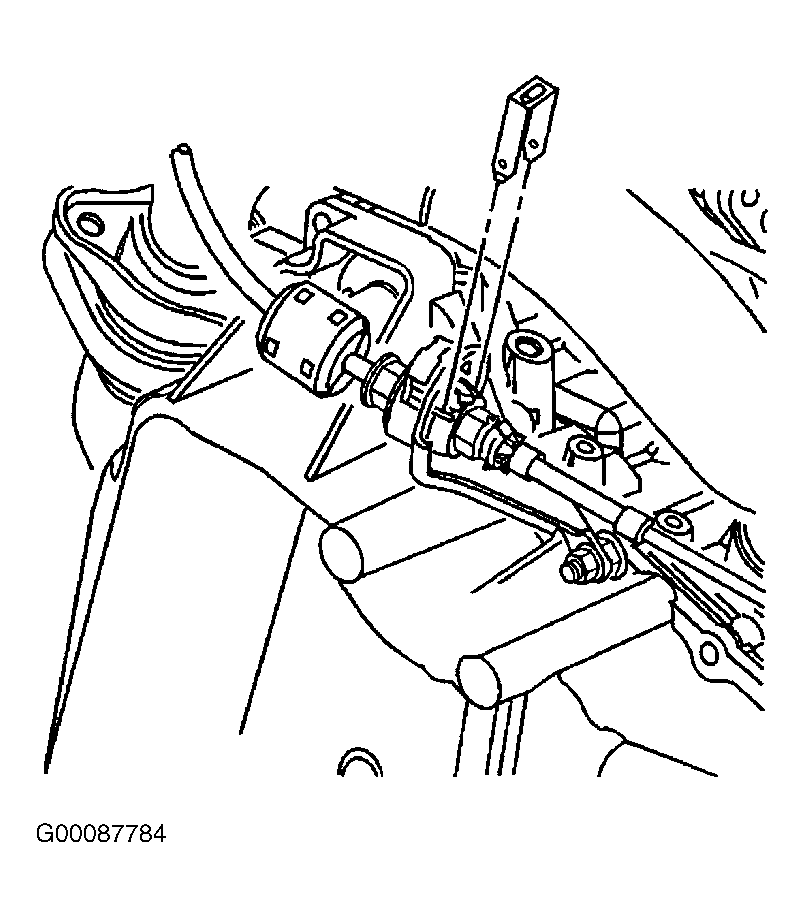

  4. Insert the retainer to the shift cable mechanism. See Figure . Adjust the shift cable. See SHIFT CABLE  under ADJUSTMENTS.
