Transmission Internal Mode Switch Logic

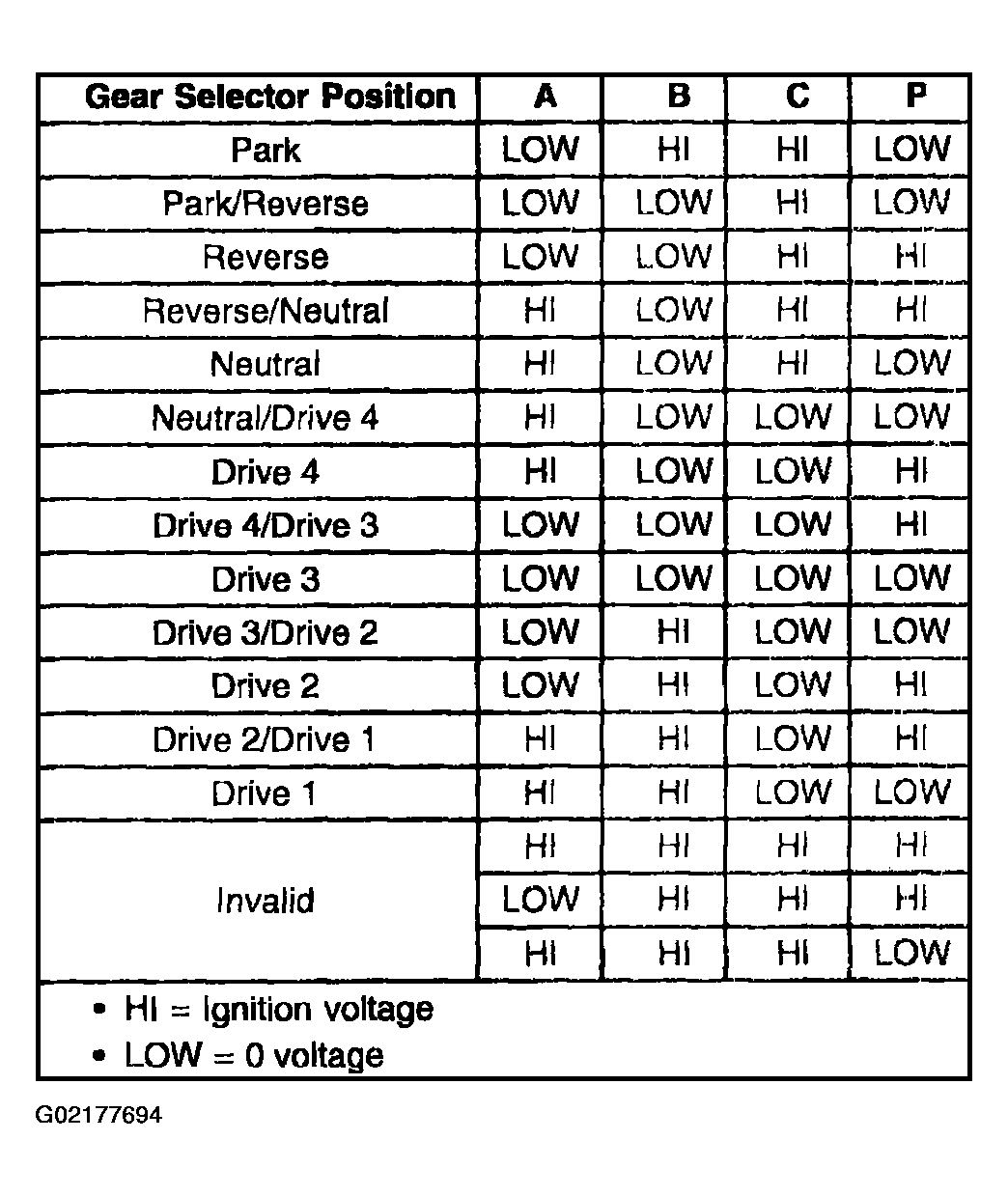

Fig 1: Transmission Internal Mode Switch Logic Specifications

G02177694

Courtesy of GENERAL MOTORS CORP.
