Transmission Fluid Temperature (TFT) Sensor Specifications

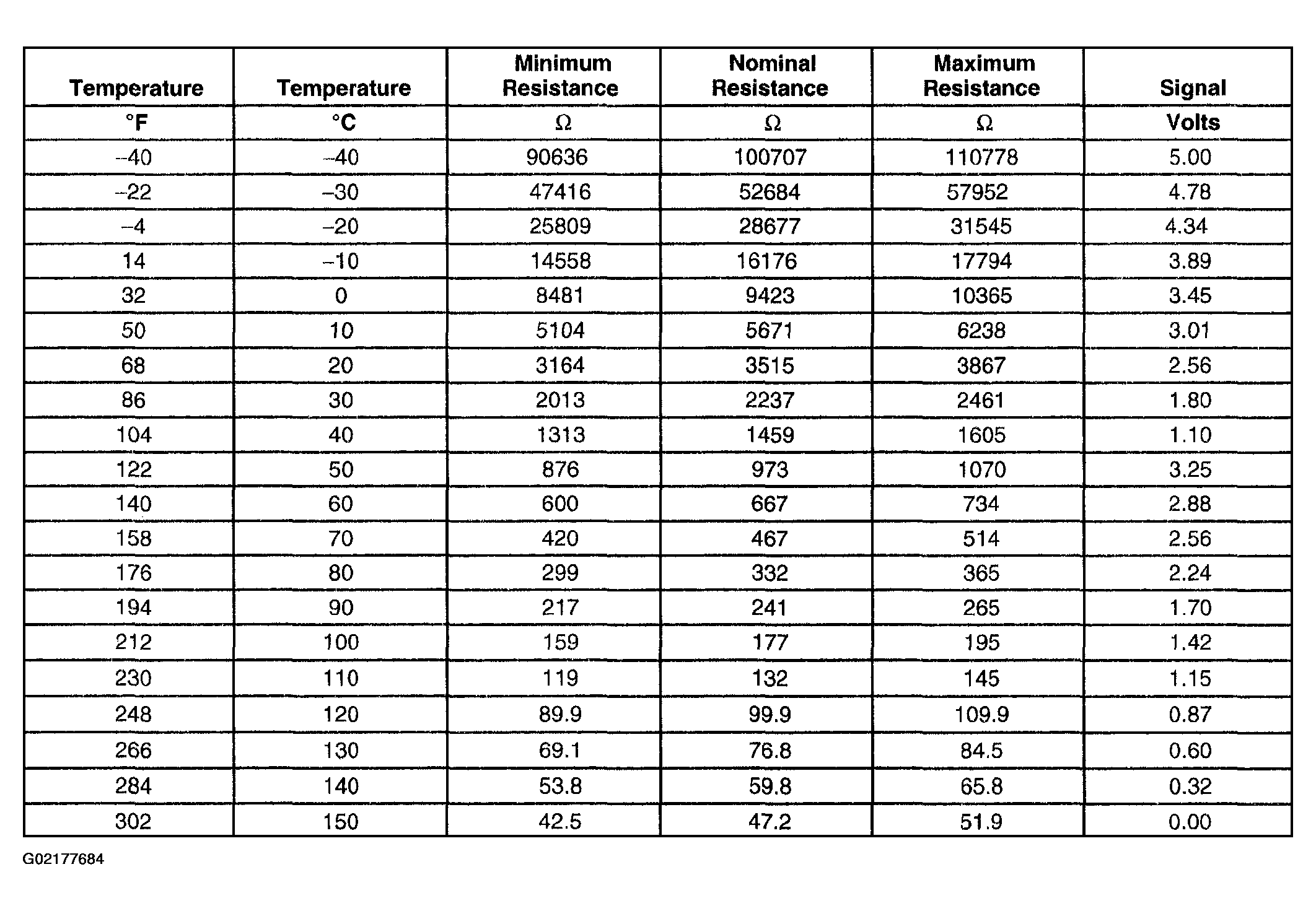

Fig 1: Transmission Fluid Temperature Sensor Specifications

G02177684

Courtesy of GENERAL MOTORS CORP.
