Automatic Transaxle - 4T80-E
>>
Specifications
>>
Component Resistance
Component Resistance

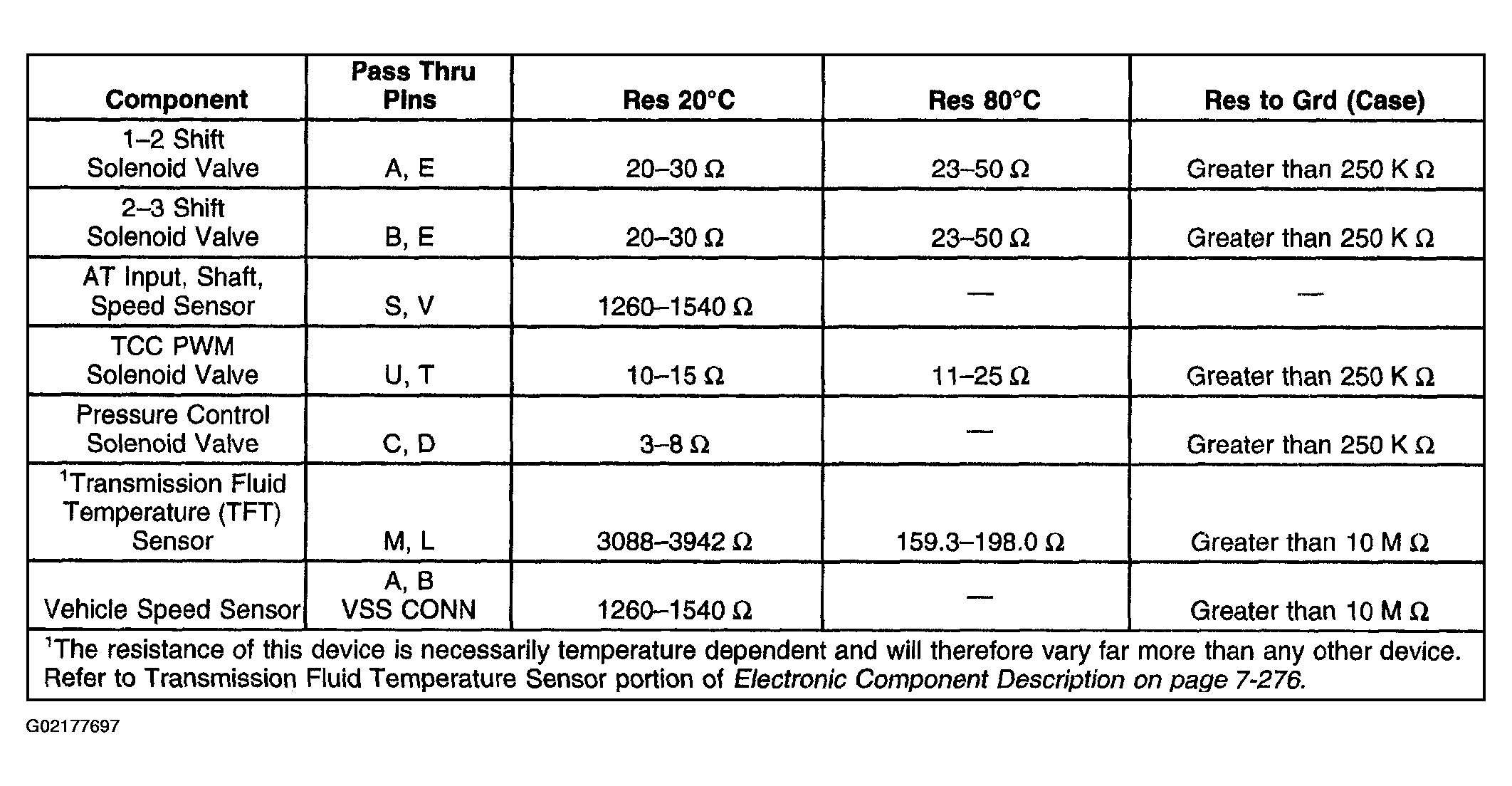

Fig 1: Component Resistance Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
