Automatic Transmission Electronic Component Views

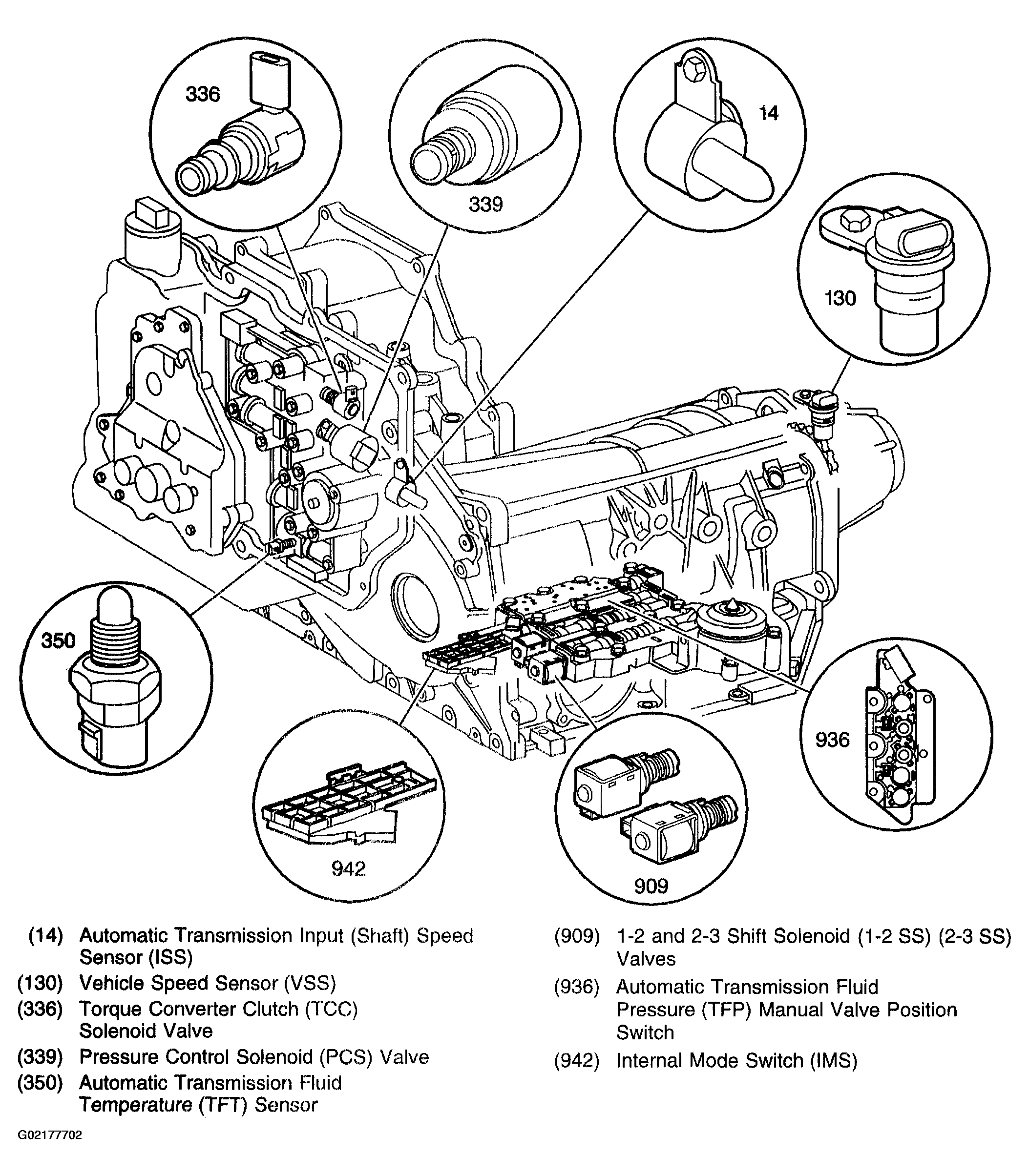

Fig 1: Electronic Component Views

G02177702

Courtesy of GENERAL MOTORS CORP.
