Rear Toe Adjustment

IMPORTANT: Complete the left and right rear toe adjustments separately, per wheel. Use the following procedure.

Loosen the cam nut (1) on the adjustment link.

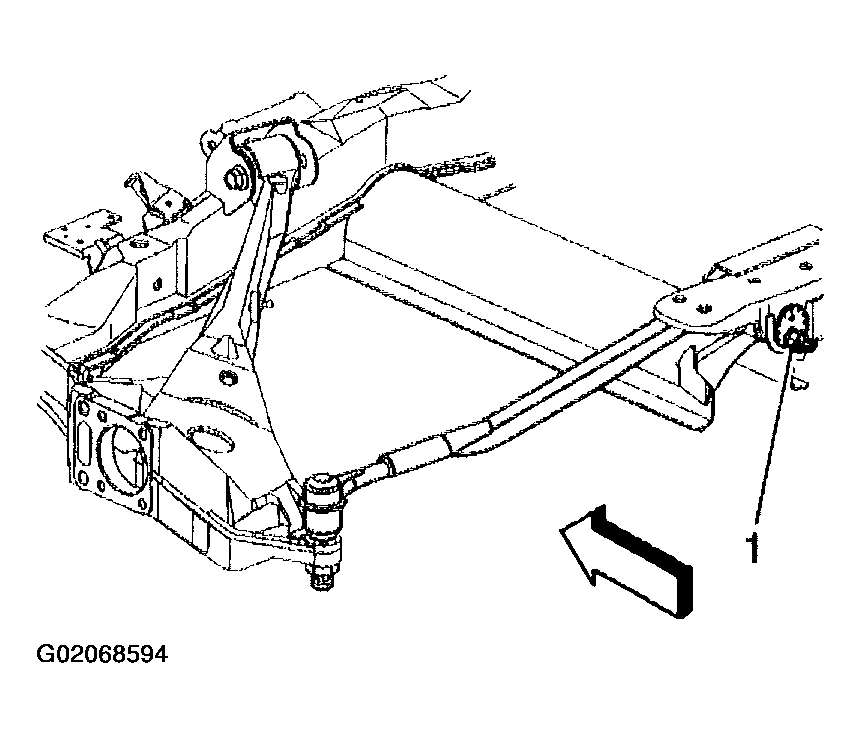

Fig 1: Locating Cam Nut On Adjustment Link
Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
In order to adjust the toe, rotate the cam bolt using an 18 mm socket. Refer to WHEEL ALIGNMENT SPECIFICATIONS .
Tighten

Tighten the cam nut to 75 N.m (55 lb ft).
