Removal Procedure

  1. Remove the rear shelf panel. Refer to INTERIOR TRIM  in Interior Trim.
  2. Remove the fastener (1) that retains the child tether anchor (2) that is being serviced.
  3. Remove the child tether anchor (2) from the vehicle.

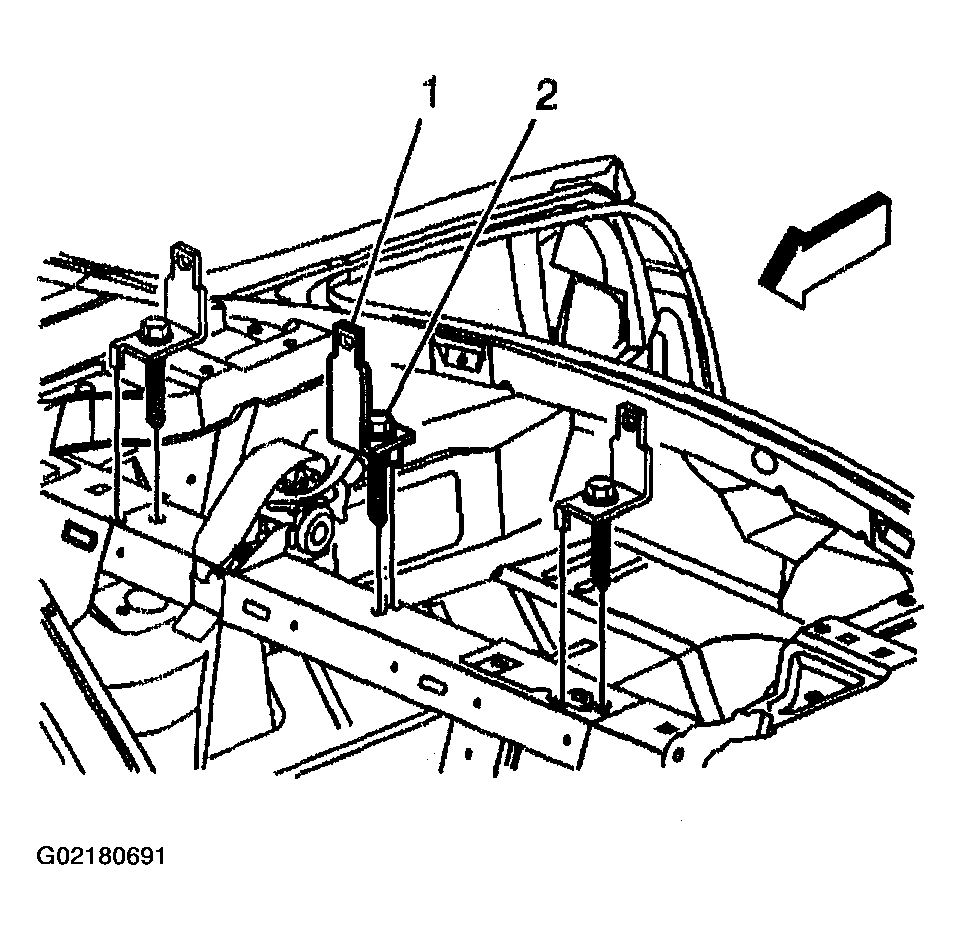

    Fig 1: Removing Child Tether Anchor & Fastener
    G02180691Courtesy of GENERAL MOTORS CORP.
