Removal Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

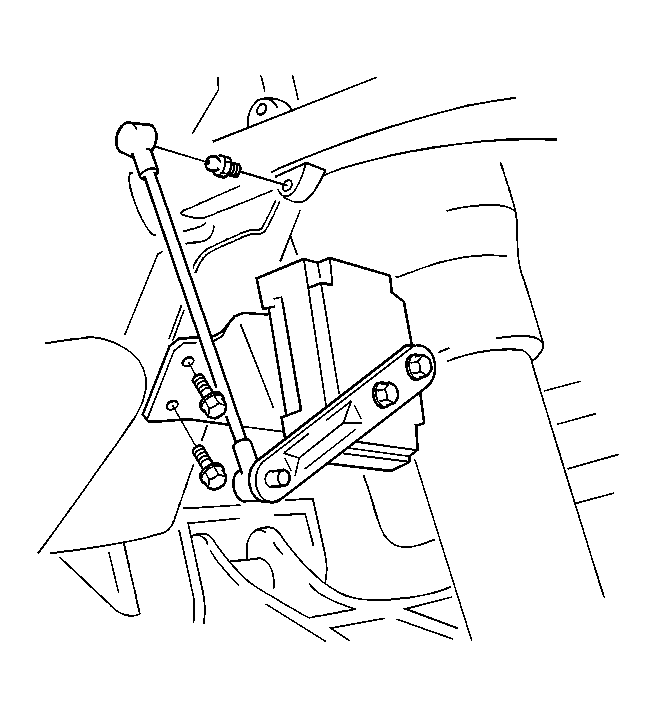

    2. Fig 1: Identifying Height Sensor Bracket & Nuts
    GM280213Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the link from the height sensor actuating arm and the suspension control arm.
  3. Disconnect the height sensor connector from the vehicle harness connector.
  4. Remove the four nuts and the bracket from the height sensor.
