Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

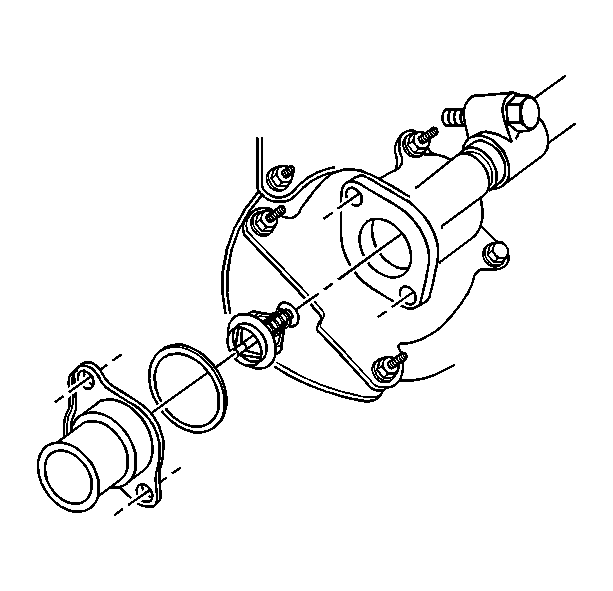

Fig 1: View of Thermostat & Gasket

Courtesy of GENERAL MOTORS CORP.

Install the thermostat and a new gasket into the water pump housing.
Install the thermostat housing.

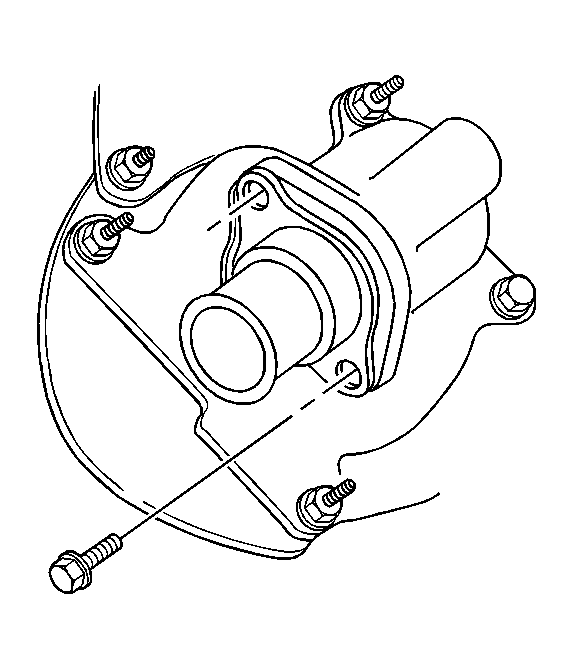

Fig 2: Identifying Thermostat Housing to Water Pump Inlet Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the thermostat housing bolts.
Tighten: Tighten the thermostat housing bolts to 10 N.m (89 lb in).
Position the J 38185 to the clamp in order to connect the radiator outlet hose to the thermostat housing.
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls-4.6L.
Fill the cooling system. Refer to Draining and Filling Cooling System .
