Remove Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Remove the upper filler panel. Refer to Filler Panel Replacement - Upper in Body Front End.

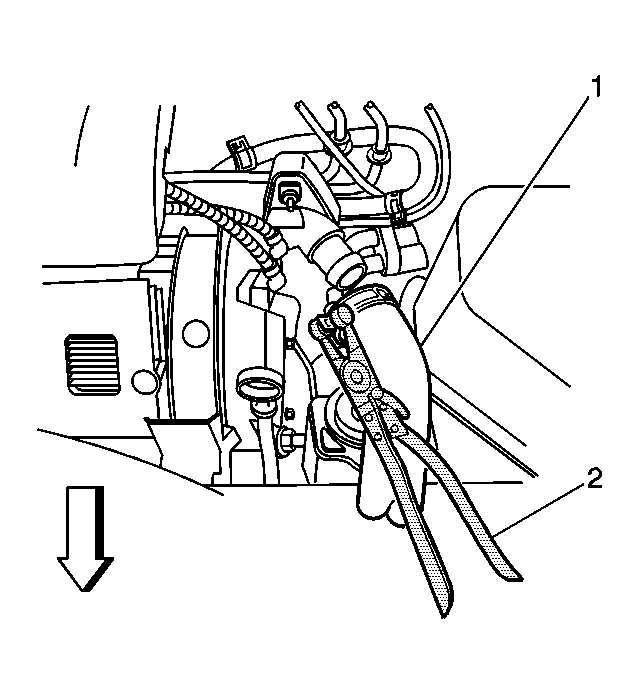

    3. Fig 1: Removing Hose Clamp
    GM518338Courtesy of GENERAL MOTORS CORP.
  3. Position the J 38185  (2) to the clamp in order to remove the inlet radiator hose (1) from the water housing crossover.

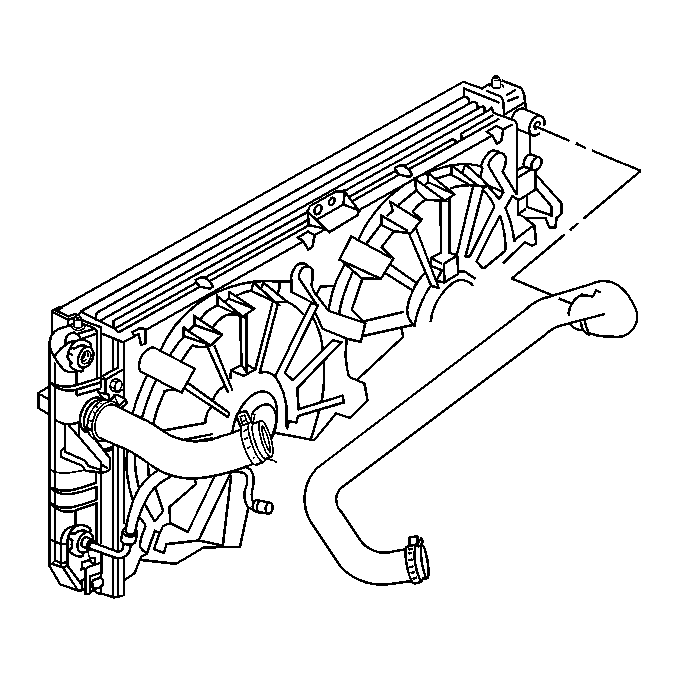

    4. Fig 2: View of Inlet Radiator Hose
    GM130760Courtesy of GENERAL MOTORS CORP.
  4. Position the J 37097-A  to the clamp in order to remove the inlet radiator hose from the radiator.
  5. Remove the inlet radiator hose from the vehicle.
