Suspension Controls Component Views

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

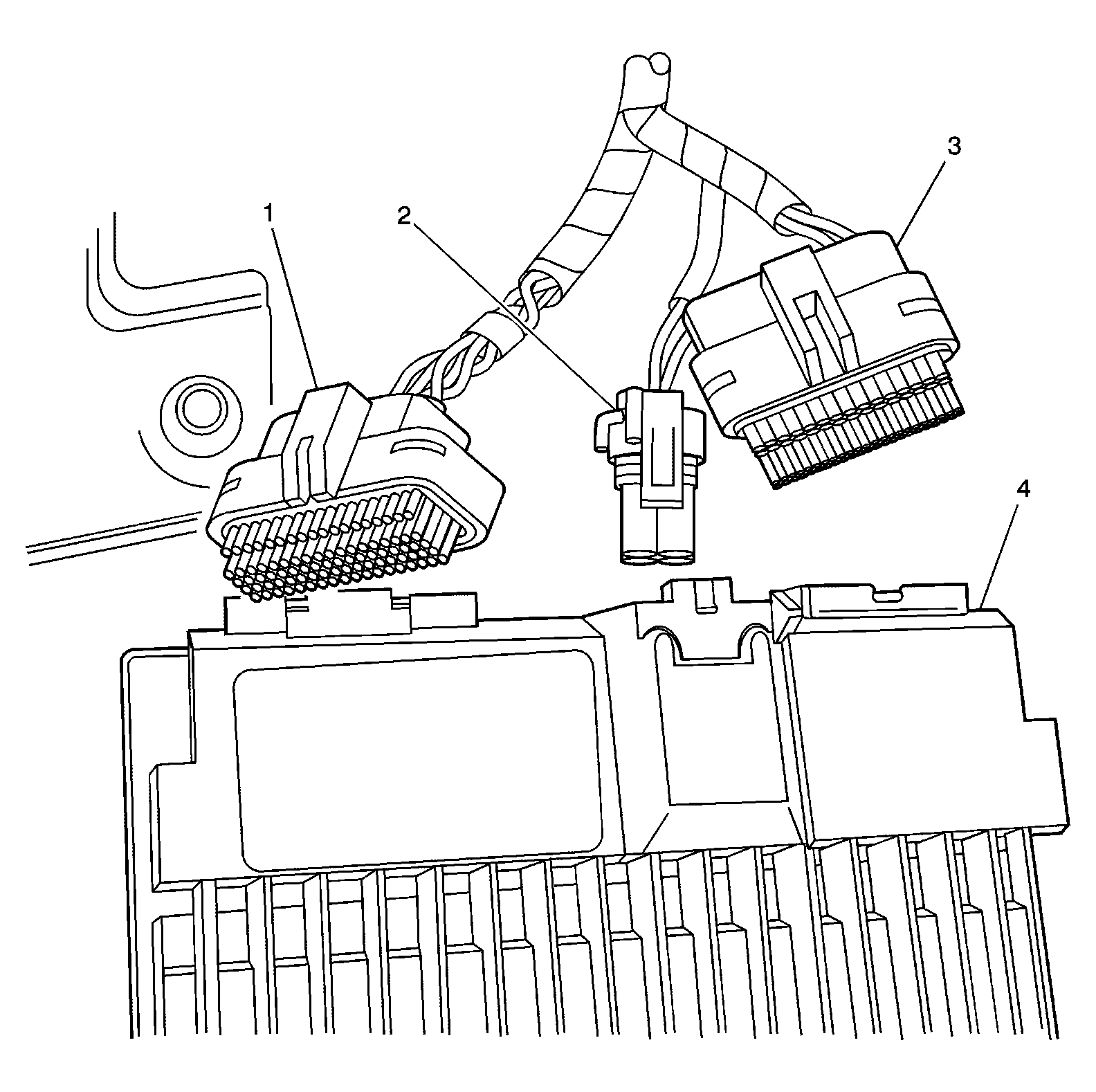

Fig 1: Behind the Rear Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Suspension Control (ESC) Module Connector C1
2	Electronic Suspension Control (ESC) Module Connector C3
3	Electronic Suspension Control (ESC) Module Connector C2
4	Electronic Suspension Control (ESC) Module

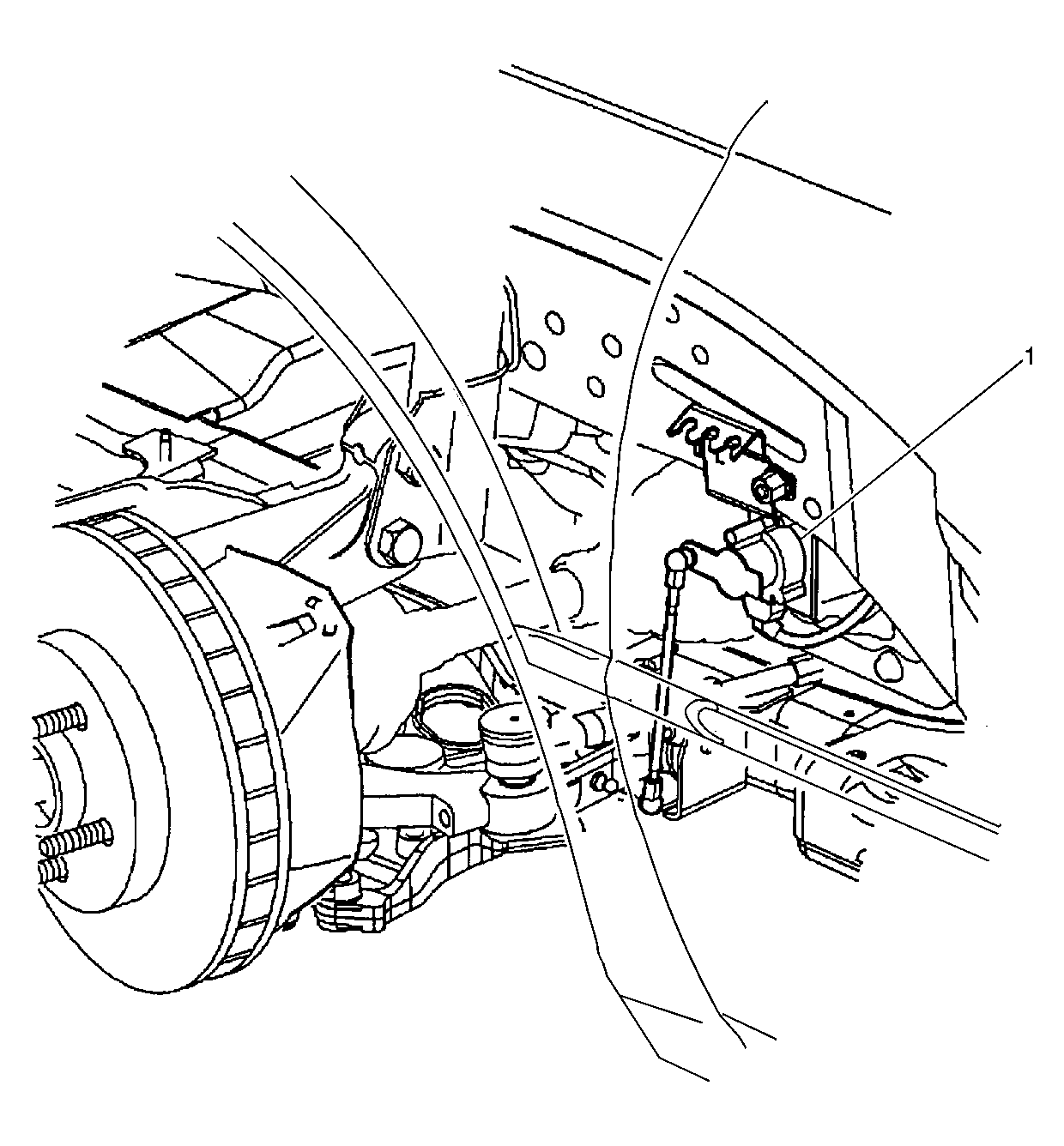

Fig 2: Front Position Sensors Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Position Sensor - LF (RF Similar)

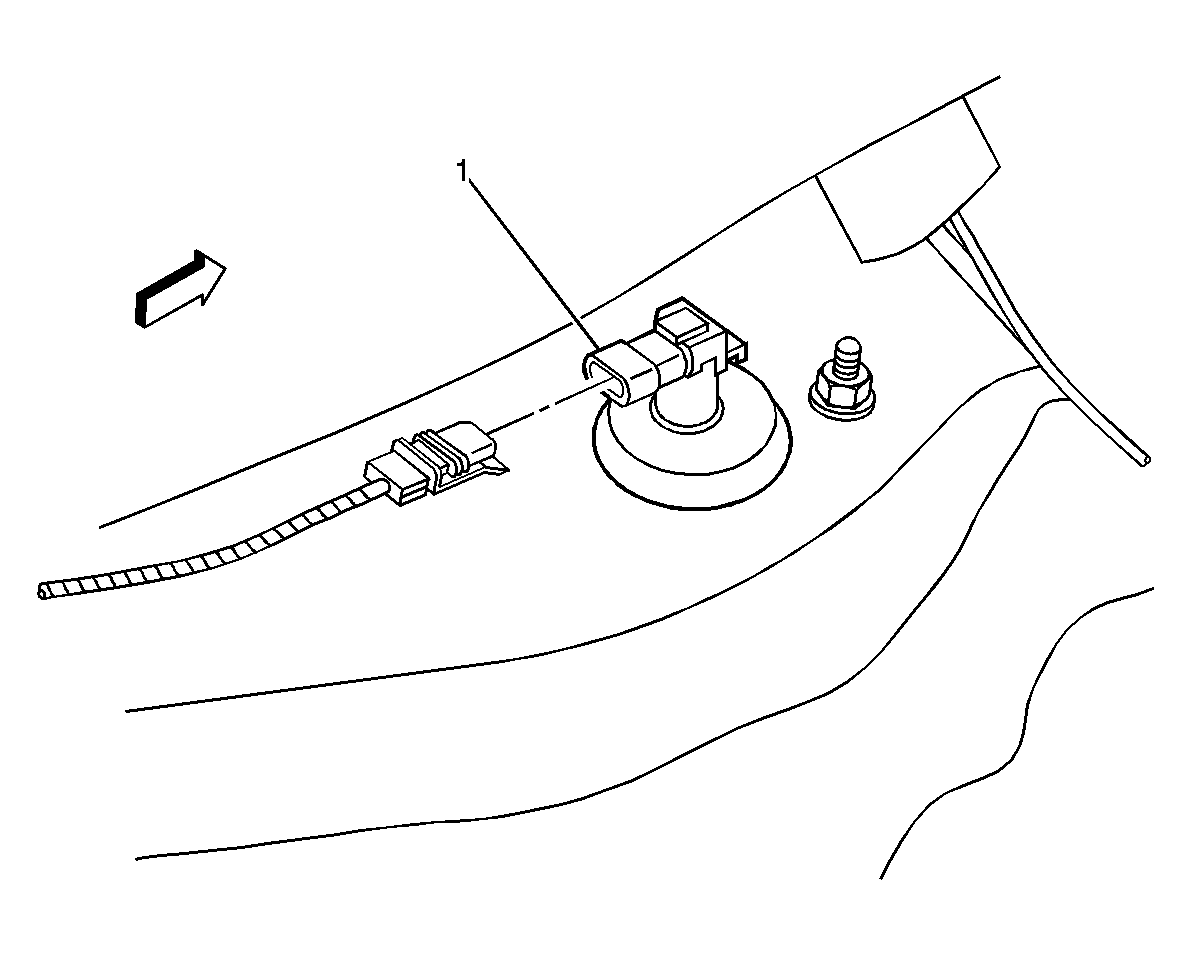

Fig 3: Front Suspension Damper Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Damper - LF (RF Similar)

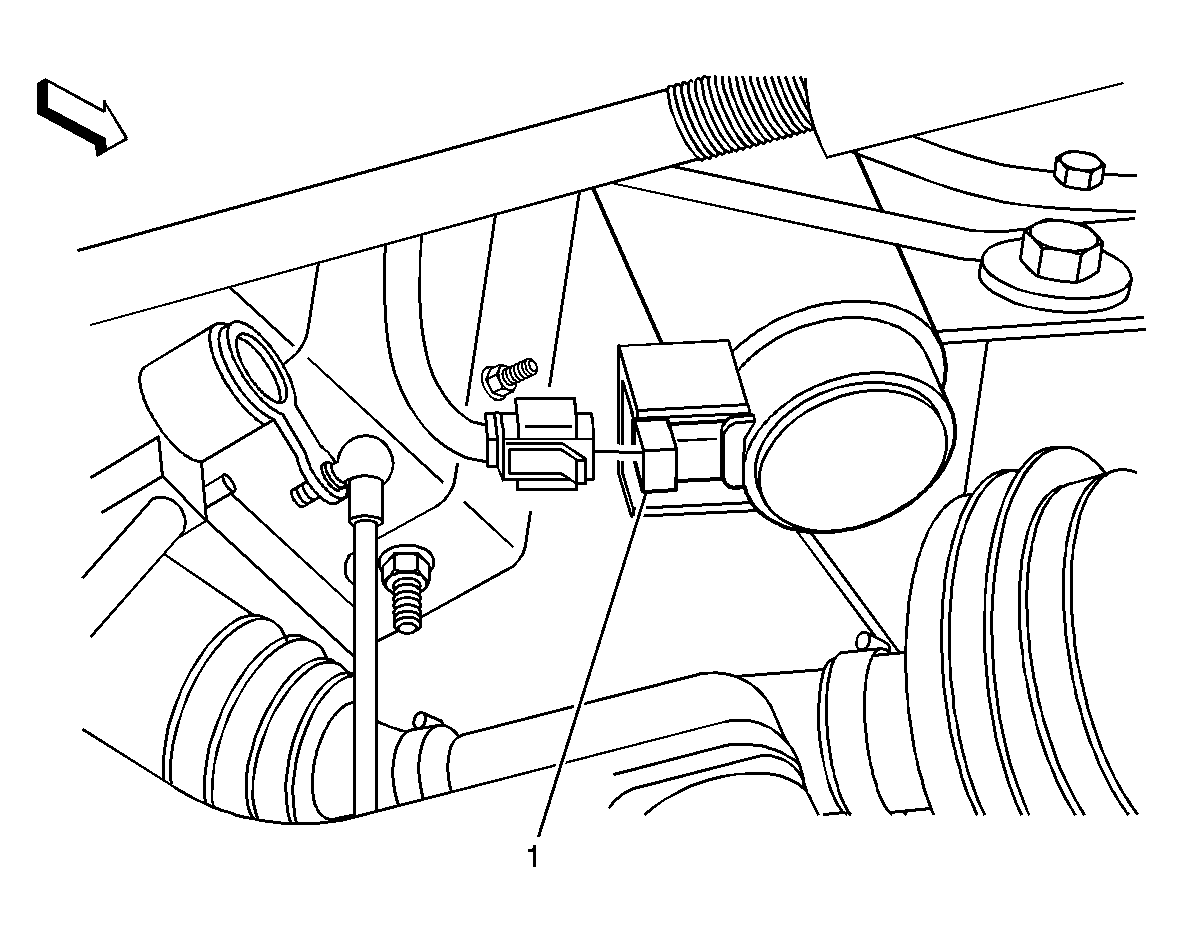

Fig 4: Rear Suspension Damper Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Damper - LR (RR Similar)

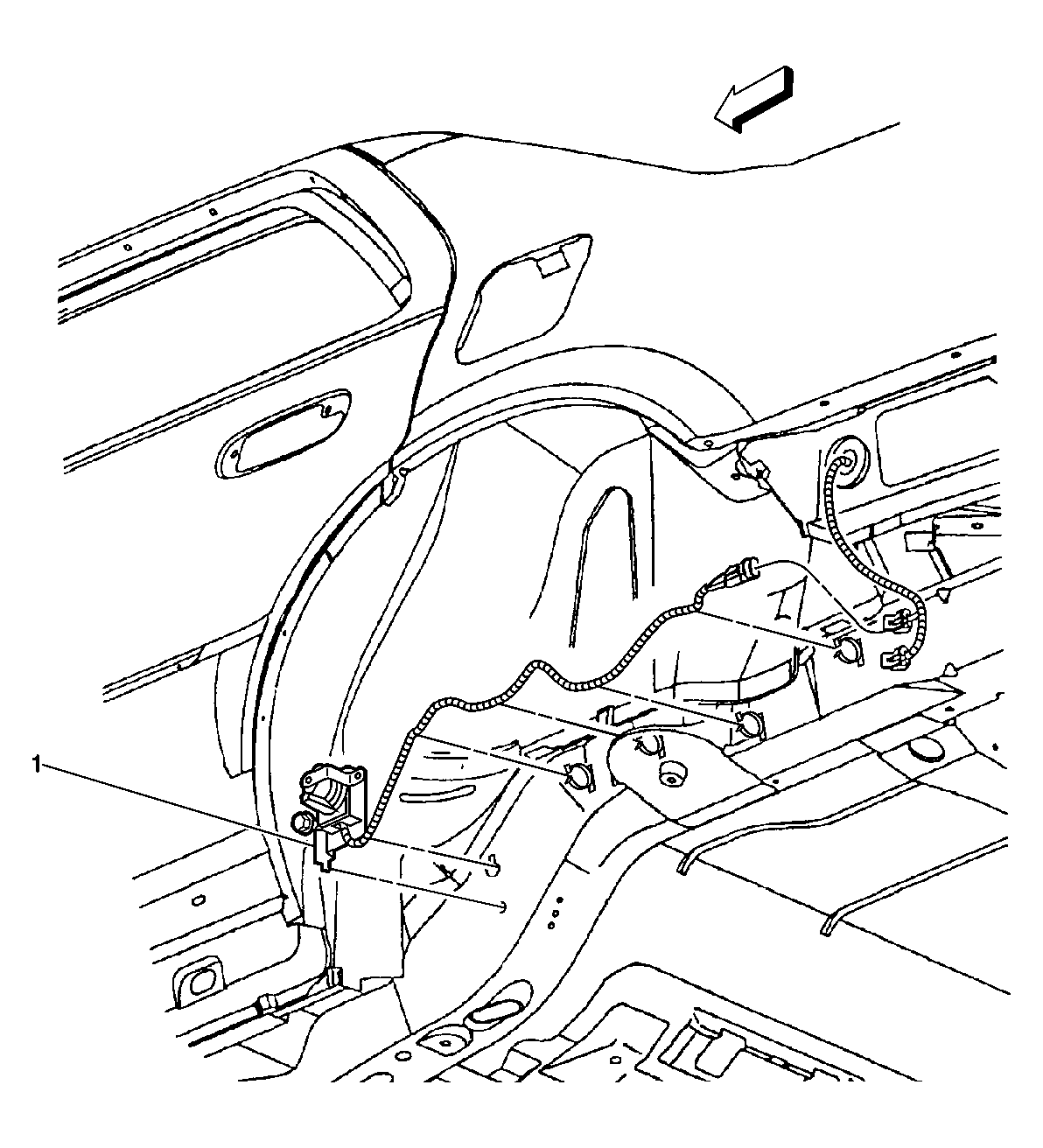

Fig 5: Wheelhouse, Rear Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Position Sensor - LR (RR Similar)
