Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

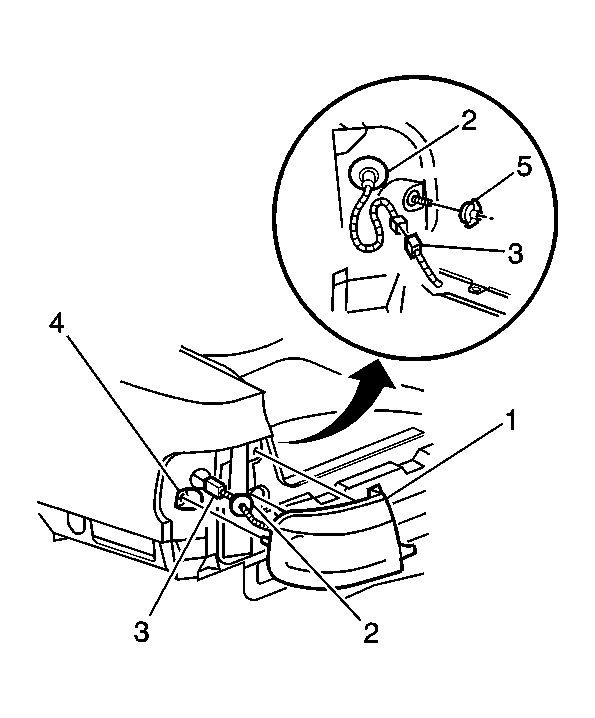

    Fig 1: Expanded View of Taillamp Connector, Grommet, & Fasteners
    GM105155Courtesy of GENERAL MOTORS CORP.
  1. Route the taillamp connector (3) and the grommet (2) through the body.
  2. Verify that the grommet (2) is fully seated in the body.
  3. Install the taillamp (1) to the body.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the fasteners (5) in order to secure the taillamp (1) to the body.

    Tighten:  Tighten the fasteners to 4.5 N.m (40 lb in).

  5. Connect the taillamp connector (3).
  6. Install the rear compartment side trim. Refer to Compartment Side Trim Replacement - LH Rear or Compartment Side Trim Replacement - RH Rear in Body Rear End.
  7. Close the rear compartment lid.
