Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

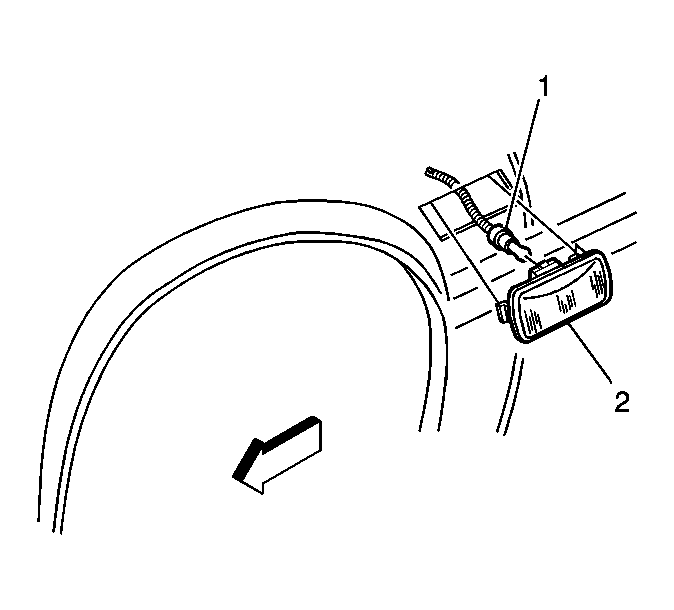

    Fig 1: Identifying Lamp Socket & Repeater Lamp
    GM550218Courtesy of GENERAL MOTORS CORP.
  1. Connect the lamp socket (1) to the repeater lamp (2).
  2. Install the repeater lamp (2) to the front fender.
  3. Press the rear of the repeater lamp (2) in order to engage the tab with the front fender (1).
  4. Install the wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front in Body Front End.
