Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

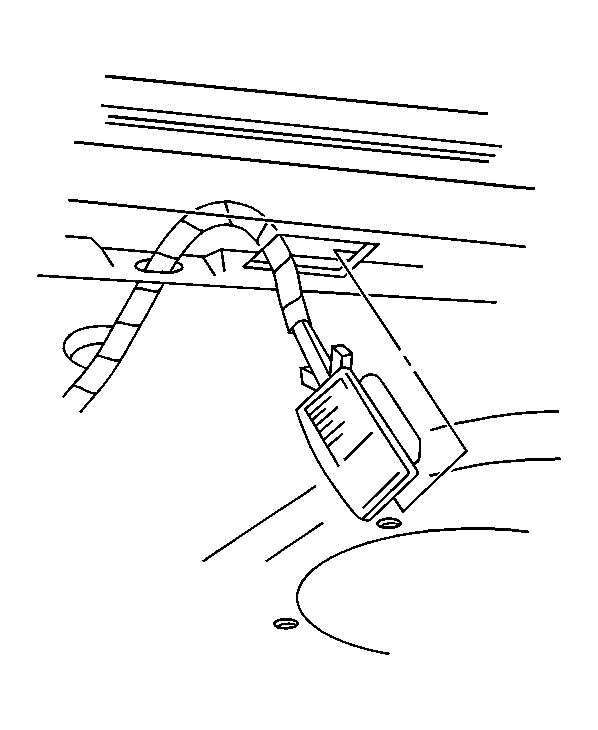

    Fig 1: View of Rear Compartment Lamp
    GM455614Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb into the socket.
  2. Connect the electrical connector.
  3. Install the rear compartment lamp by pressing into place until fully seated.
  4. Close the rear compartment.
