Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

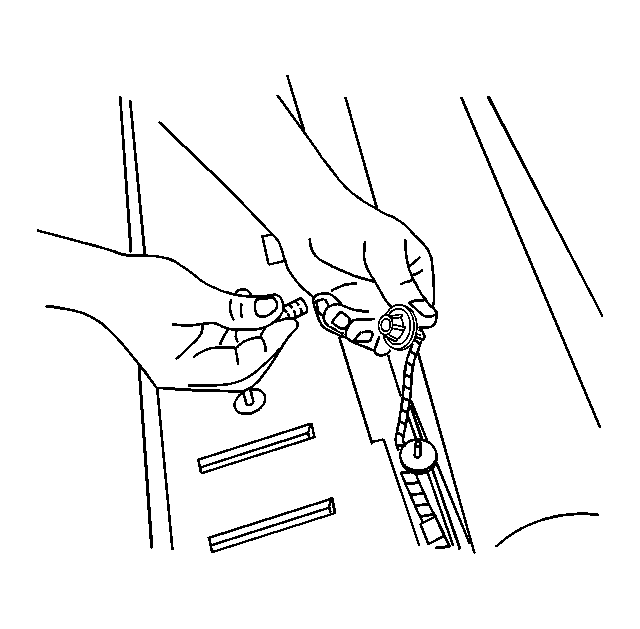

    Fig 1: View of License Lamp Socket
    GM577794Courtesy of GENERAL MOTORS CORP.
  1. Install the license lamp bulb into the license lamp socket.

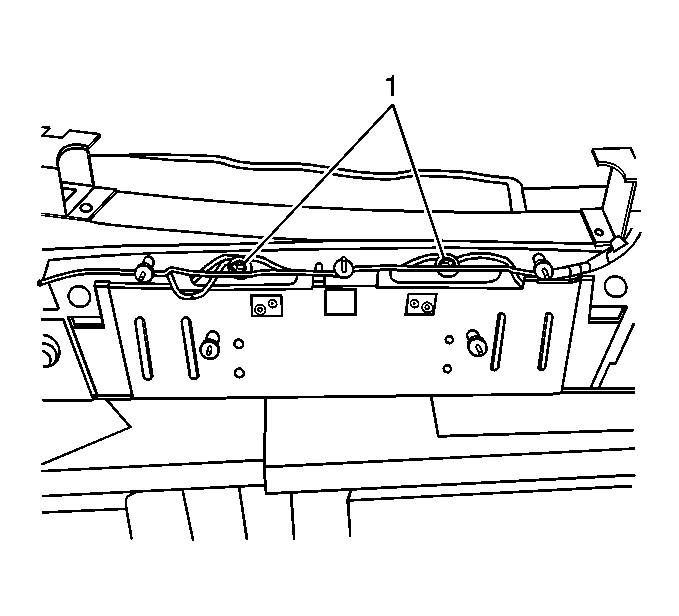

    2. Fig 2: Identifying License Lamp Sockets
    GM577789Courtesy of GENERAL MOTORS CORP.
  2. Install the license lamp sockets (1) into the back up lamp.
  3. Install the back up lamp to the vehicle. Refer to Backup Lamp Replacement .
