Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

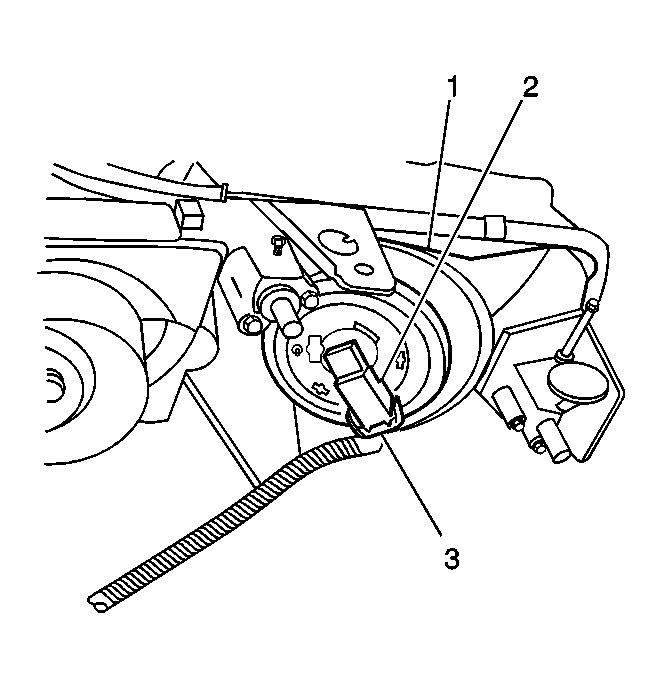

    Fig 1: View of Headlamp Assembly
    GM567790Courtesy of GENERAL MOTORS CORP.
  1. Install the headlamp bulb (2) into the headlamp assembly (1).
  2. Turn the headlamp bulb (2) clockwise in order to secure it to the headlamp assembly (1).
  3. Connect the electrical connector (3) to the headlamp bulb (2).
  4. Install the headlamp assembly to the vehicle. Refer to Headlamp Replacement (SLS, w/o TT6, TT7 or TT8)  or Headlamp Replacement (SLS and STS w/TT6, TT7 or TT8) .
