Removal Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel right accessory trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory Right (LHD) or Trim Plate Replacement - Instrument Panel (I/P) Accessory Right (RHD) in Instrument Panel, Gages and Console.
    2. Fig 1: View of Hazard Warning Switch Electrical Connector
    GM488586Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector.
    3. Fig 2: View of Hazard Switch
    GM562257Courtesy of GENERAL MOTORS CORP.
  3. Remove the hazard switch by releasing the locking tabs.

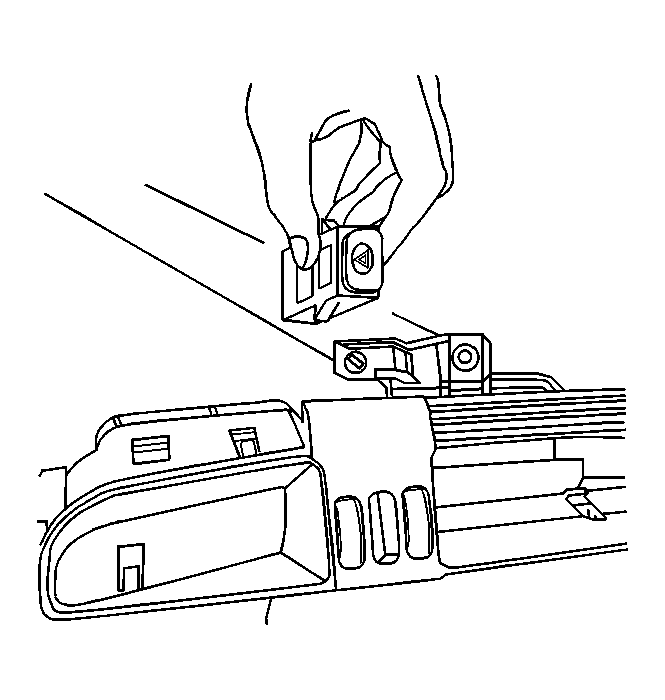

    4. Fig 3: Identifying Hazard Switch
    GM562260Courtesy of GENERAL MOTORS CORP.
  4. Remove the hazard switch.
