Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

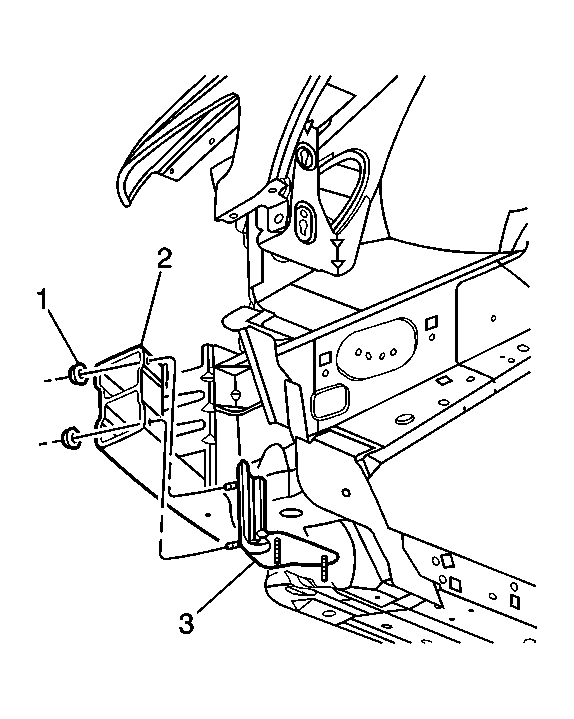

    Fig 1: View of Front Impact Bar, Fog Lamp Bracket, & Fasteners
    GM105151Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the fog lamp bracket (3).
  2. Install the fasteners (1) in order to secure the fog lamp bracket (3) to the front impact bar (2).

    Tighten:  Tighten the fog lamp bracket mounting fasteners to 9 N.m (80 lb in).

  3. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper in Bumpers.

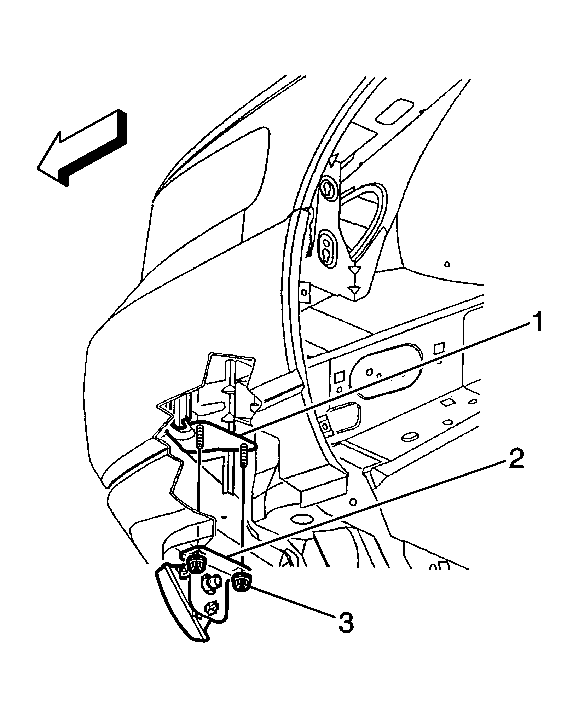

    4. Fig 2: View of Fog Lamp, Bracket, & Fasteners
    GM106470Courtesy of GENERAL MOTORS CORP.
  4. Install the fog lamp (2).
  5. Install the fasteners (3) in order to secure the fog lamp (2) to the fog lamp bracket (1).

    Tighten:  Tighten the fog lamp fasteners to 6 N.m (53 lb in).

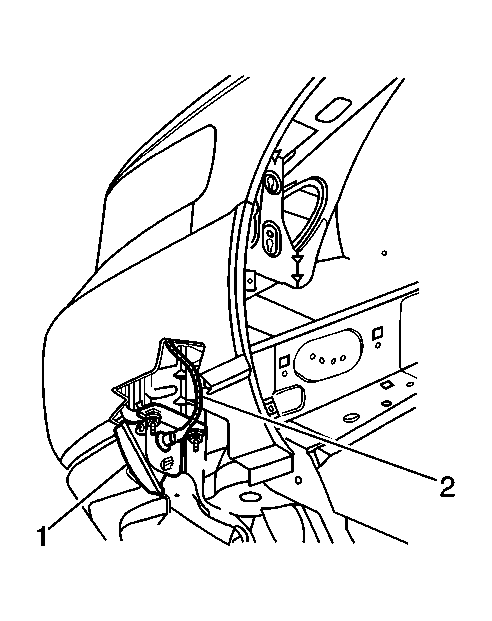

    6. Fig 3: Identifying Fog Lamp & Electrical Connector
    GM106471Courtesy of GENERAL MOTORS CORP.
  6. Connect the fog lamp electrical connector (2) to the fog lamp (1).
  7. Install the front air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
