Body Rear End Component Views

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

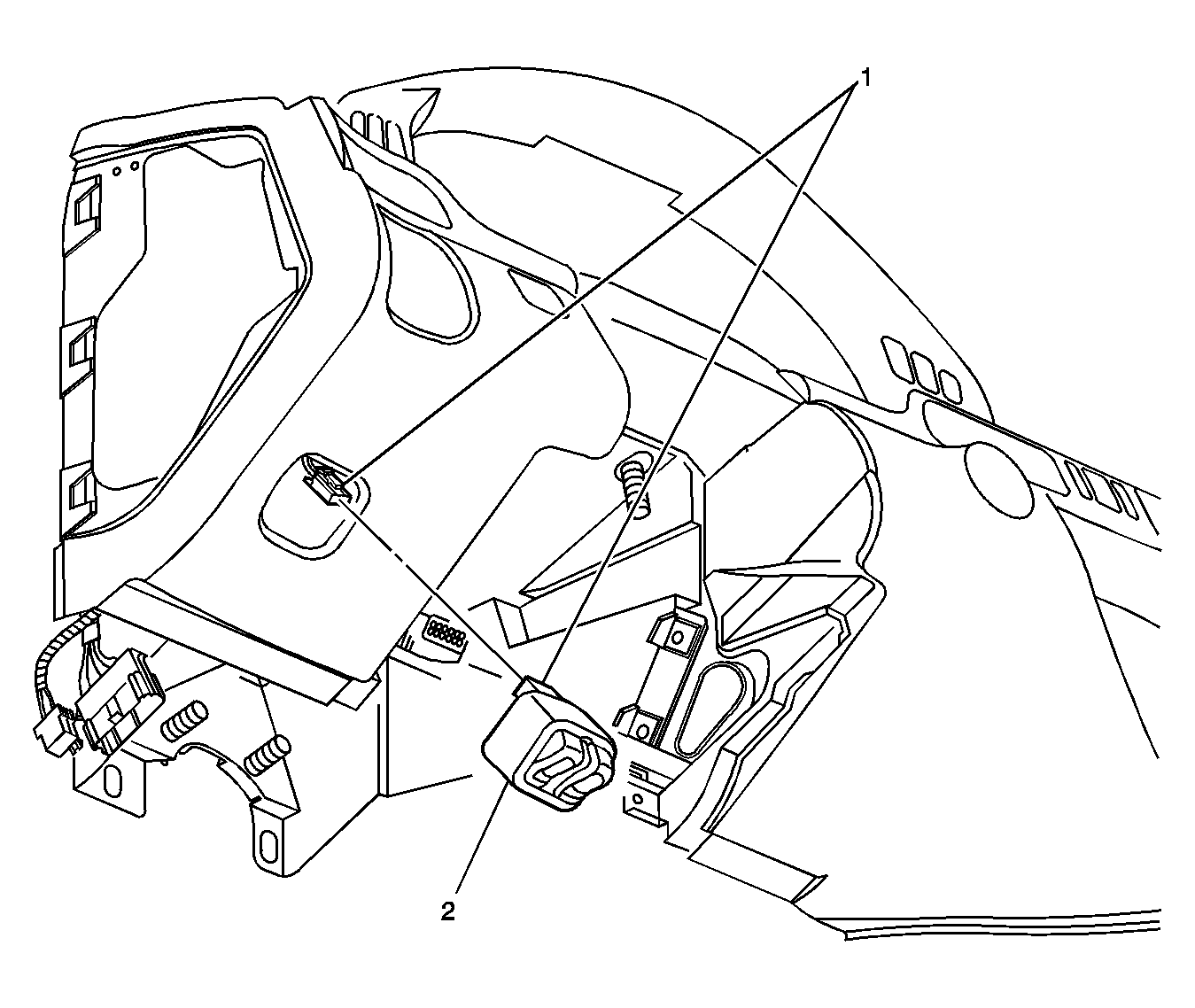

Fig 1: Left Side Under The Instrument Panel Component View
GM748091Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Door Lock Release Switch Connector - LH Drive
2 Fuel Door Lock Release Switch - LH Drive

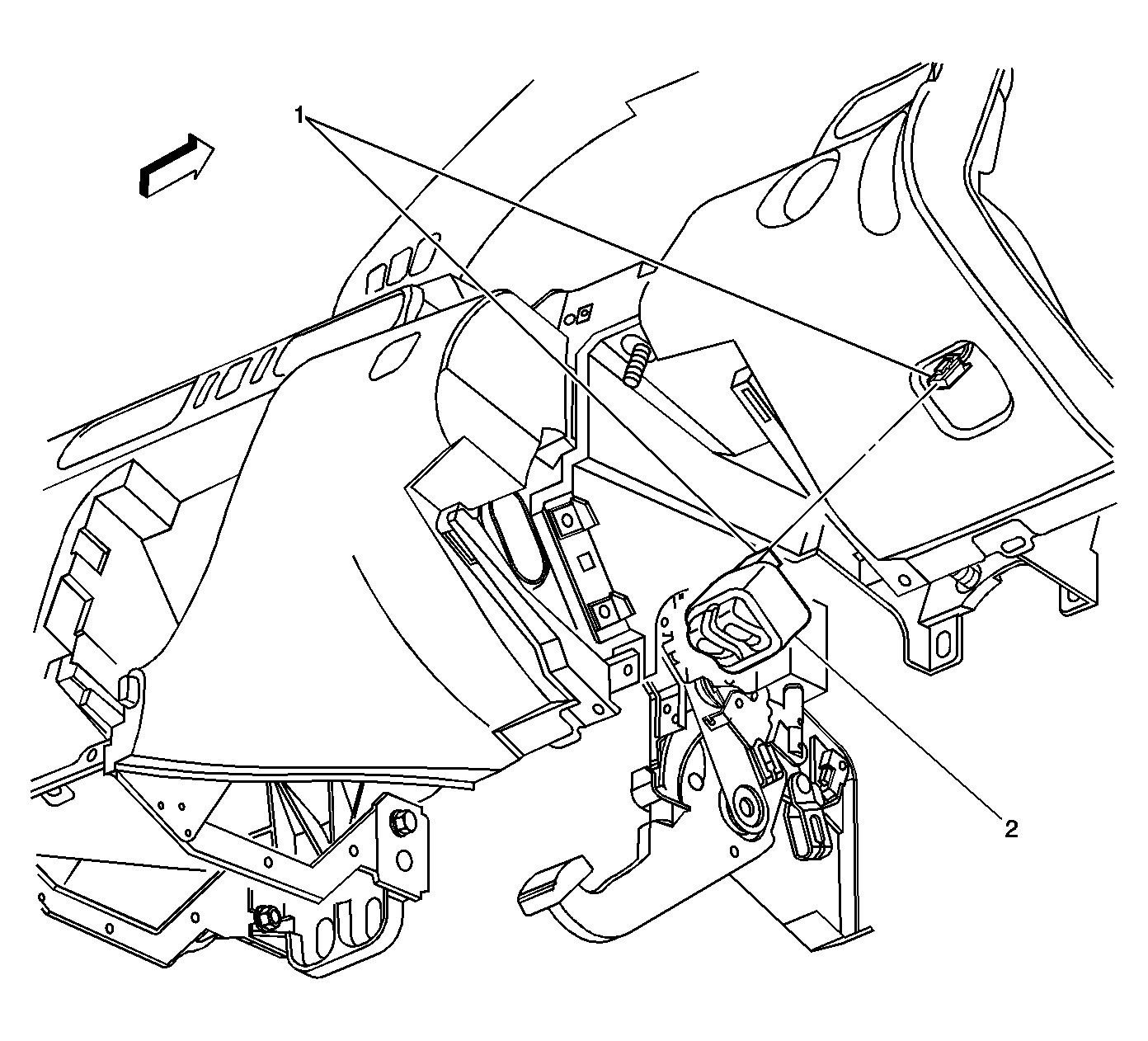

Fig 2: Right Side Under The Instrument Panel Component View
GM748092Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Door Lock Release Switch Connector - RH Drive
2 Fuel Door Lock Release Switch - RH Drive

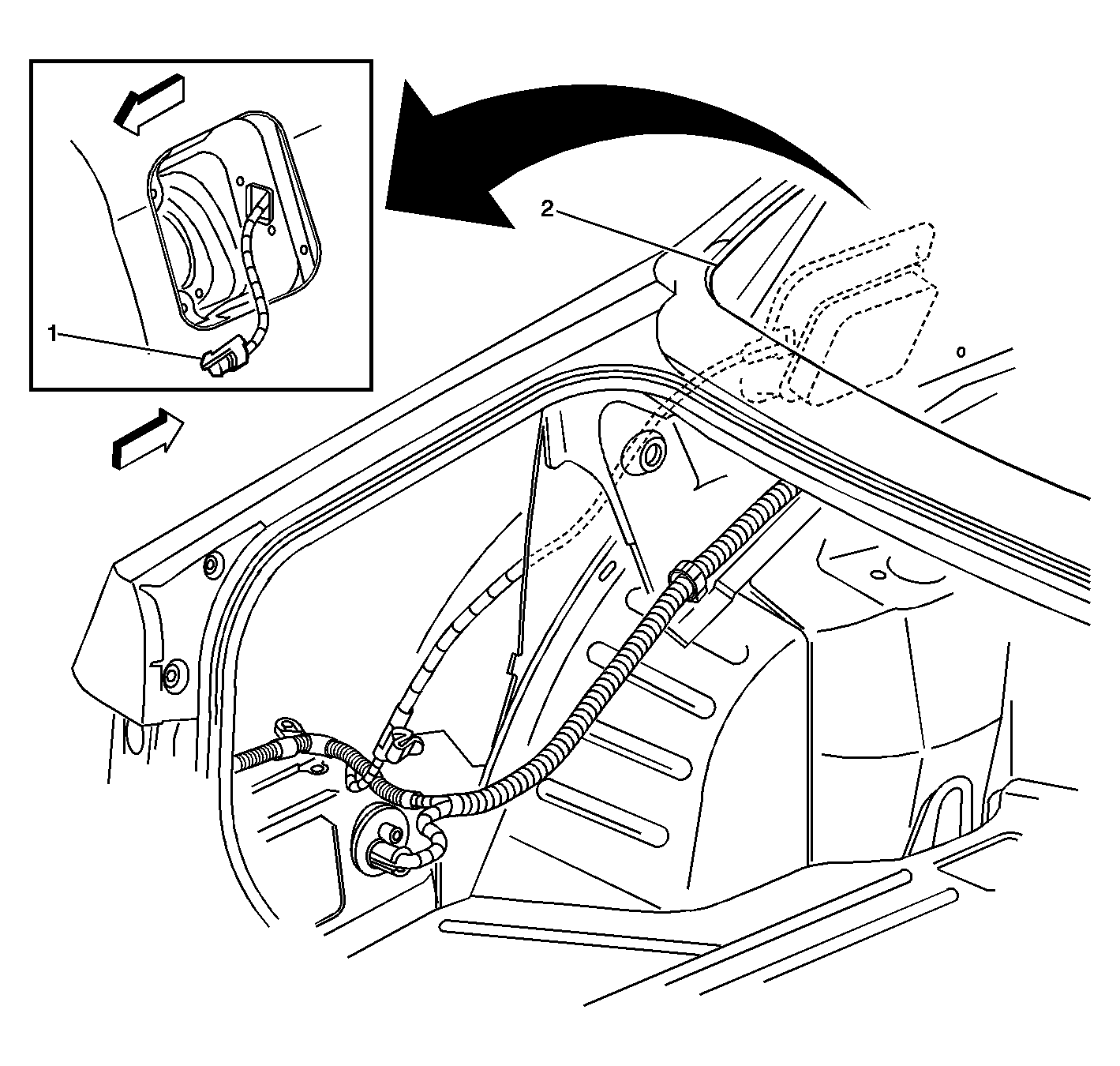

Fig 3: Rear Compartment, Left Component View
GM747984Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Door Lock Release Switch Connector
2 Fuel Door
Fig 4: Rear Compartment, Rear Compartment Lid Component View
GM154463Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C421
2 Center High Mounted Stop Lamp (CHMSL)
3 Rear Compartment Latch
4 Rear Compartment Key Cylinder Release w/ Disarm Switch
5 Rear Compartment Lid Pulldown Motor
