Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

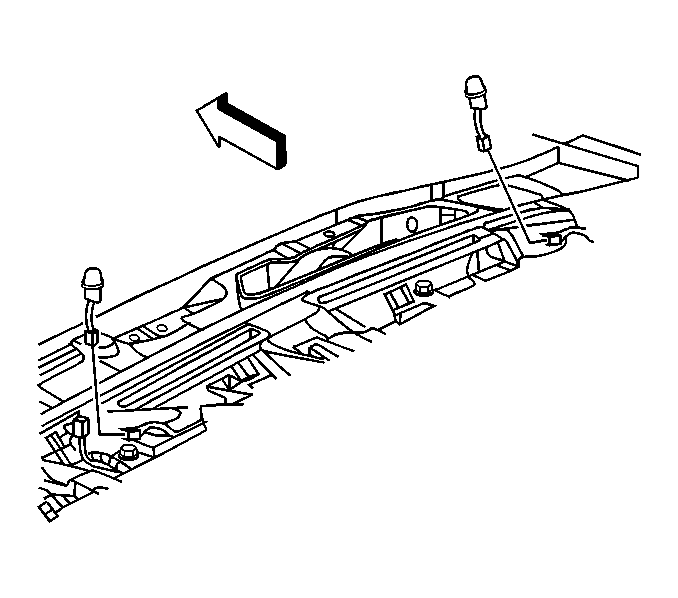

    Fig 1: View of Sun Load Sensor in Grille
    GM130650Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the sensor.
  2. Install the sensor to the defroster grille by twisting the sensor 1/4 turn.
  3. Install the defroster grille. Refer to Defroster Grille Replacement in Instrument Panel, Gages and Console.
