Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Removing/Installing Actuator Assembly
    GM292146Courtesy of GENERAL MOTORS CORP.
  1. Install the recirculation actuator.

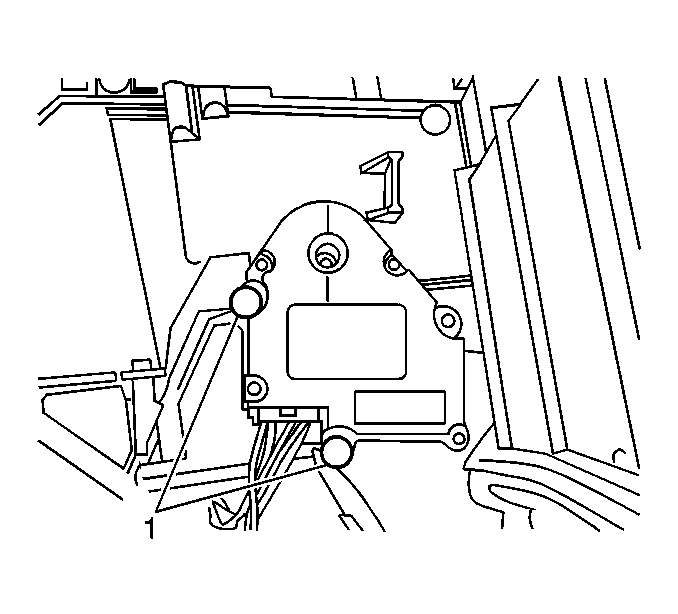

    2. Fig 2: View Of Recirculation Actuator Retaining Screws
    GM292142Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the recirculation actuator screws (1).

    Tighten:  Tighten the screws to 1.4 N.m (12 lb in).

  3. Install the electrical connector to the recirculation actuator.
    4. Fig 3: View Of HVAC Module
    GM291175Courtesy of GENERAL MOTORS CORP.
  4. Position the DIM module bracket to the original position.
  5. Install the rear DIM module bracket screws.

    Tighten:  Tighten the screws to 1.4 N.m (12 lb in).

  6. Install the DIM module into the bracket. Refer to Dash Integration Module Replacement (LHD) or Dash Integration Module Replacement (RHD) in Body Control System.
  7. Install the instrument panel retainer. Refer to Instrument Panel (I/P) Retainer Replacement in Instrument Panel, Gages and Console.
  8. Recalibrate the actuators. Refer to Re-Calibrating Actuators .
