Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the pivots on the mode door levers and the channels on the mode motor cam before reassembling.

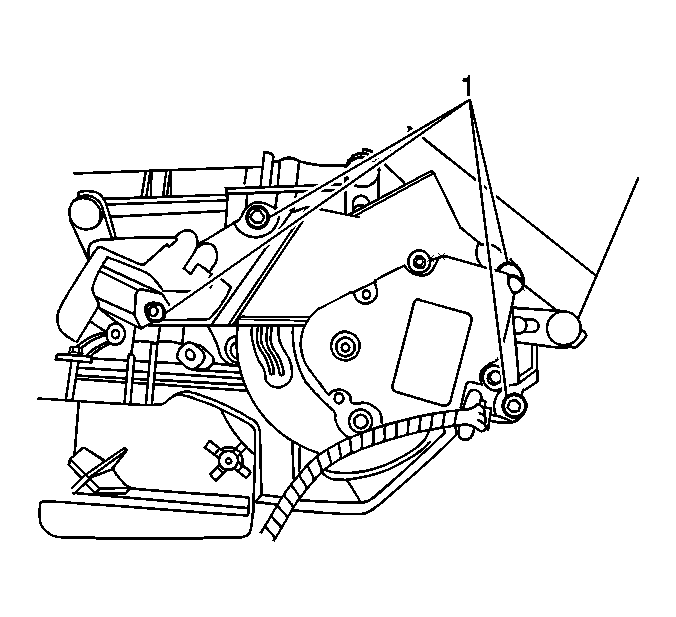

    2. Fig 1: View of Mode Actuator Screws
    GM292128Courtesy of GENERAL MOTORS CORP.
  2. Align the mode door levers with the cam slots, as noted on disassembly.
  3. Install the mode actuator.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the mode actuator screws (1).

    Tighten:  Tighten the screws to 1.4 N.m (12 lb in).

  5. Install the instrument panel carrier. Refer to Instrument Panel (I/P) Carrier Replacement in Instrument Panel, Gages and Console.
  6. Recalibrate the actuators. Refer to Re-Calibrating Actuators .
