Removal Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

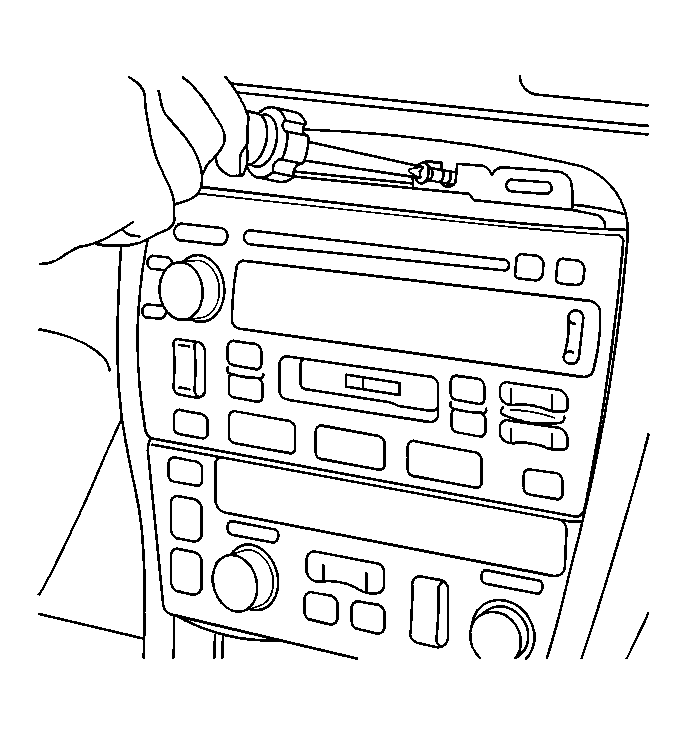

    Fig 1: View of Instrument Panel Center Trim Plate
    GM287815Courtesy of GENERAL MOTORS CORP.
  1. Remove the instrument panel center trim plate. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center in Instrument Panel, Gages and Console.
  2. Remove the console trim plate. Refer to Trim Plate Replacement - Console in Instrument Panel, Gages and Console.
  3. Remove the HVAC control module bracket fasteners.
  4. Disconnect the electrical connectors from the HVAC control module and the radio.

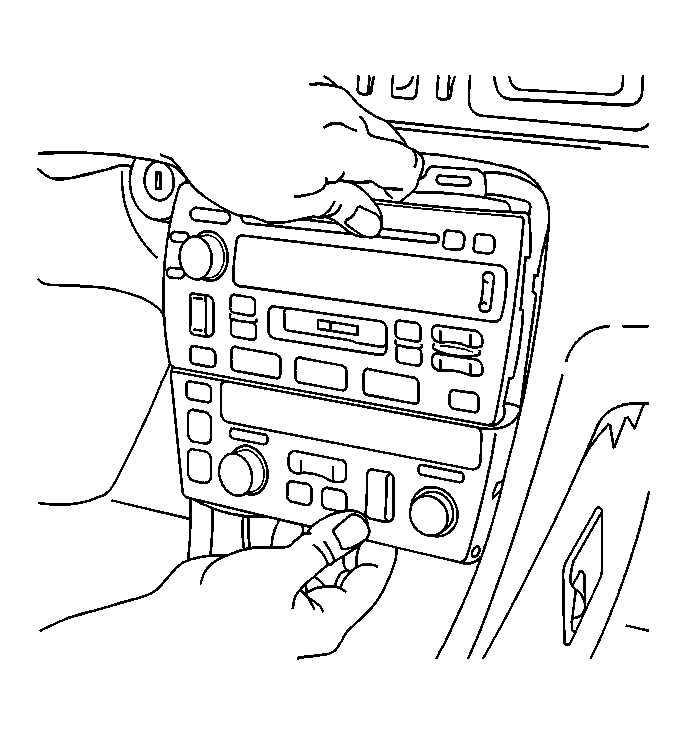

    5. Fig 2: View of HVAC Control Module & Radio
    GM287812Courtesy of GENERAL MOTORS CORP.
  5. Remove the HVAC control module and the radio.

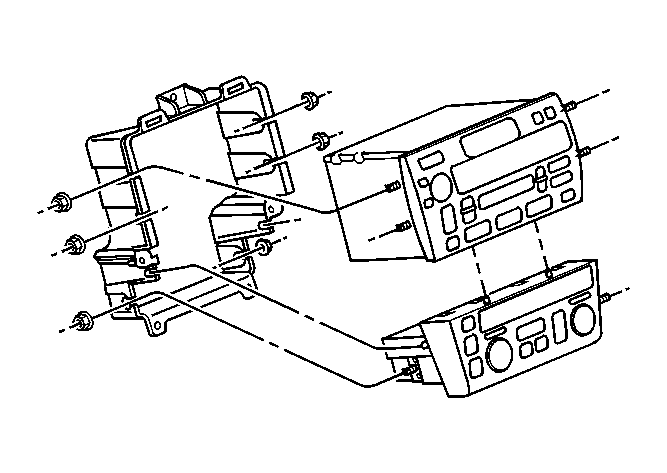

    6. Fig 3: Identifying HVAC Retaining Nuts
    GM288103Courtesy of GENERAL MOTORS CORP.
  6. Remove the HVAC control module retaining nuts.
  7. Remove the HVAC control module from the bracket.
