Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

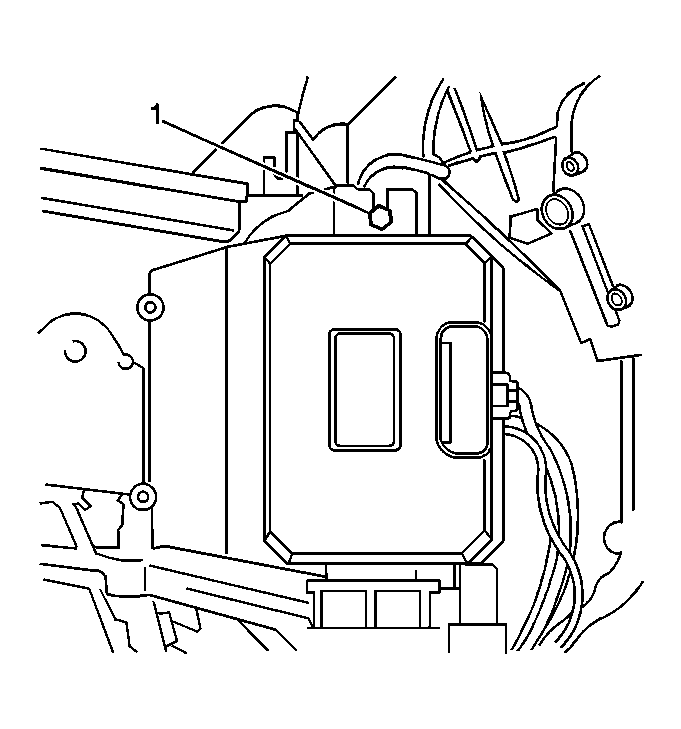

    Fig 1: Identifying Blower Control Module Screw
    GM292019Courtesy of GENERAL MOTORS CORP.
  1. Install the blower control module.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the blower control module screw (1).

    Tighten:  Tighten the screw to 1.4 N.m (12 lb in).

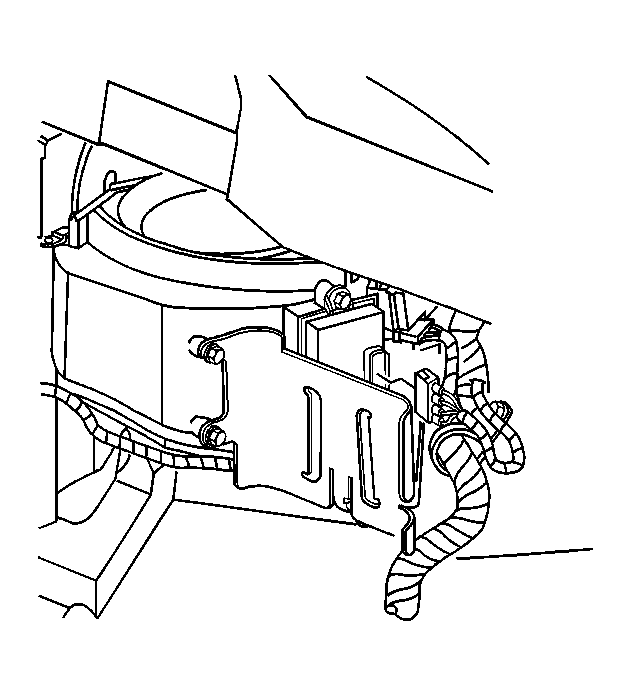

    3. Fig 2: View of Blower Control Module Electrical Connector
    GM284241Courtesy of GENERAL MOTORS CORP.
  3. Connect the blower control module electrical connector.

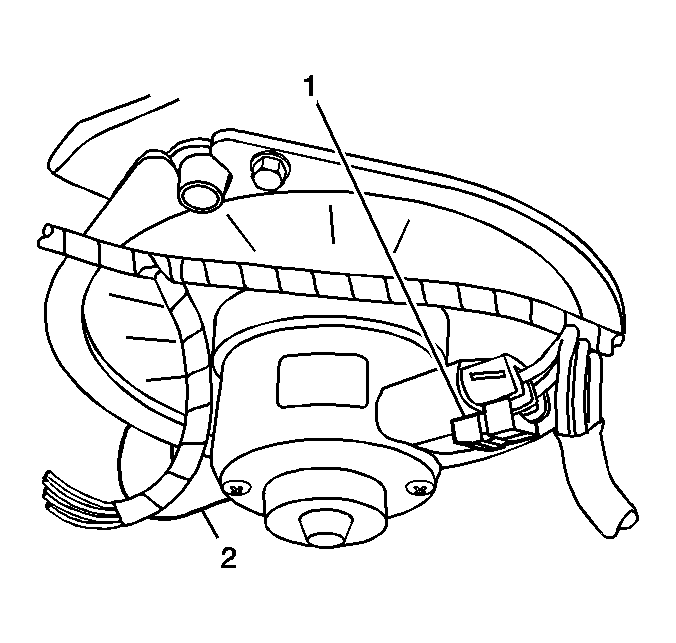

    4. Fig 3: Identifying Blower Motor Electrical Connector
    GM828429Courtesy of GENERAL MOTORS CORP.
  4. Connect the blower motor electrical connector (1).
    5. Fig 4: View Of HVAC Module
    GM291175Courtesy of GENERAL MOTORS CORP.
  5. Reposition the DIM bracket to the original position.
  6. Install the 2 rear DIM bracket screws.

    Tighten:  Tighten the screws to 1.4 N.m (12 lb in).

  7. Install the DIM. Refer to Dash Integration Module Replacement (LHD) or Dash Integration Module Replacement (RHD) in Body Control System.
  8. Install the instrument panel compartment. Refer to Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages, and Console.
  9. Install the right sound insulator. Closeout/Insulator Panel Replacement - Right (LHD) or Closeout/Insulator Panel Replacement - Right (RHD) in Instrument Panel, Gages, and Console.
