Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the ambient temperature sensor (1) in position.

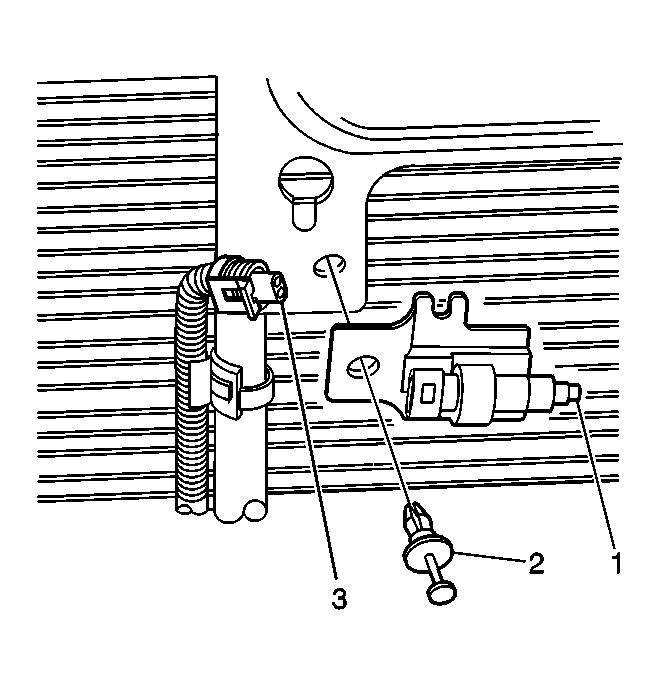

    2. Fig 1: View of Ambient Air Temperature Sensor
    GM592436Courtesy of GENERAL MOTORS CORP.
  2. Install the retainer (2) to the ambient temperature sensor (1).
  3. Connect the electrical connector (3) to the ambient temperature sensor (1).
