HVAC Component Views

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

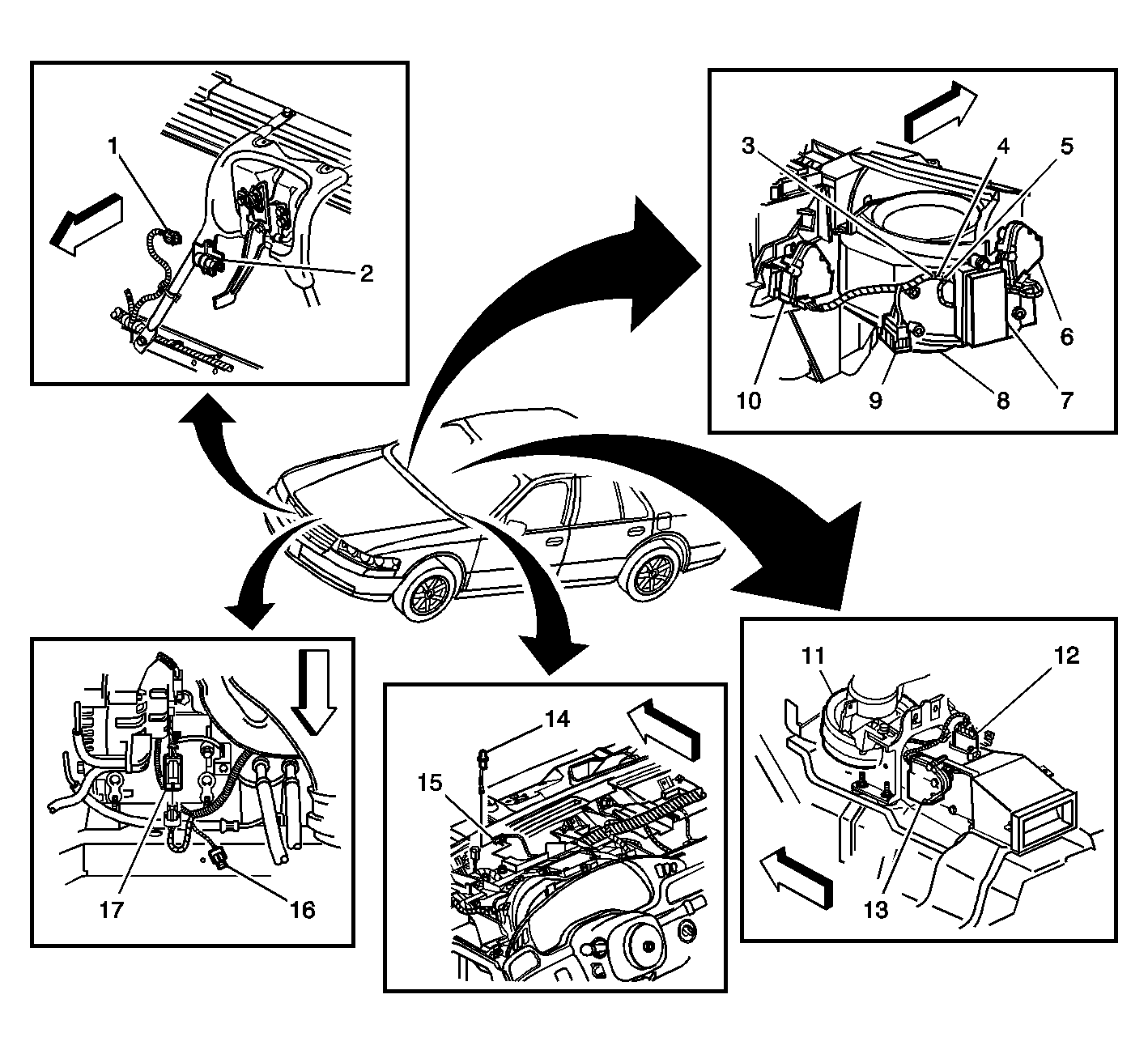

Fig 1: HVAC System Sub-System Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Sensor - Inside Connector
2	Air Temperature Sensor - Inside
3	S275
4	S274
5	S278
6	Recirculation Actuator
7	Blower Motor Control Processor
8	Blower Motor
9	C203
10	Air Temperature Actuator - Right
11	Blower Motor Auxiliary
12	Blower Motor Resistor Assembly - Auxiliary
13	Mode Actuator - Auxiliary
14	Sunload Sensor - Left (Right Similar)
15	Sunload Sensor - Left Connector (Right Similar)
16	A/C Refrigerant Pressure Sensor Connector
17	A/C Compressor Clutch Connector

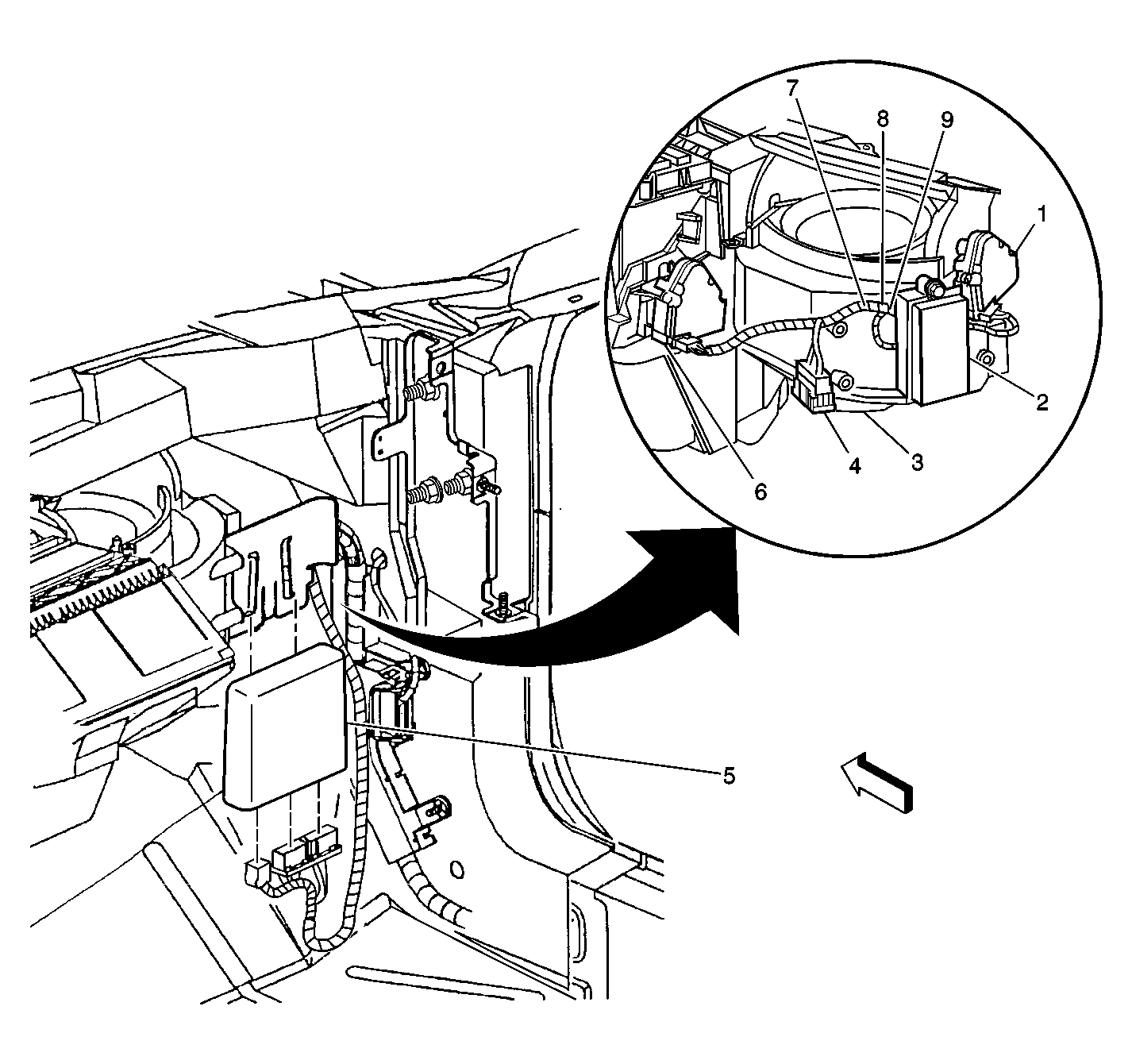

Fig 2: Passenger Compartment, Right Side Below the IP Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Recirculation Actuator
2	Blower Motor Control Processor
3	Blower Motor
4	C203
5	Dash Integration Module (DIM)
6	Air Temperature Actuator-Right
7	S275
8	S274
9	S278

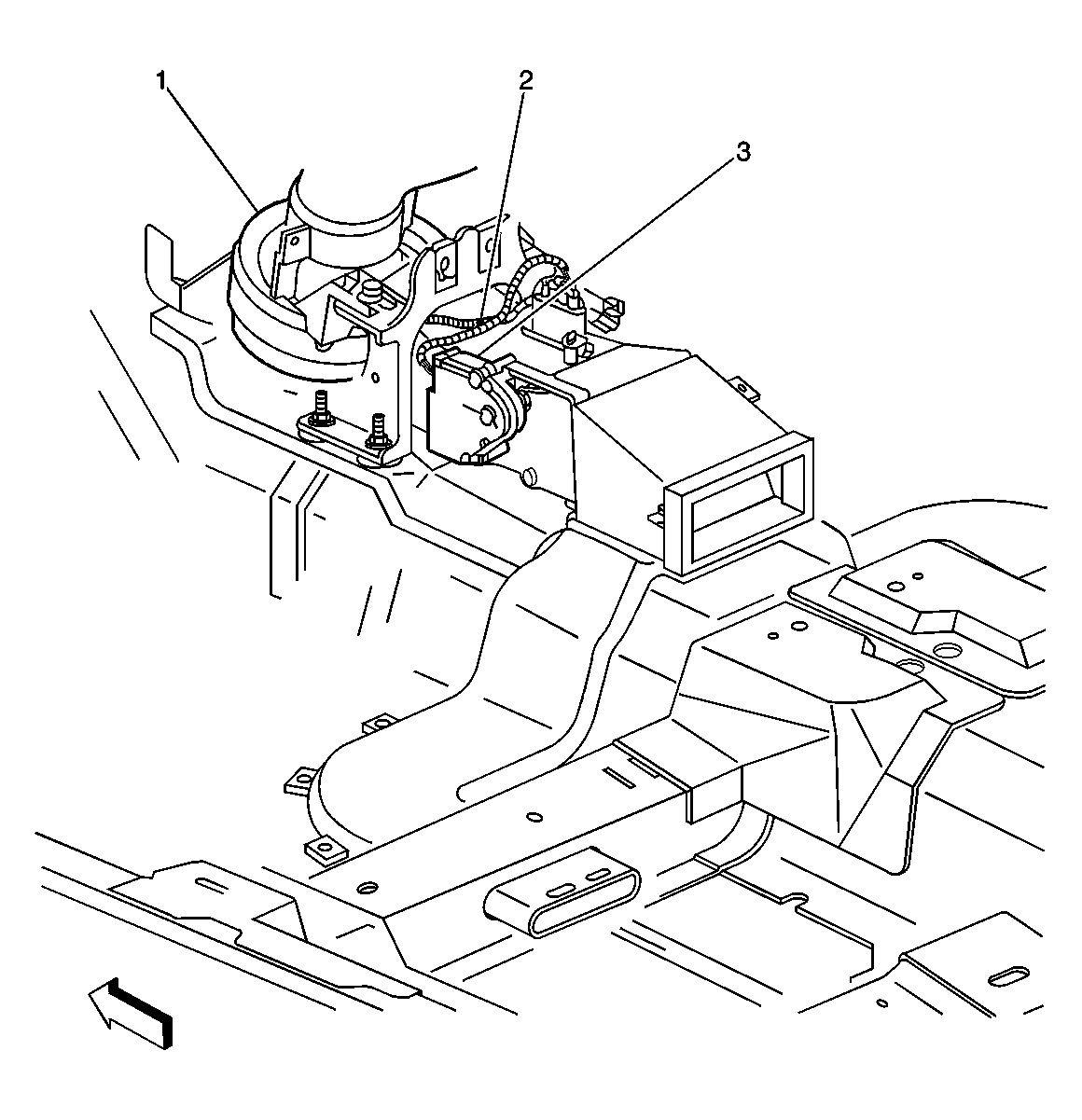

Fig 3: Passenger Compartment, Below the Center of the IP Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor - Auxiliary
2	S322
3	Mode Actuator - Auxiliary

Fig 4: Passenger Compartment, Below the Center of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet
2	C304
3	C312
4	Blower Motor Resistor Assembly - Auxiliary
5	Cigar Lighter
6	Ashtray Lamp
