Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

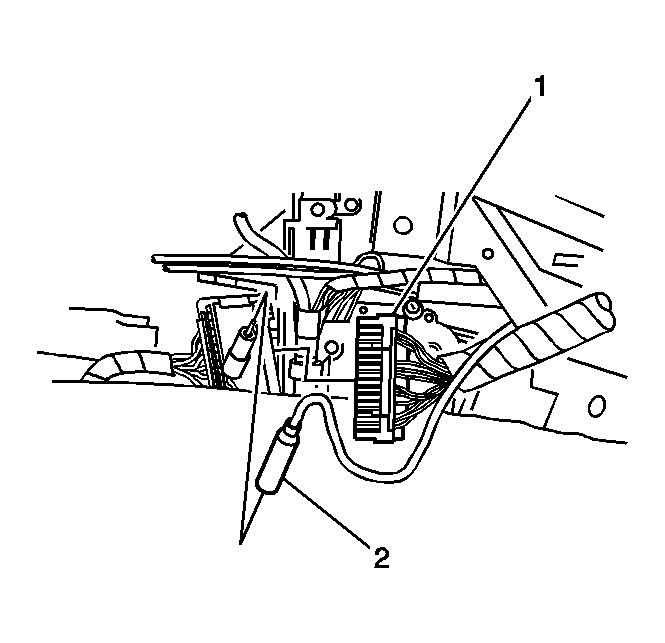

Fig 1: Identifying Radio Extension Cable

Courtesy of GENERAL MOTORS CORP.

Route the antenna extension cable (1) next to the I/P harness, through the I/P carrier to the radio opening, as noted during removal.

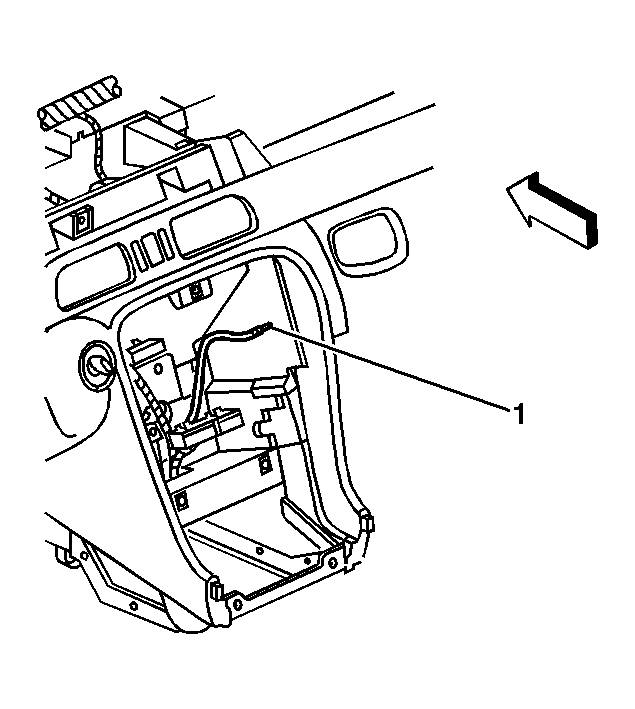

Fig 2: Identifying Radio Antenna Extension Cable

Courtesy of GENERAL MOTORS CORP.

Connect the antenna extension cable (2).
Tie strap the antenna extension cable to the I/P harness.
Install the radio. Refer to Radio Replacement (U45) or Radio Replacement (U1R, UL6, UM5, UM9) .
Install the left console trim panel. Refer to Console Trim Panel Replacement - Left in Instrument Panel, Gages and Console.
