Ground Distribution Schematics

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

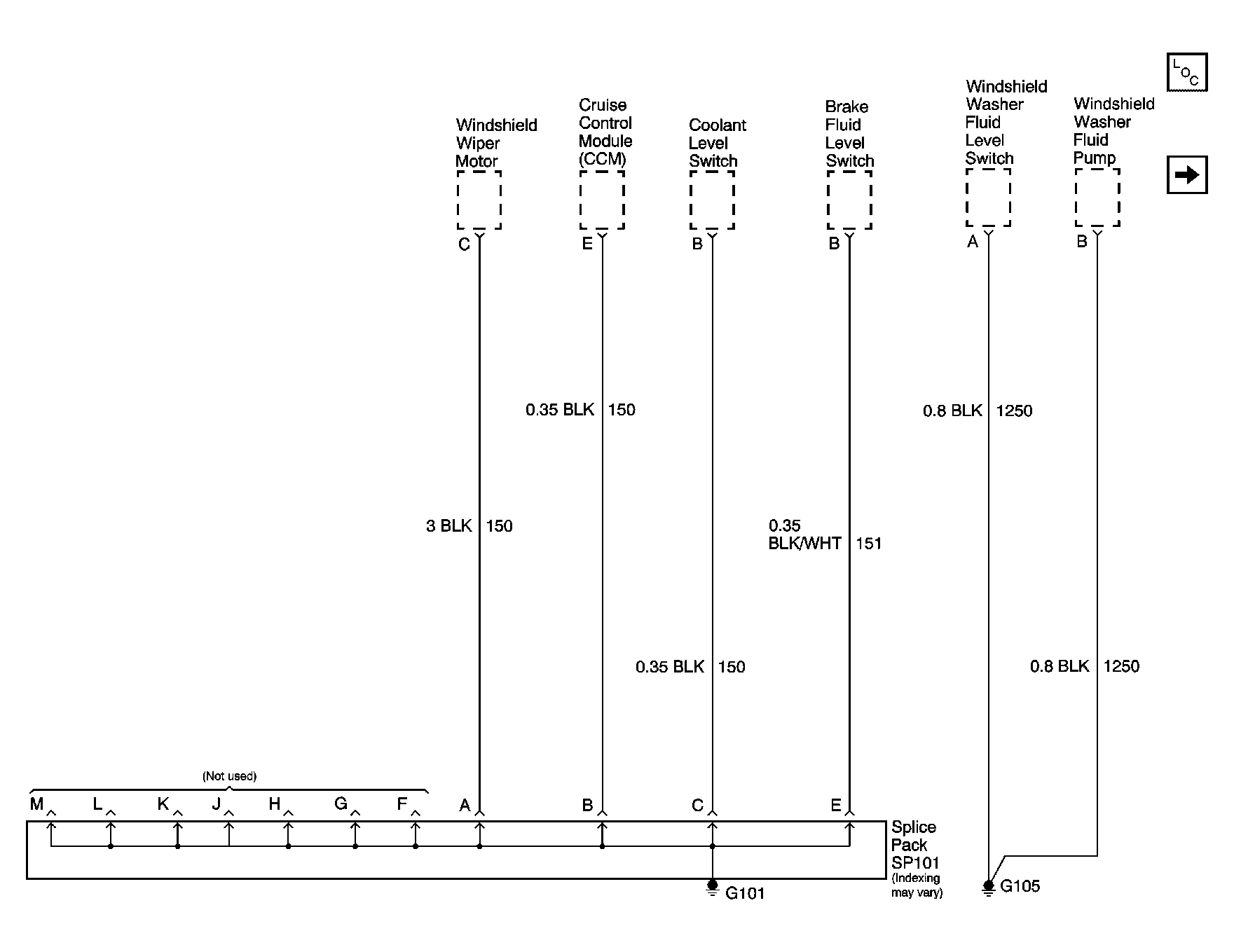

Fig 1: G101 and G105 Schematic

GM864265

Courtesy of GENERAL MOTORS CORP.

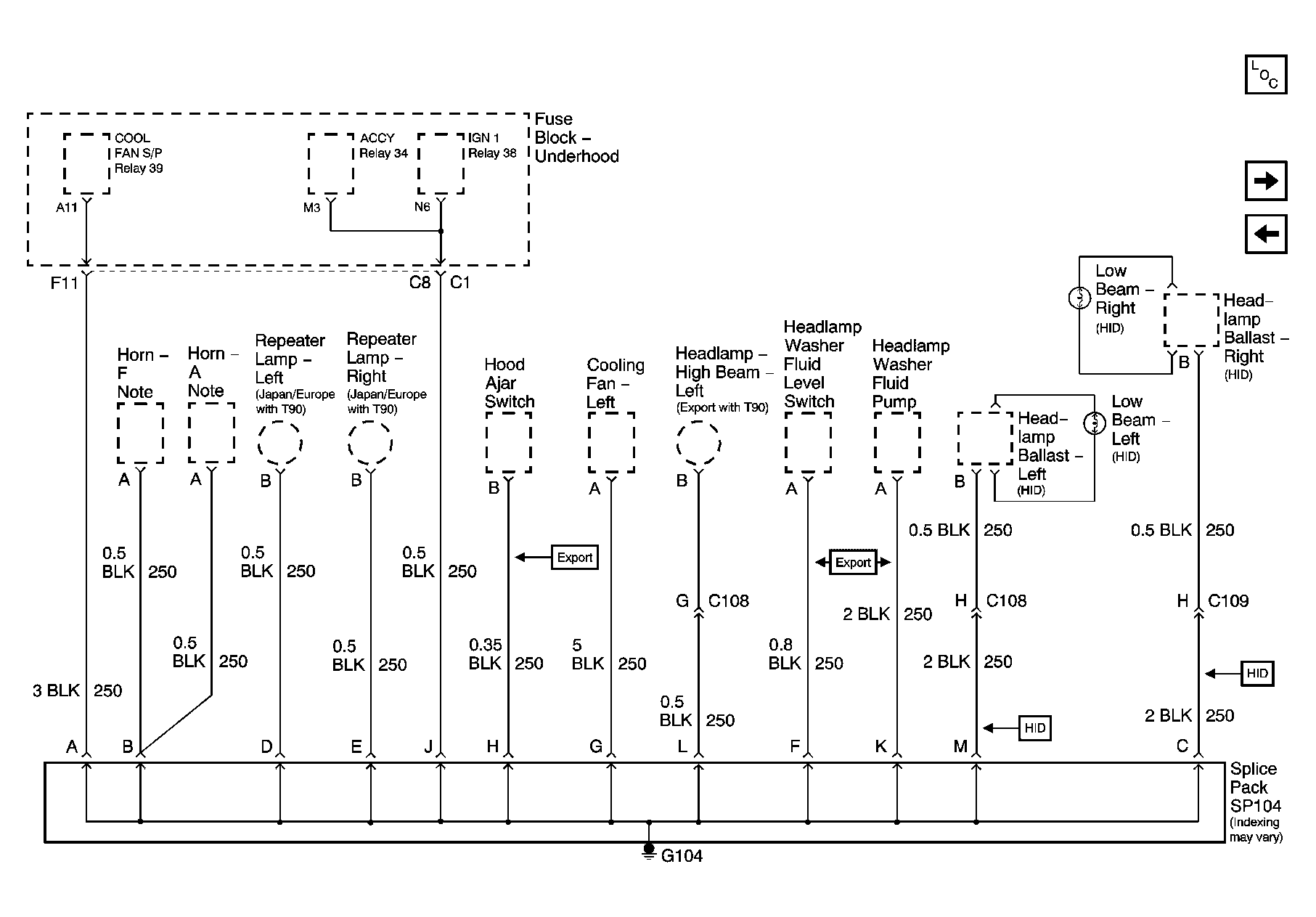

Fig 2: G104 Schematic

GM880237

Courtesy of GENERAL MOTORS CORP.

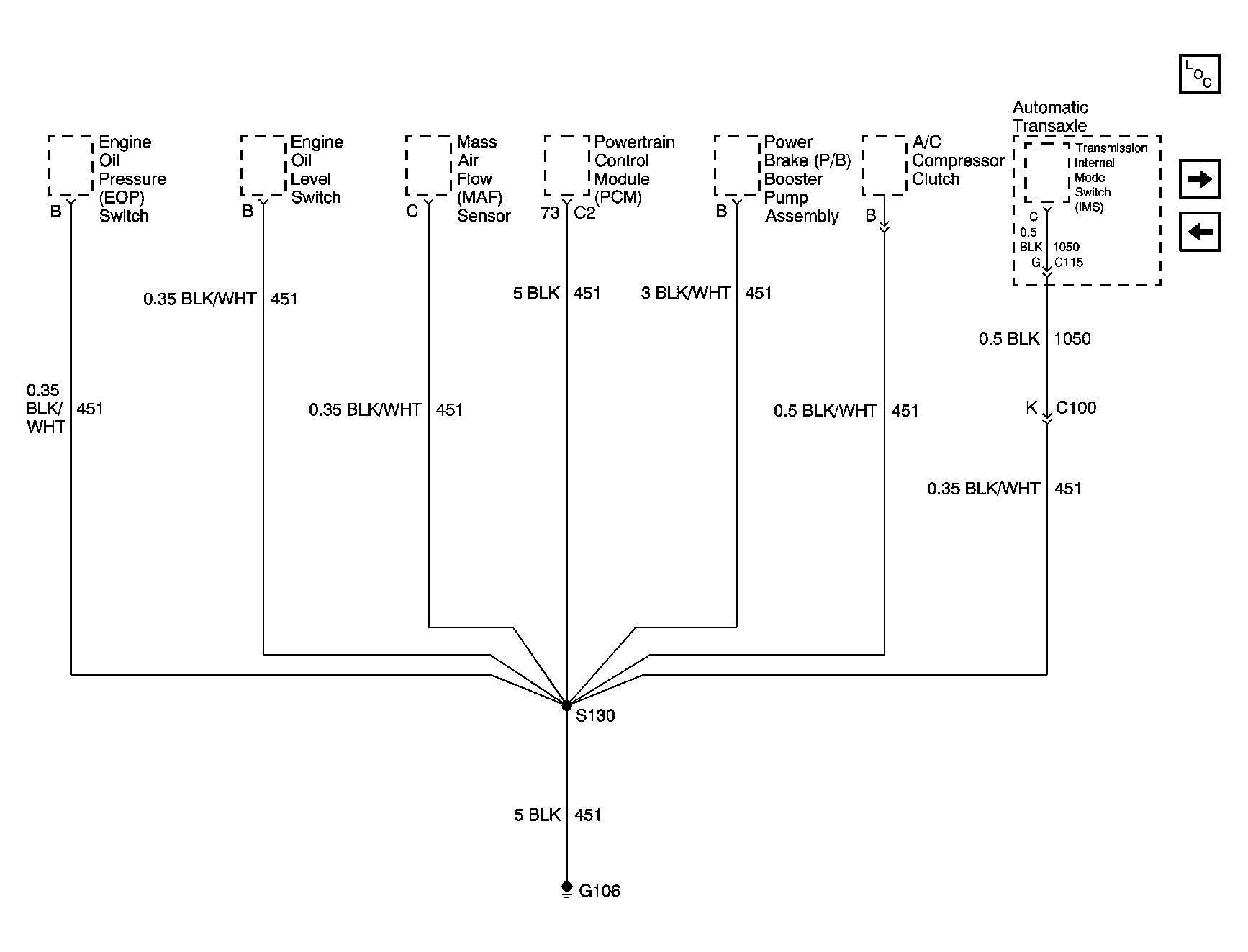

Fig 3: G106 Schematic

GM1220775

Courtesy of GENERAL MOTORS CORP.

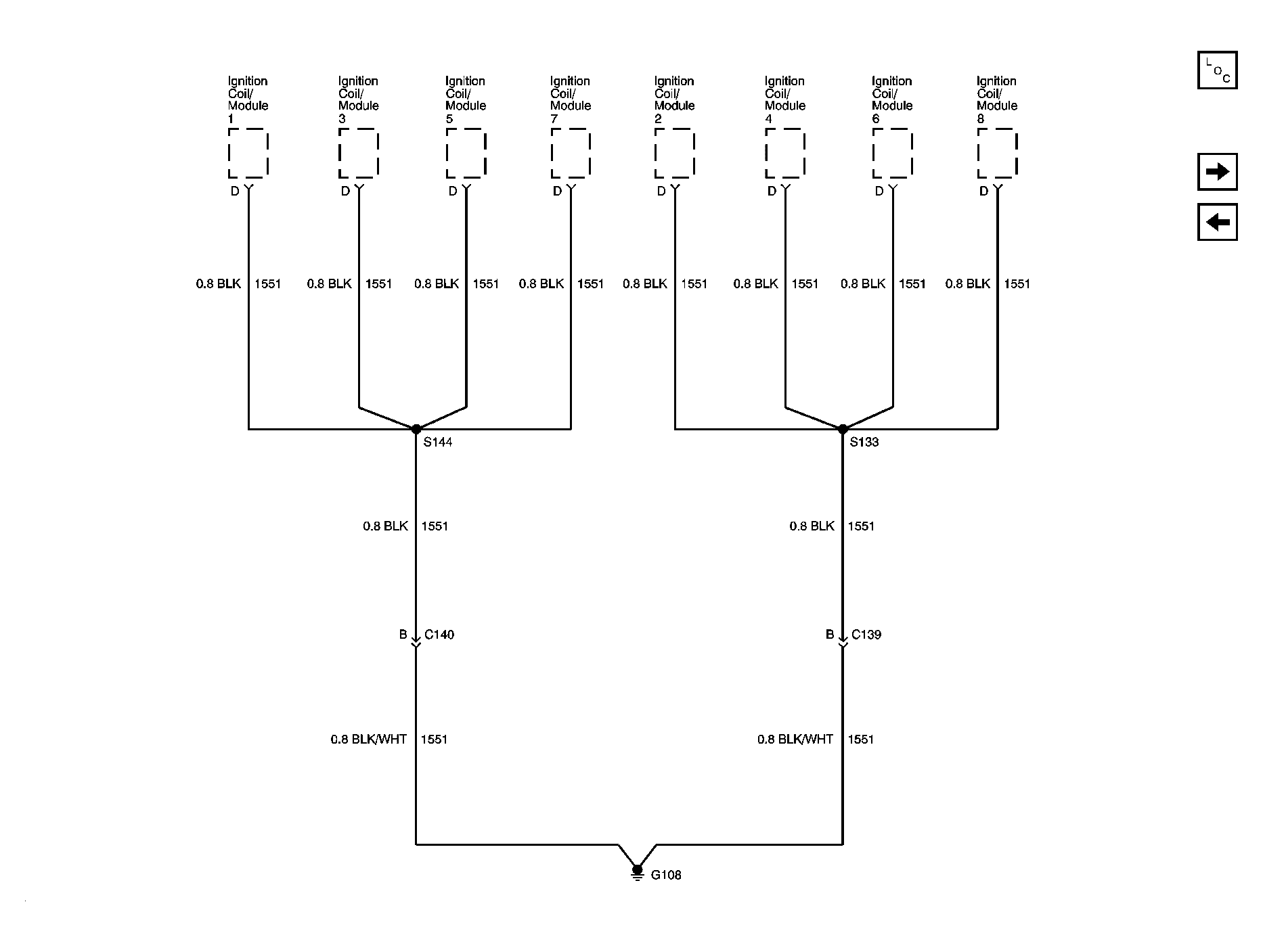

Fig 4: G108 Schematic

GM1370971

Courtesy of GENERAL MOTORS CORP.

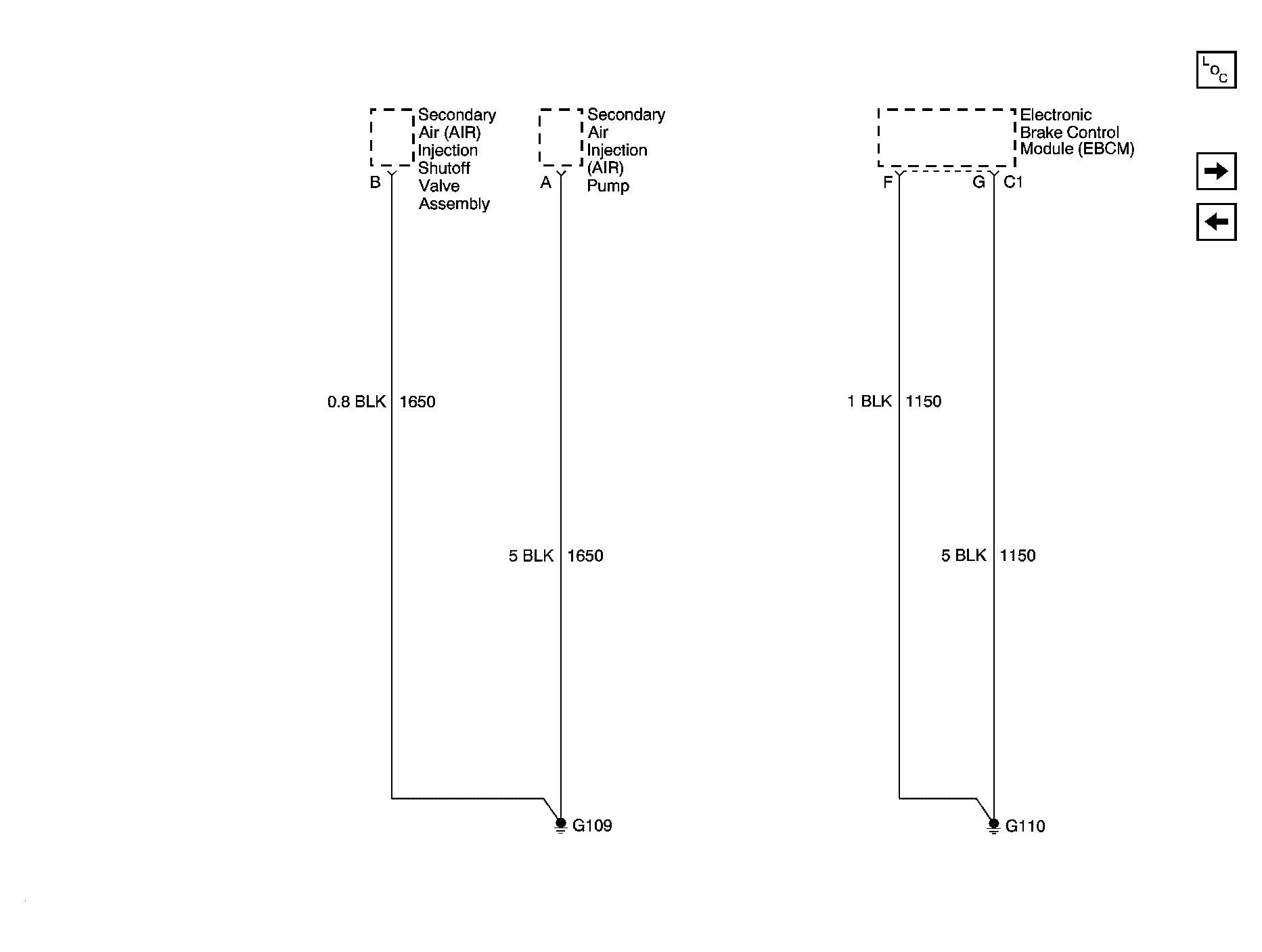

Fig 5: G109, and G110 Schematic

GM1229880

Courtesy of GENERAL MOTORS CORP.

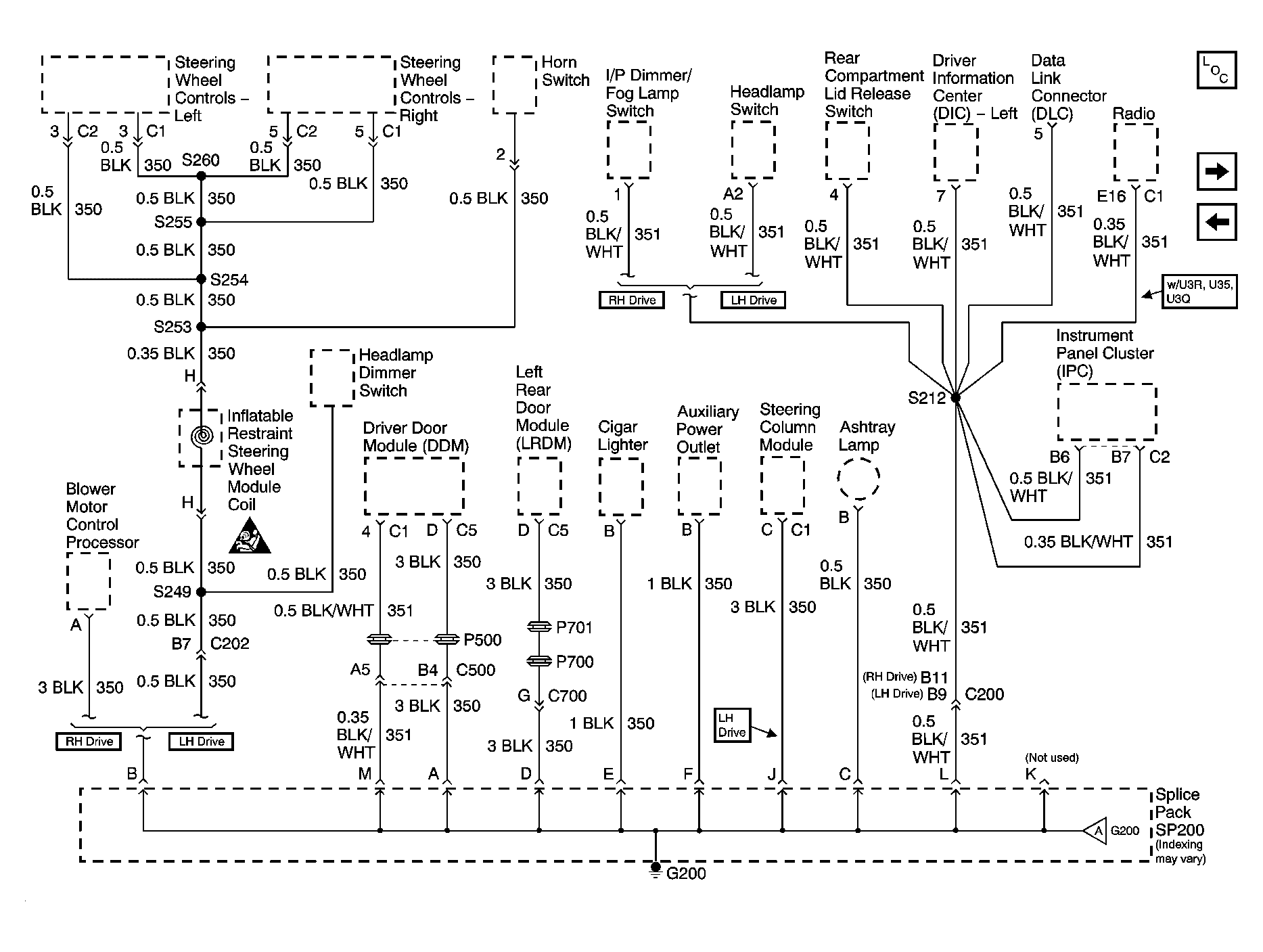

Fig 6: G200 Schematic

GM783588

Courtesy of GENERAL MOTORS CORP.

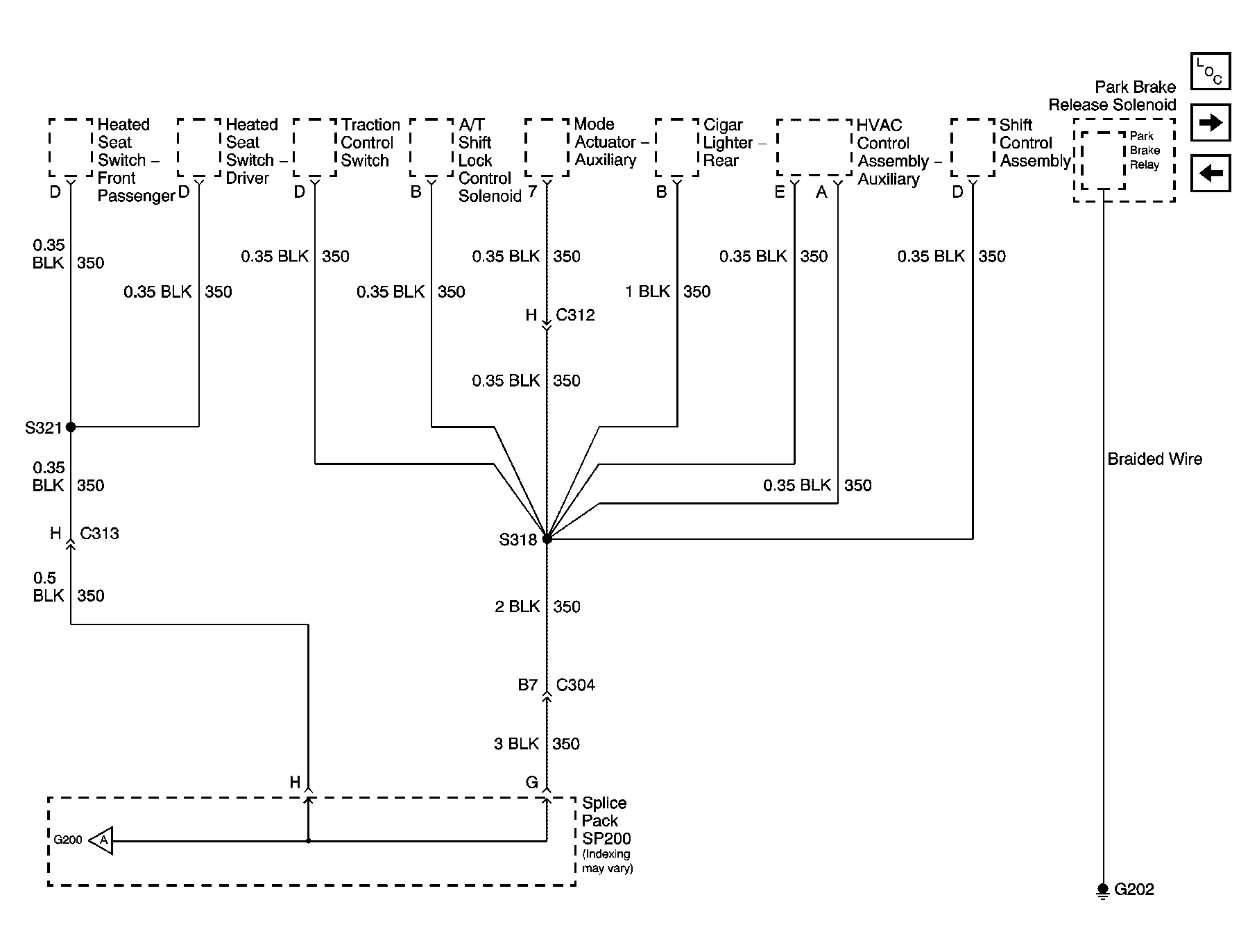

Fig 7: G200 and G202 Schematic

GM791911

Courtesy of GENERAL MOTORS CORP.

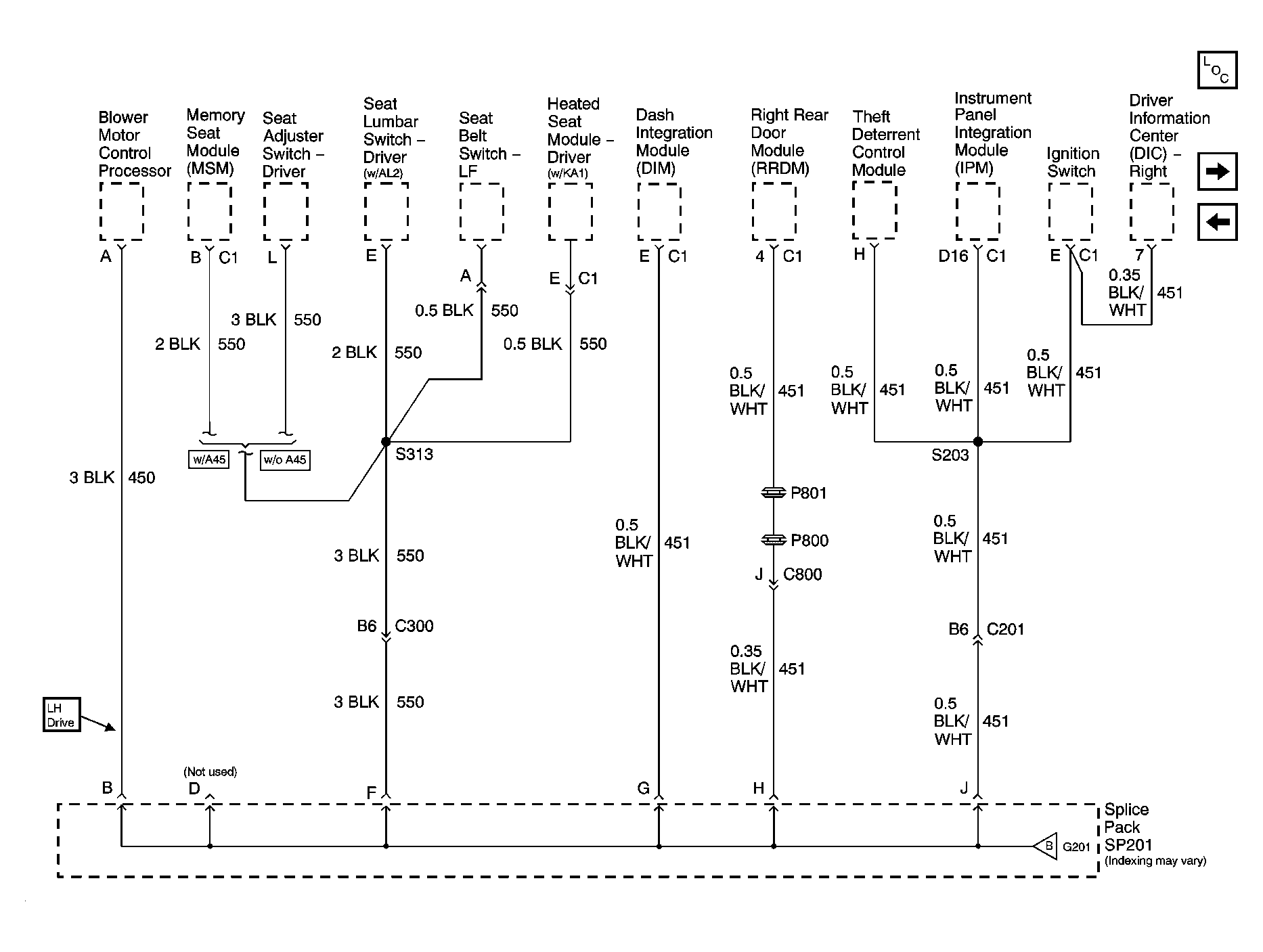

Fig 8: G201 (1 of 5) Schematic

GM1177176

Courtesy of GENERAL MOTORS CORP.

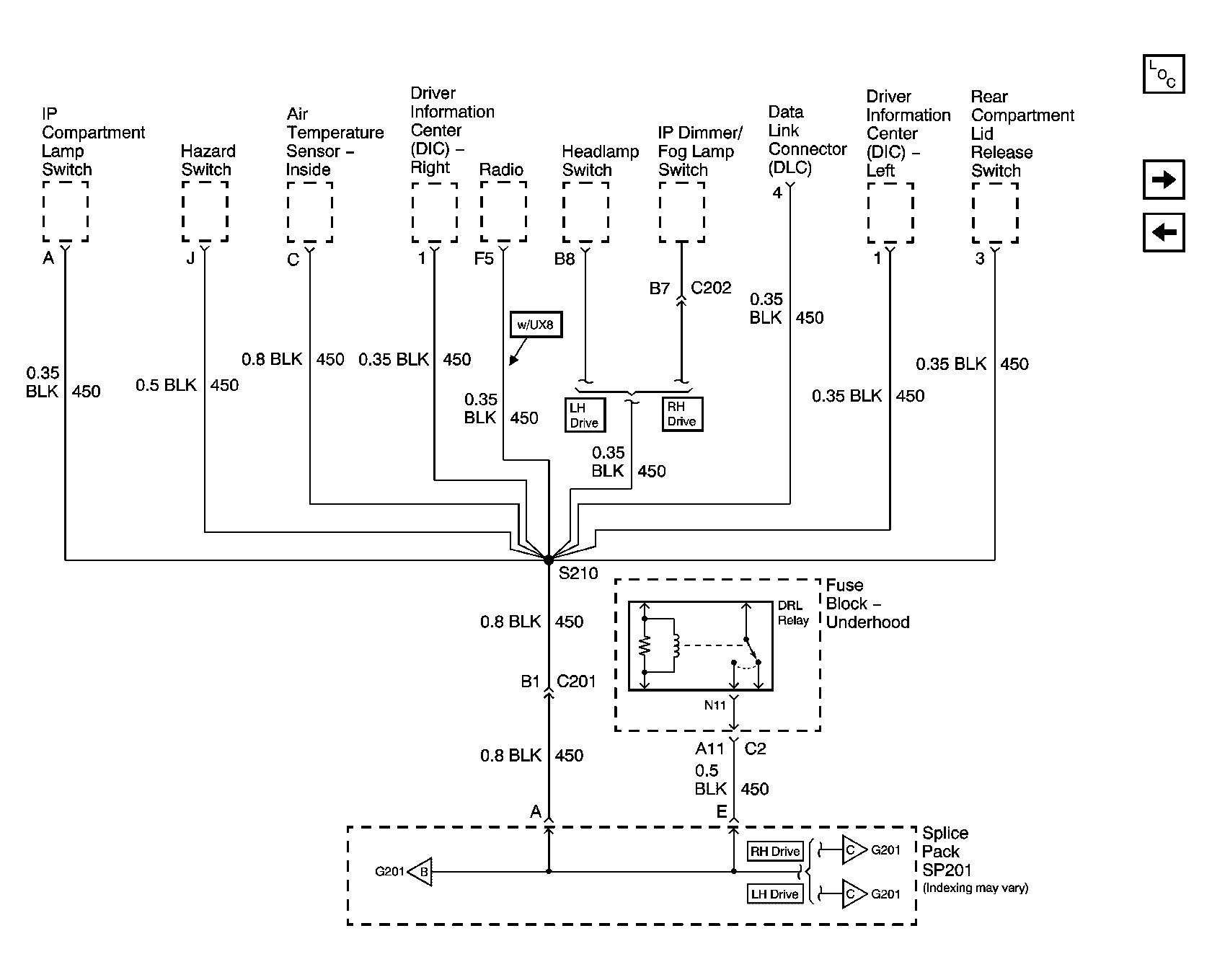

Fig 9: G201 (2 of 5) Schematic

GM1177191

Courtesy of GENERAL MOTORS CORP.

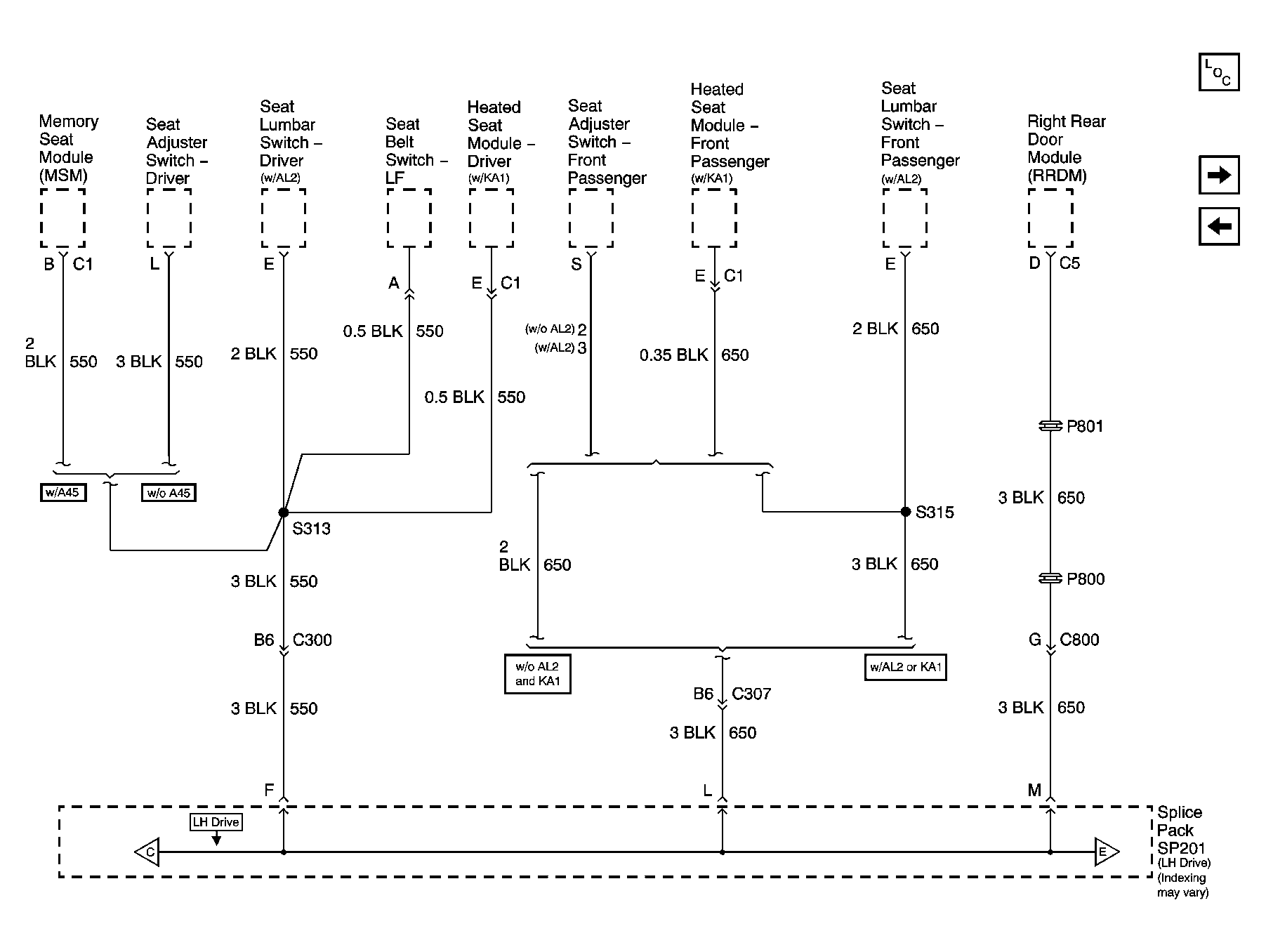

Fig 10: G201 (3 of 5) (LH Drive) Schematic

GM1177208

Courtesy of GENERAL MOTORS CORP.

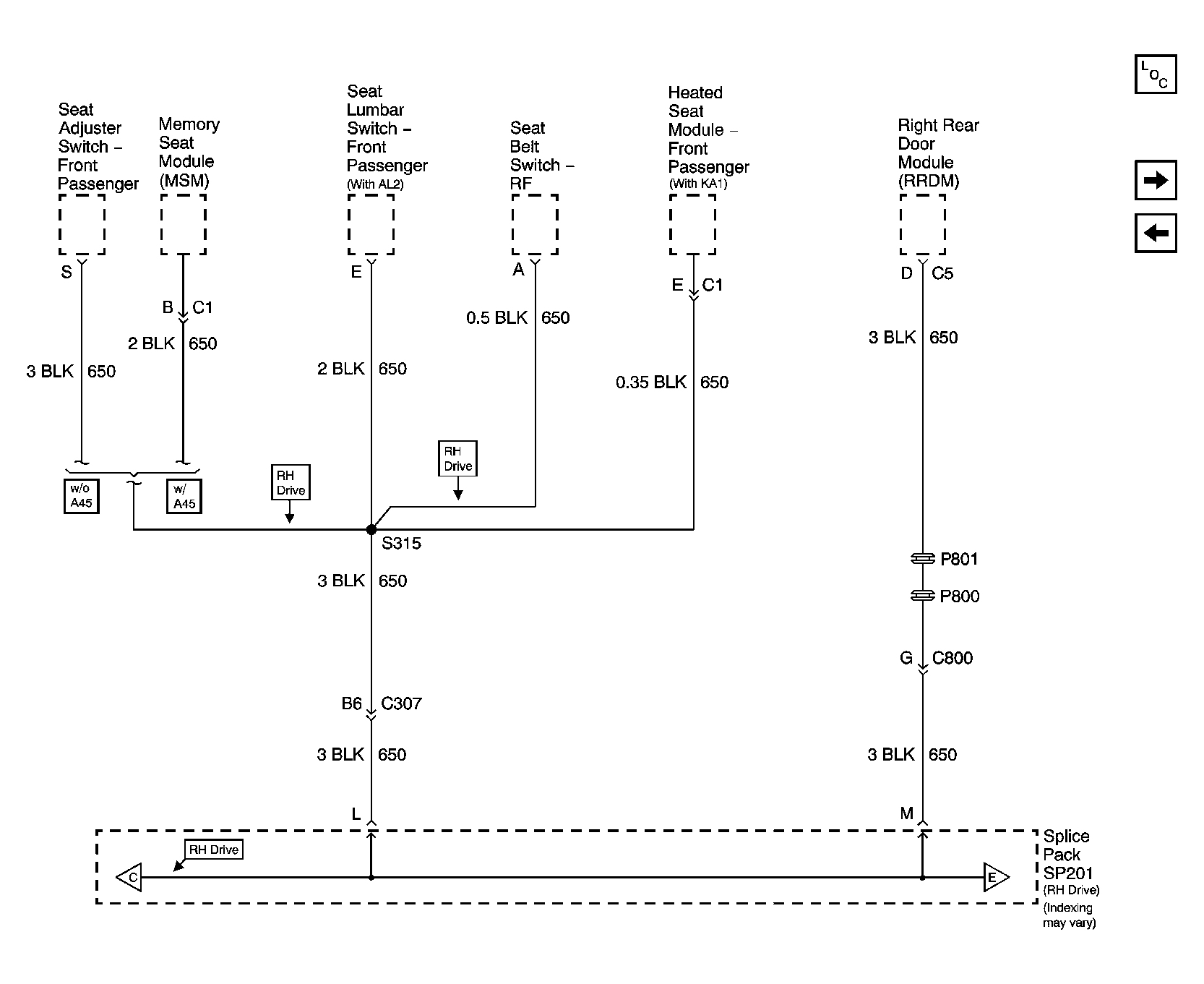

Fig 11: G201 (4 of 5) (RH Drive) Schematic

GM1177202

Courtesy of GENERAL MOTORS CORP.

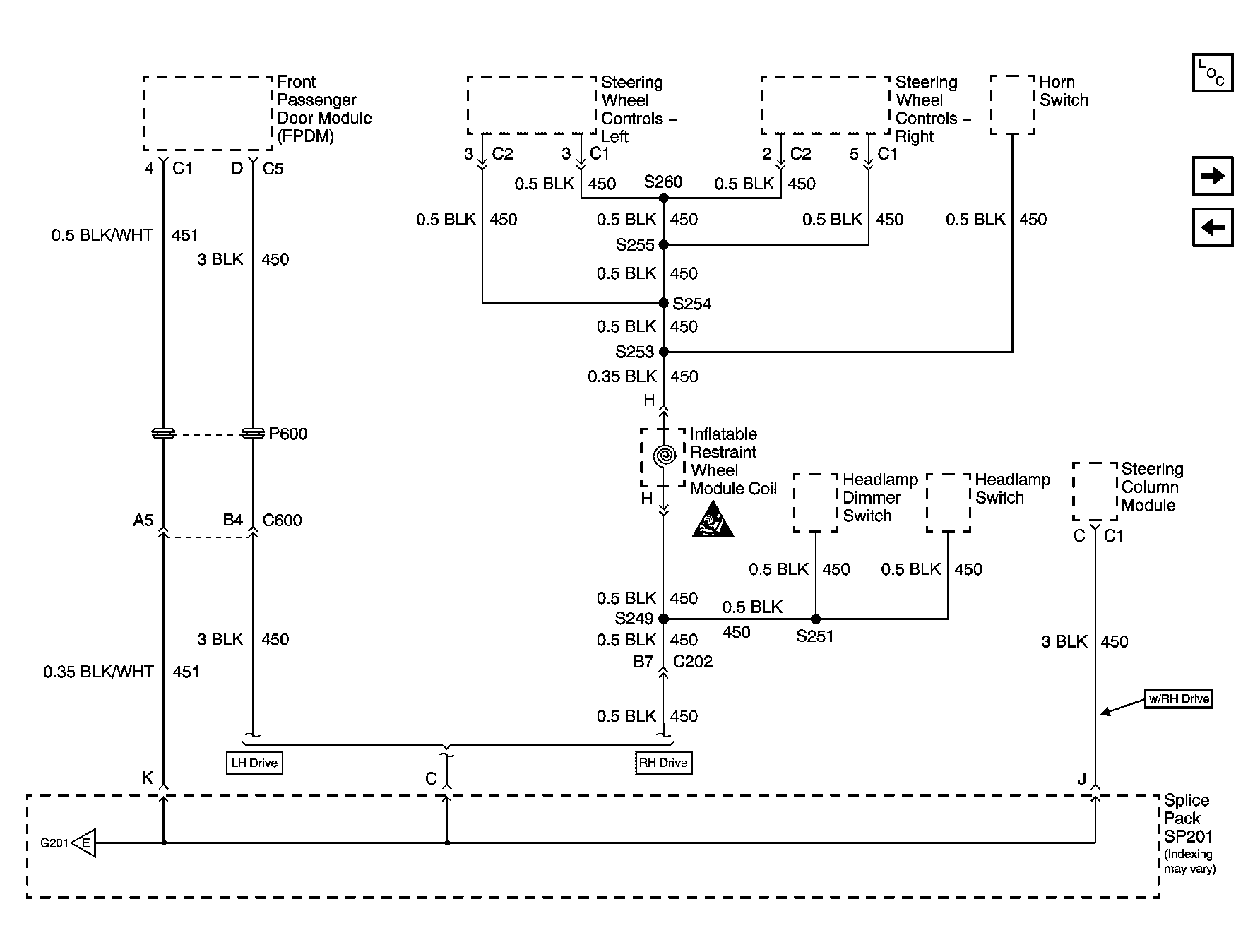

Fig 12: G201 (5 of 5) Schematic

GM1177213

Courtesy of GENERAL MOTORS CORP.

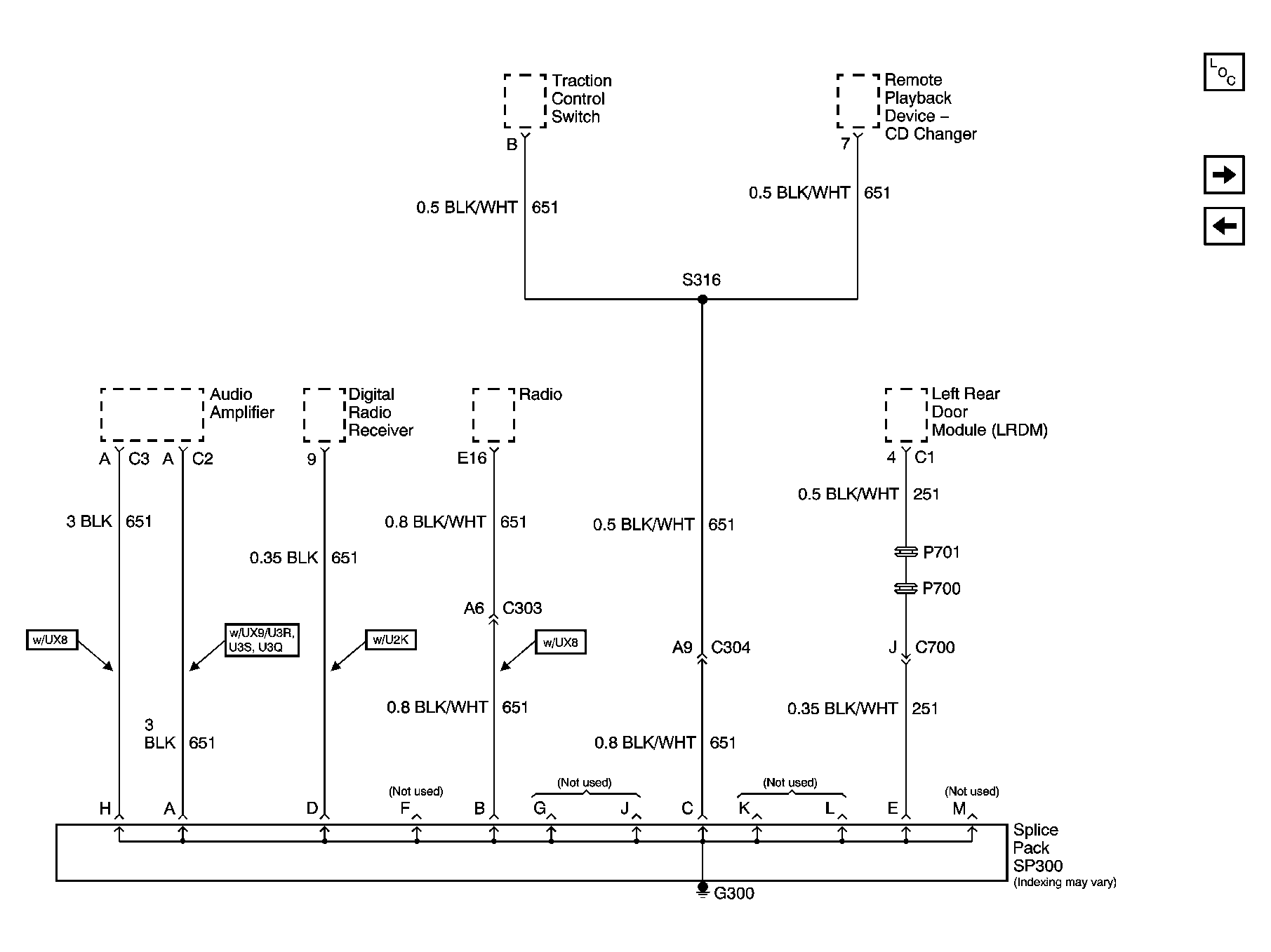

Fig 13: G300 Schematic

GM791928

Courtesy of GENERAL MOTORS CORP.

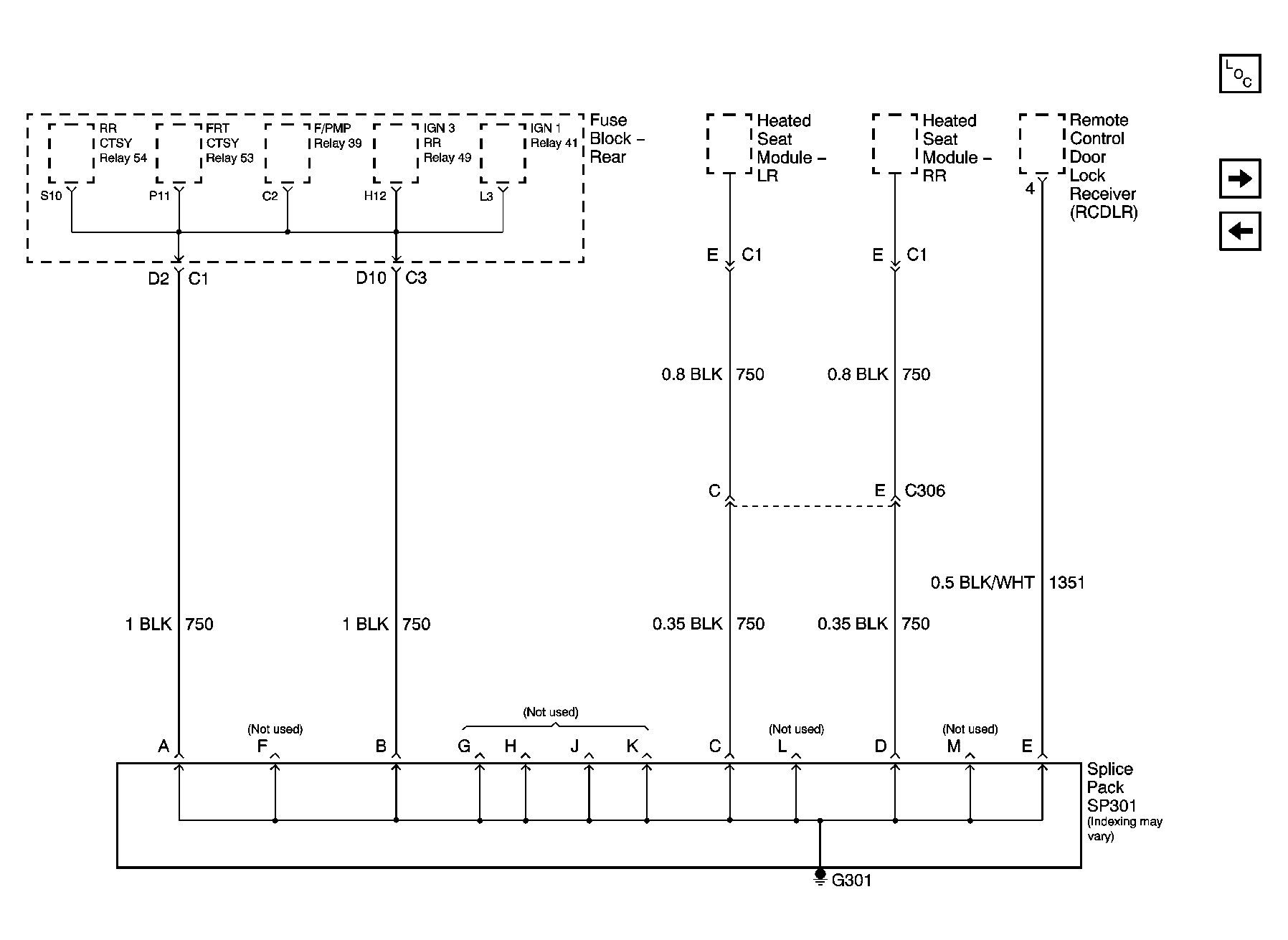

Fig 14: G301 Schematic

GM879663

Courtesy of GENERAL MOTORS CORP.

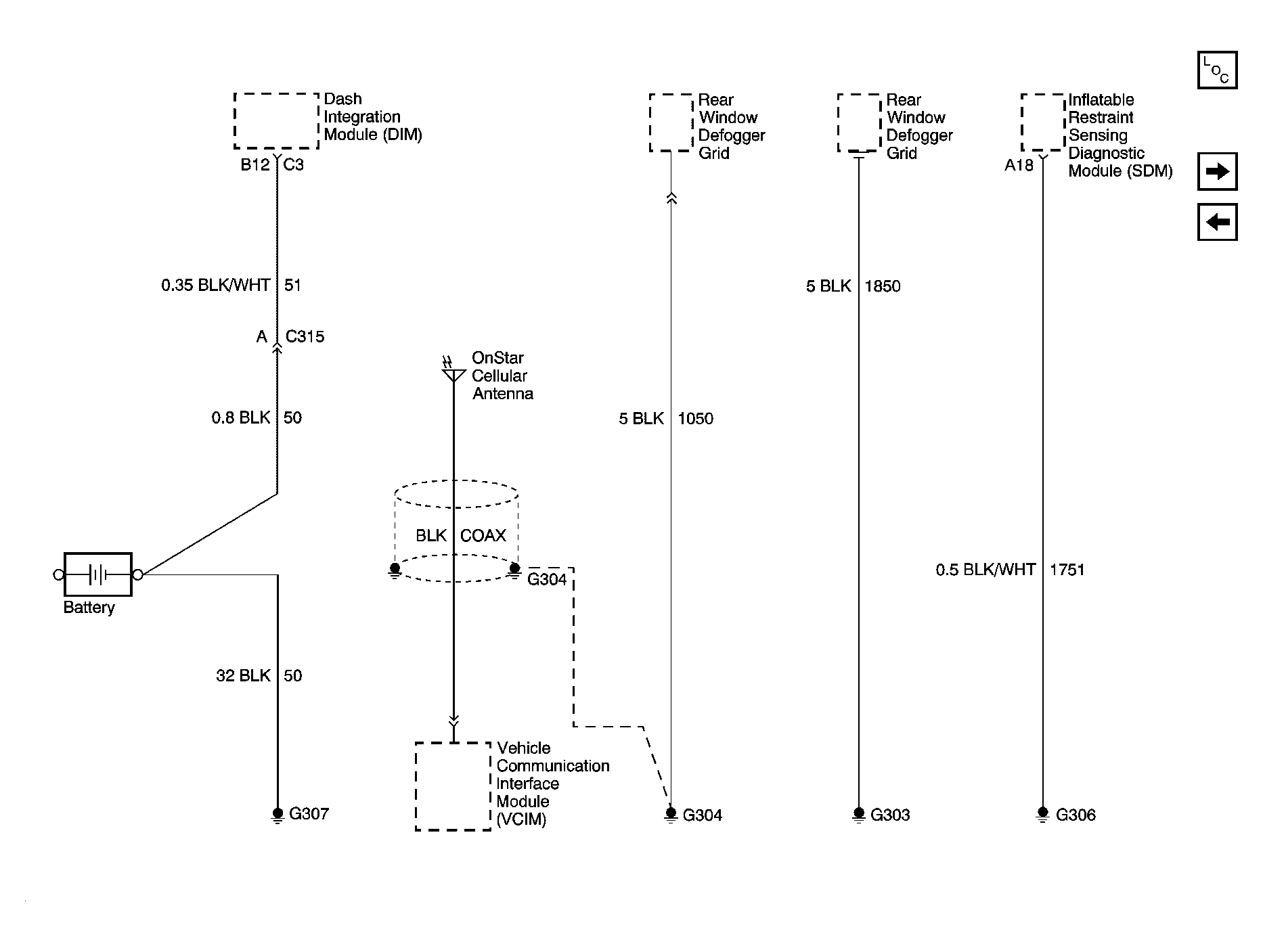

Fig 15: G303, G304, G306 and G307 Schematic

GM783593

Courtesy of GENERAL MOTORS CORP.

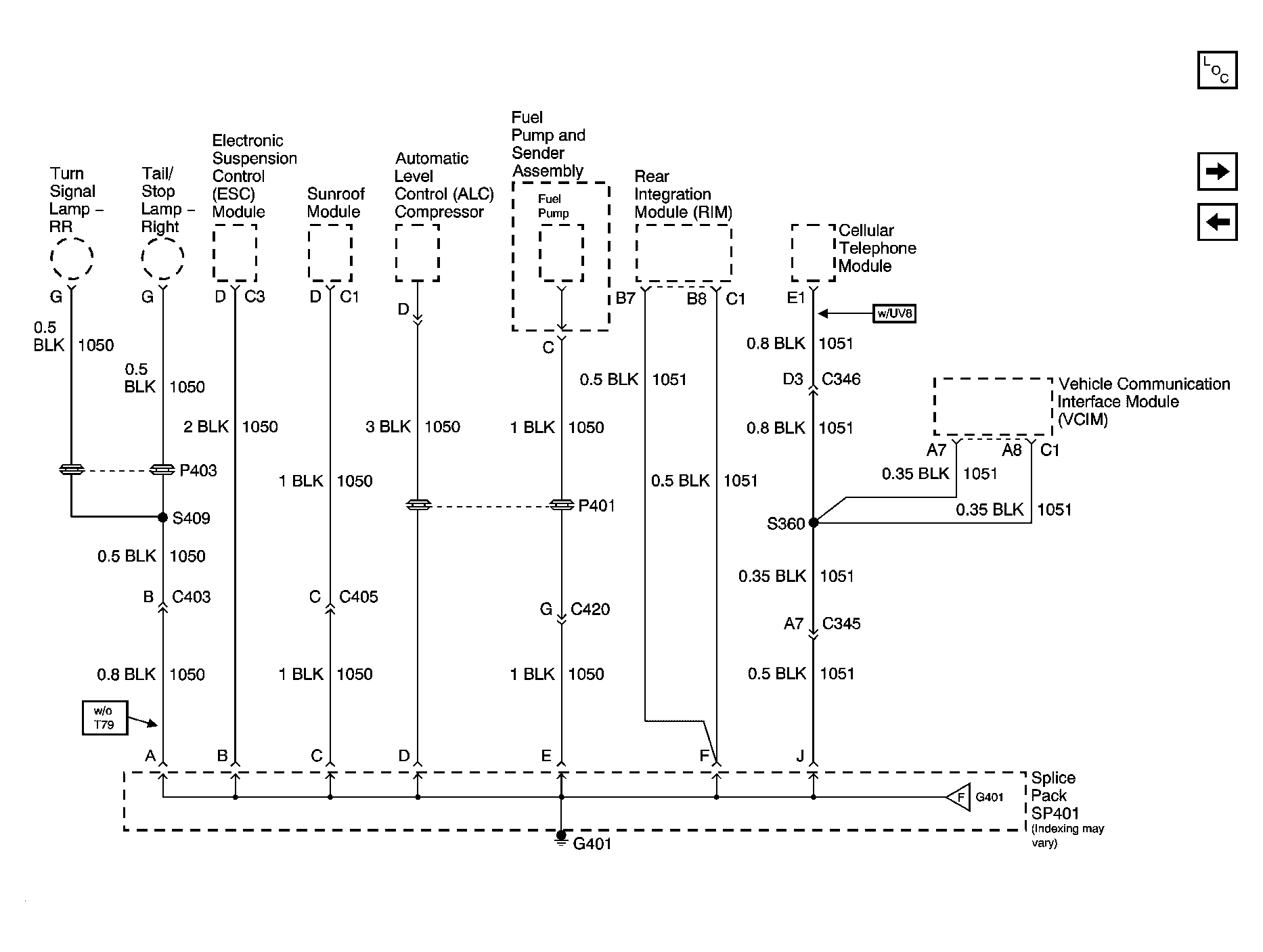

Fig 16: G401 (1 of 3) Late Production) Schematic

GM1202017

Courtesy of GENERAL MOTORS CORP.

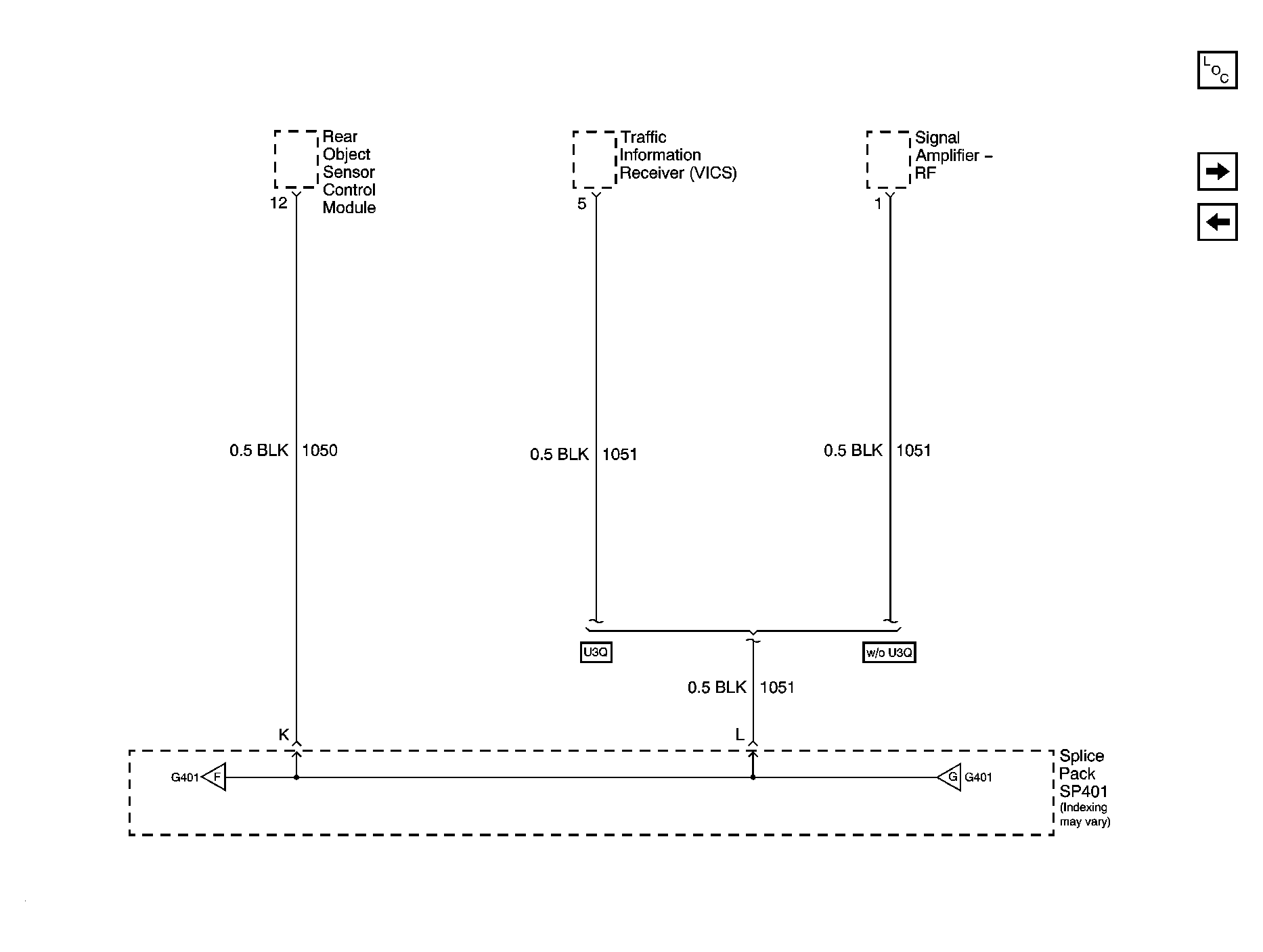

Fig 17: G401 (2 of 3) Schematic

GM783596

Courtesy of GENERAL MOTORS CORP.

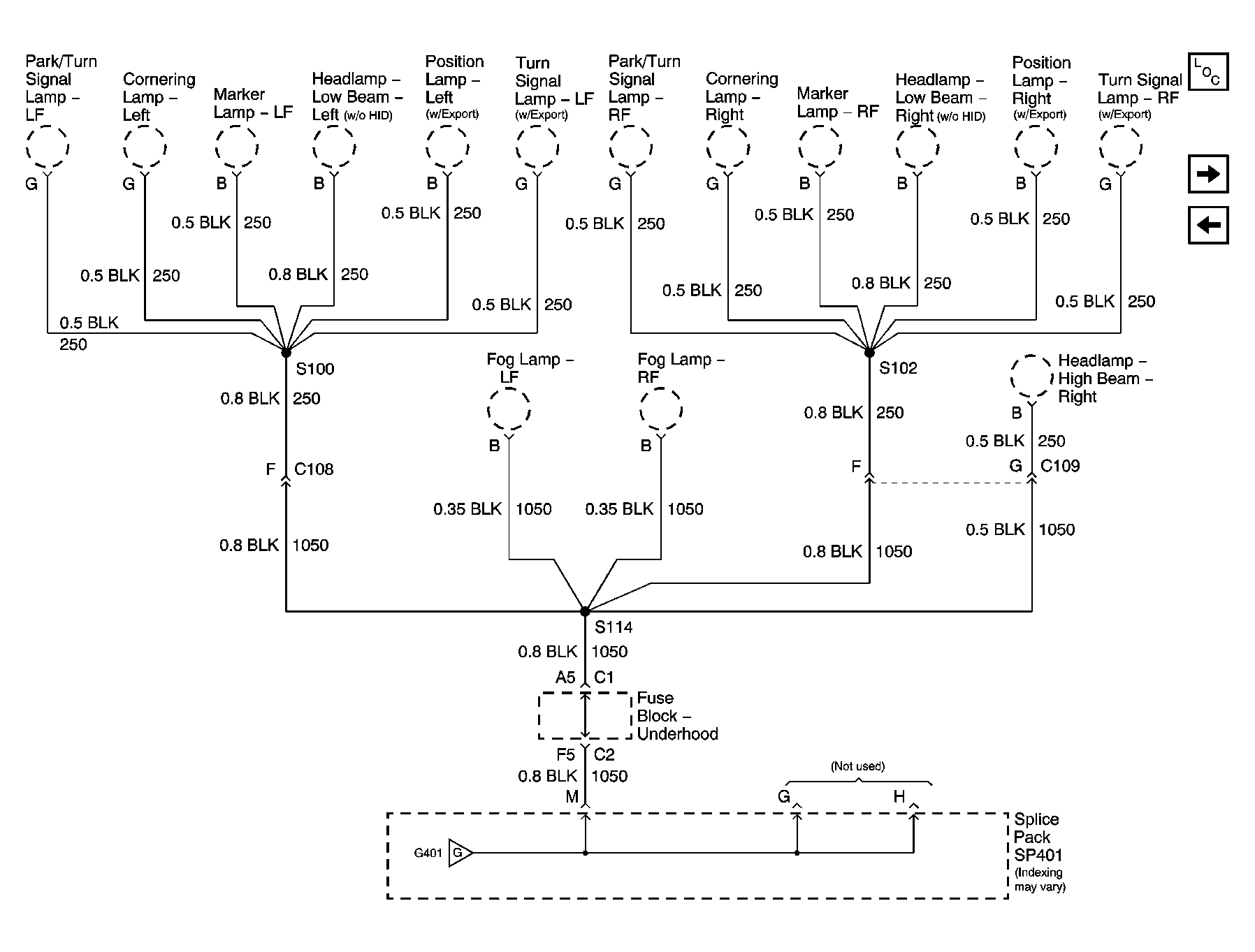

Fig 18: G401 (3 of 3) Schematic

GM791931

Courtesy of GENERAL MOTORS CORP.

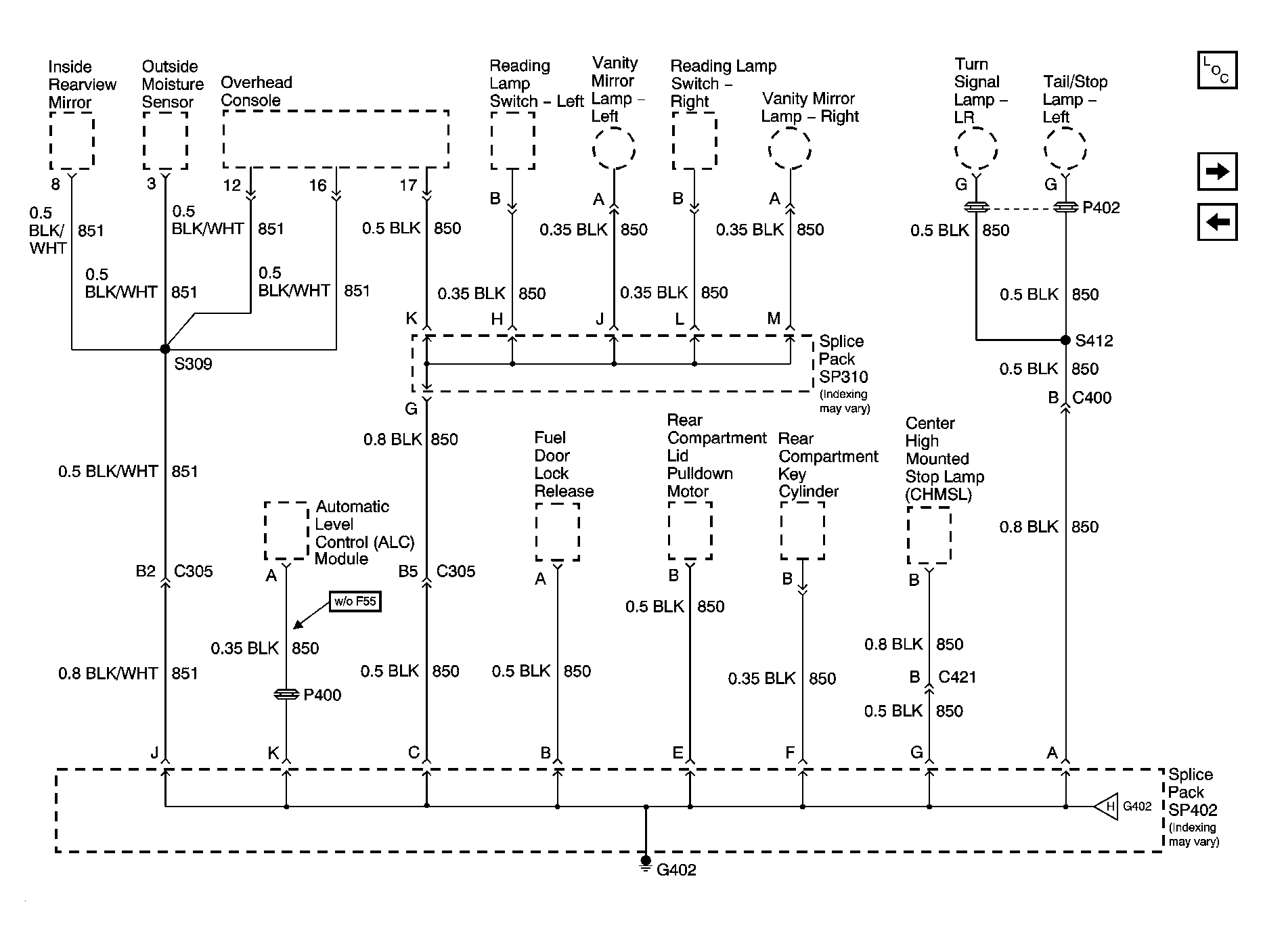

Fig 19: G402 (1 of 2) Schematic

GM783597

Courtesy of GENERAL MOTORS CORP.

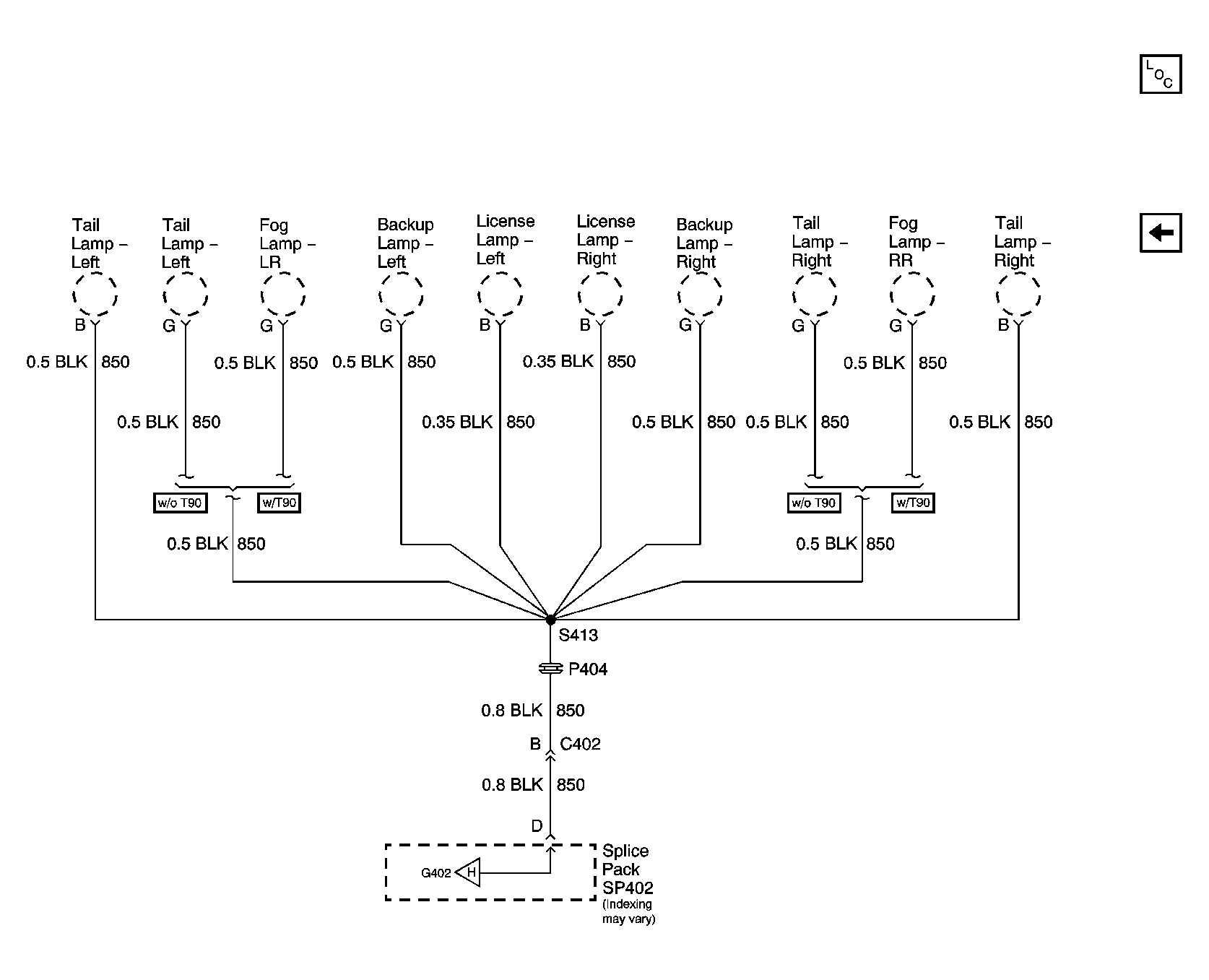

Fig 20: G402 (2 of 2) Schematic

GM791932

Courtesy of GENERAL MOTORS CORP.
