Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

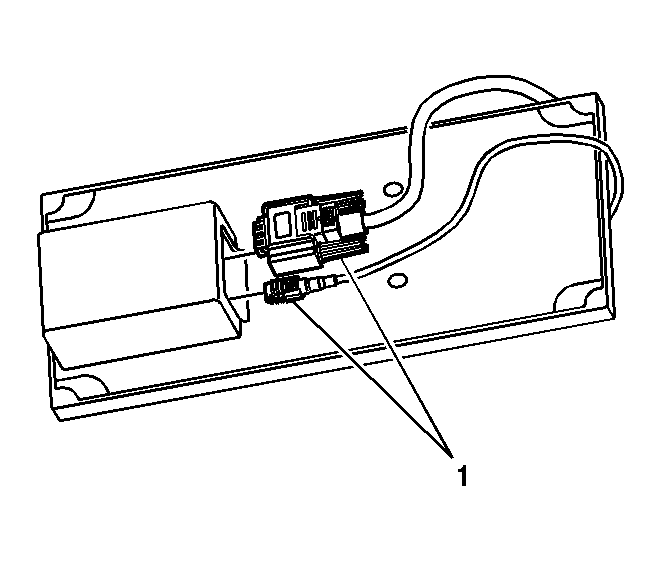

    Fig 1: Identifying Docking Station Wires
    GM821220Courtesy of GENERAL MOTORS CORP.
  1. Route the docking station wires (1) through the opening in the tray insert.

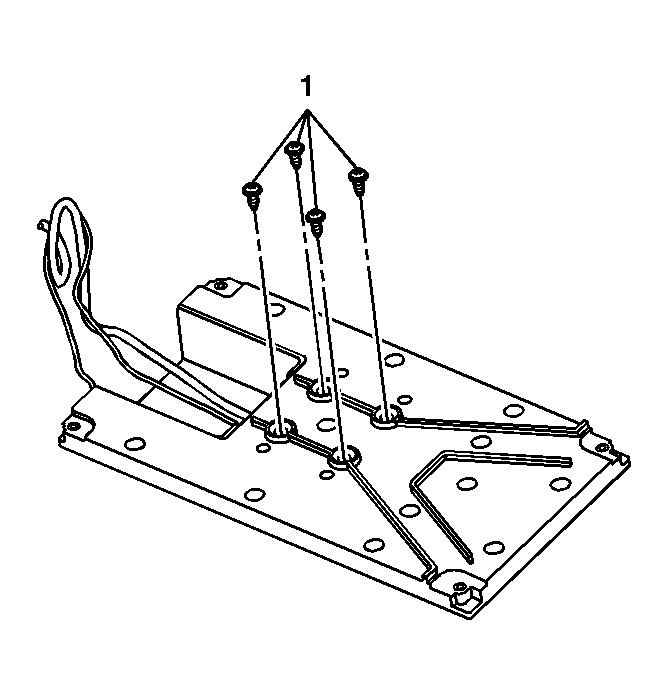

  2. Fig 2: Identifying Console Tray Insert Docking Station Screws
    GM821211Courtesy of GENERAL MOTORS CORP.
  3. Install the docking cup to the console tray insert.
  4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the docking station screws (1).

    Tighten:  Tighten the screws to 1.6 N.m (14 lb in).

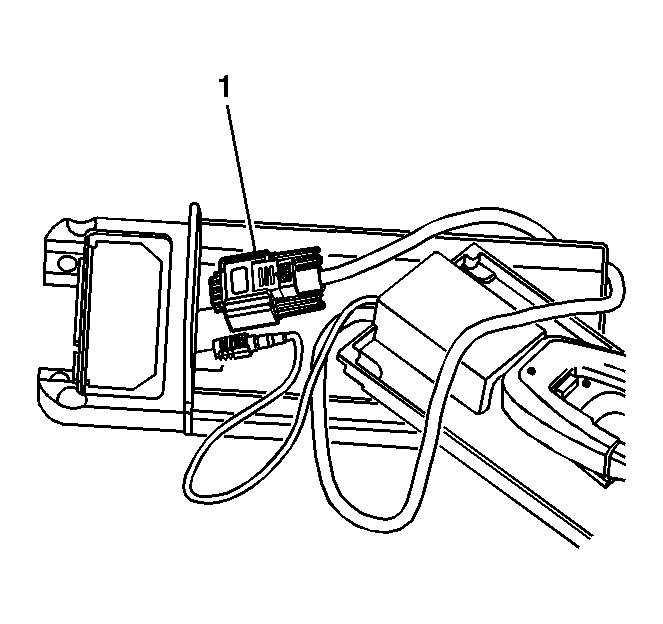

  6. Fig 3: Identifying Docking Station Wires
    GM821225Courtesy of GENERAL MOTORS CORP.
  7. Route the docking station wires (1) through the opening in the console tray.

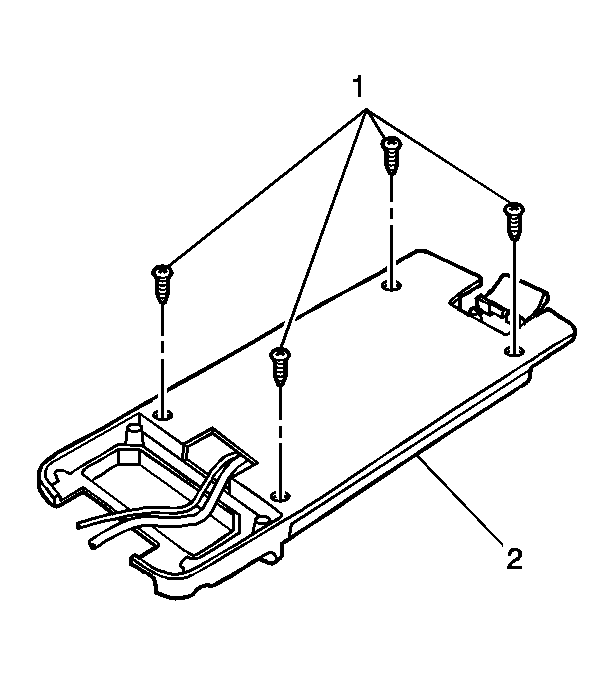

  8. Fig 4: View of Console Tray
    GM568376Courtesy of GENERAL MOTORS CORP.
  9. Install the console tray insert to the console tray (2).
  10. Install the console tray insert screws (1).

    Tighten:  Tighten the screws to 1.6 N.m (14 lb in).

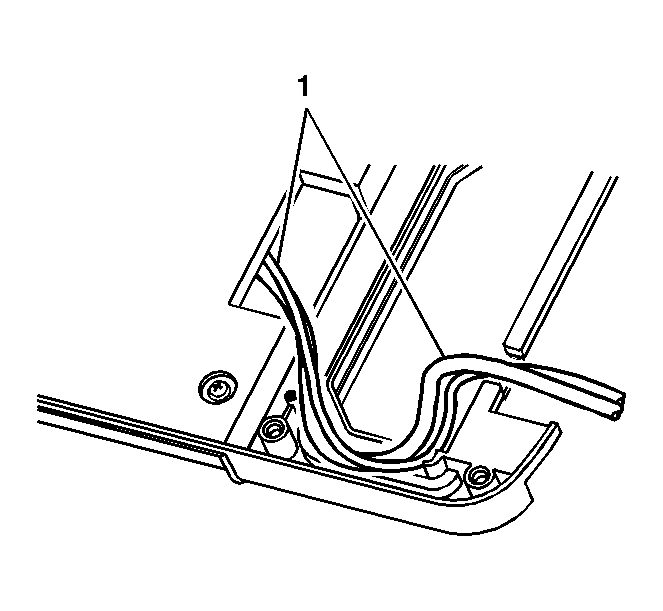

  11. Fig 5: Identifying Cellular Phone Wiring
    GM821227Courtesy of GENERAL MOTORS CORP.
  12. Route the cellular phone wiring (1) in the hinge area of the console tray.

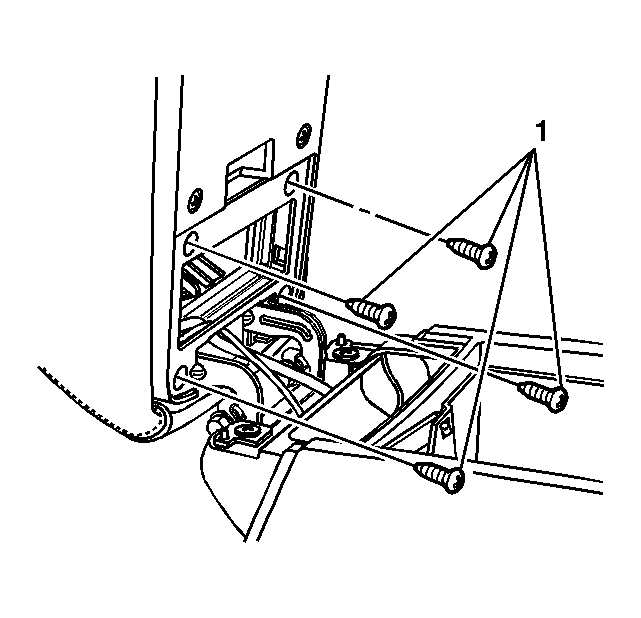

  13. Fig 6: Identifying Floor Console Tray Screws
    GM821214Courtesy of GENERAL MOTORS CORP.
  14. Install the console tray to the floor console.
  15. Install the console tray screws (1).

    Tighten:  Tighten the screws to 1.6 N.m (14 lb in).

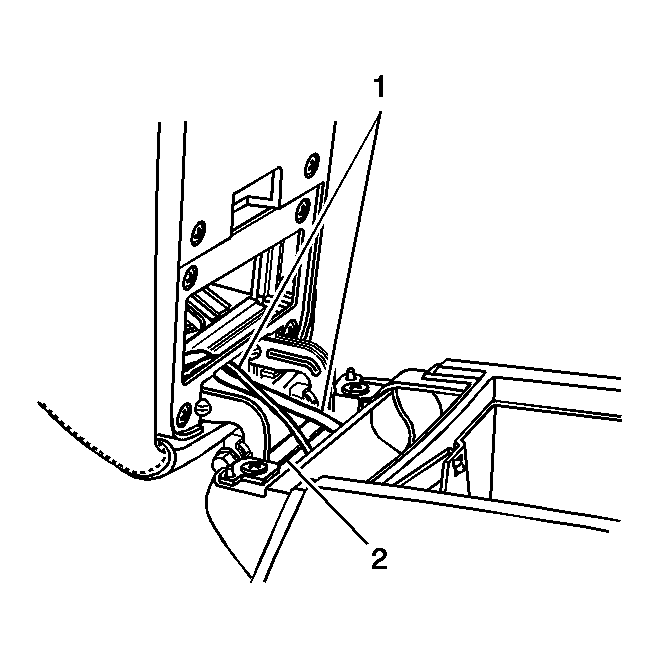

  16. Fig 7: Identifying Console Hinge Brace & Cellular Phone Wiring
    GM821215Courtesy of GENERAL MOTORS CORP.
  17. Route the cellular phone wiring (1) behind the console hinge cross brace (2).

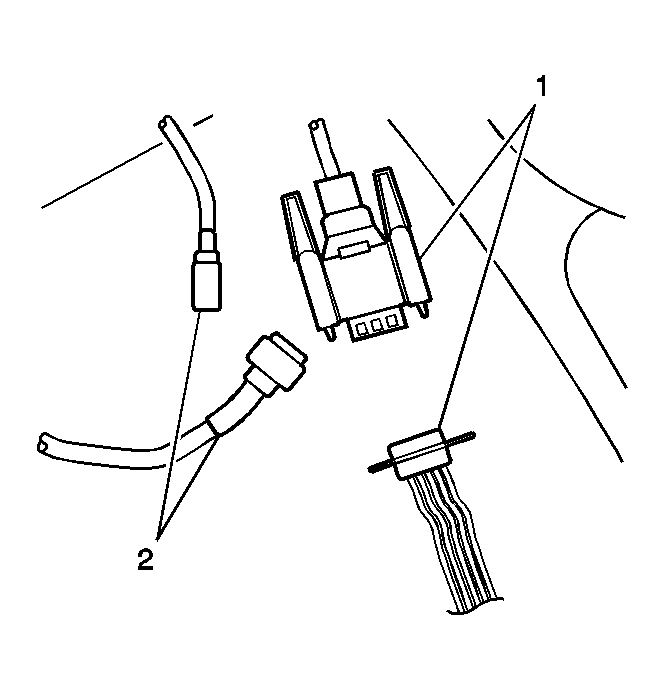

  18. Fig 8: View Of Docking Station Electrical Connector & Coaxial Cable
    GM820710Courtesy of GENERAL MOTORS CORP.
  19. Connect the docking station electrical connector (1).
  20. Connect the coaxial cable (2).
  21. Route the cellular phone wiring under the floor console.

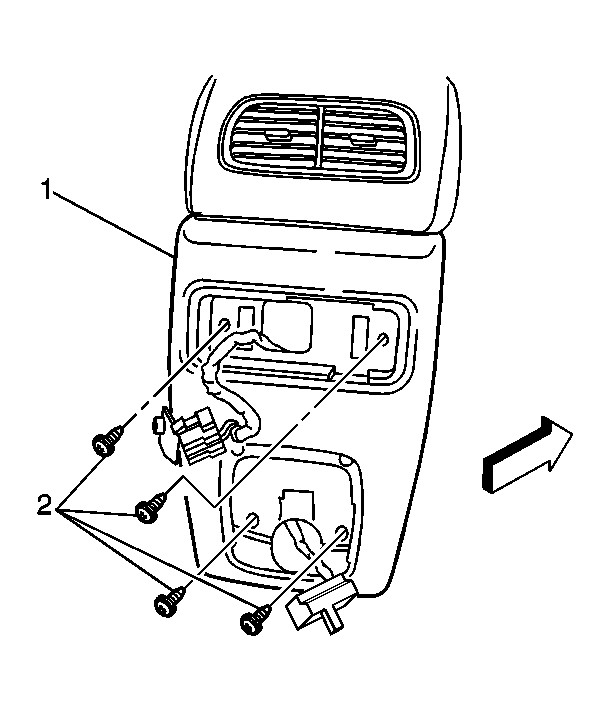

  22. Fig 9: View of Floor Console
    GM734985Courtesy of GENERAL MOTORS CORP.
  23. Install the floor console rear cover (1).
  24. Install the floor console rear cover screws (2).

    Tighten:  Tighten the screws to 1.6 N.m (14 lb in).

  25. Install the floor console ashtray.
  26. Install the auxiliary HVAC control module. Refer to HVAC Control Module Replacement - Auxiliary in HVAC Automatic.

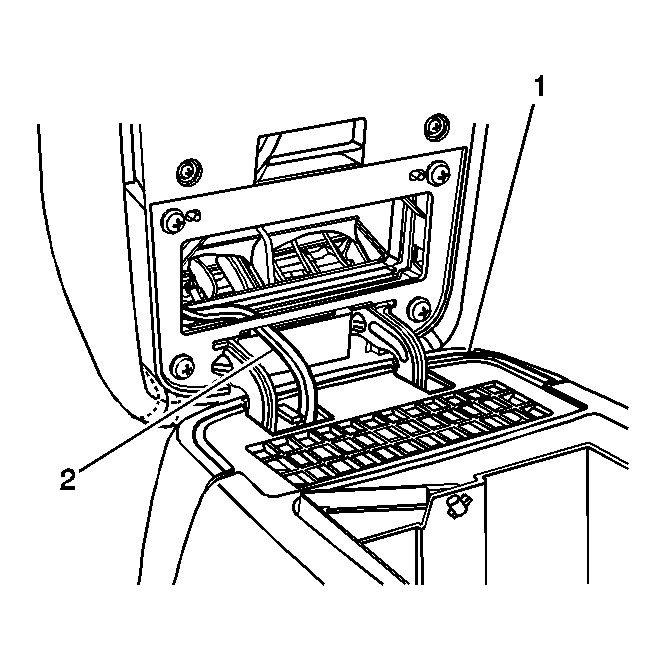

  27. Fig 10: Identifying HVAC Outlet & Phone Wiring
    GM821212Courtesy of GENERAL MOTORS CORP.
  28. Install the inner auxiliary HVAC outlet (1).
  29. Ensure the phone wiring (2) is captured in the cutout on the inner auxiliary HVAC outlet (1).
