Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the sunshade support.
  2. Install the sunshade support screw.
  3. Connect the electrical connector.
  4. Push the electrical connector and wiring above the headliner.
  5. Align the sunshade outboard bezel with the holes in the retainer.
  6. Install the 3 screws.

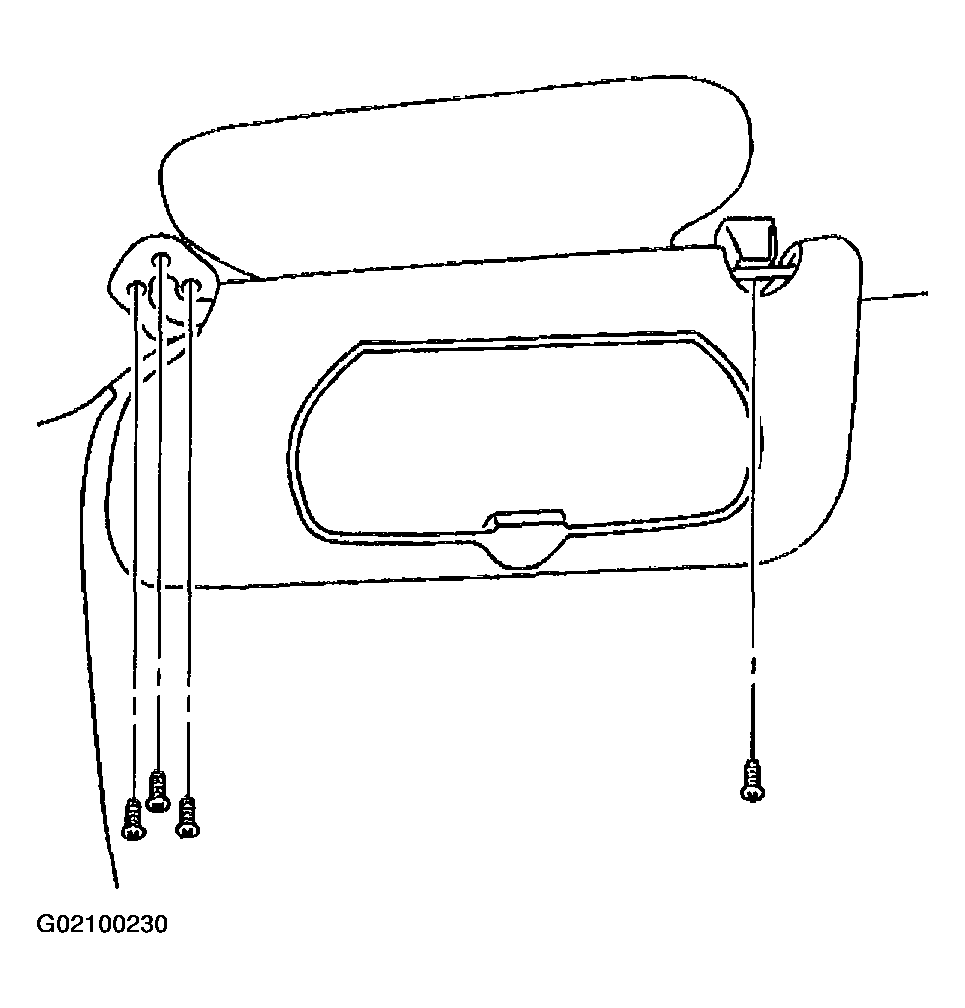

    Fig 1: Installing Sunshade And Screws
    G02100230Courtesy of GENERAL MOTORS CORP.
