Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the sail panel retainer clips with the holes in the rear window pillar.
  2. Push in on the sail panel to engage the retainer clips.
  3. Install the rear seat shoulder belt retractor. Refer to SEAT BELT RETRACTOR REPLACEMENT - REAR

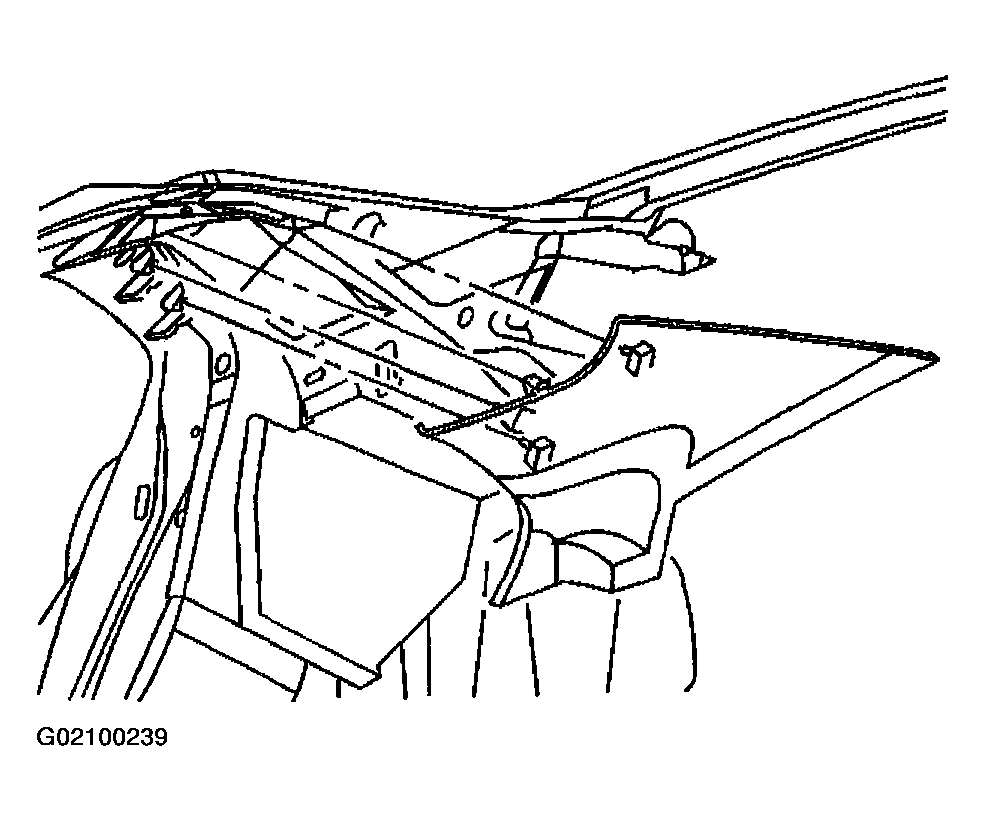

    Fig 1: Installing Sail Panel
    G02100239Courtesy of GENERAL MOTORS CORP.
