Removal Procedure
WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

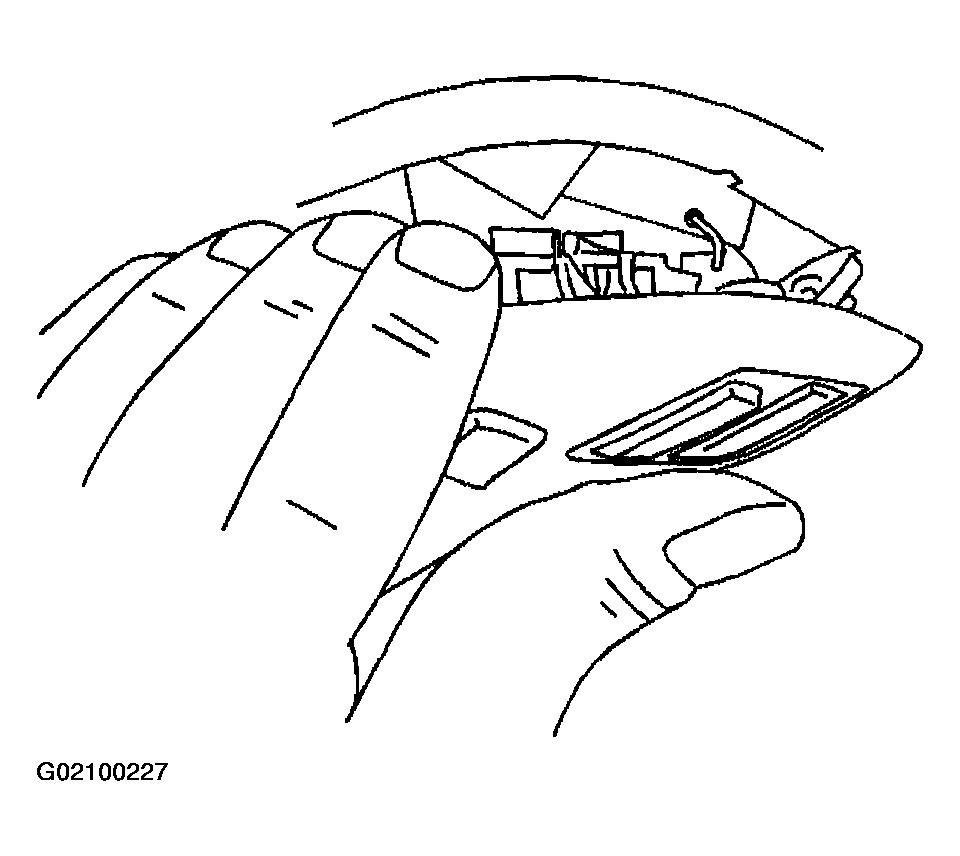

- Carefully pull down on the overhead console to release the 4 retainer clips.
Important:
Care should be taken not to damage the flat wire harness.
- Disconnect the electrical connectors.
- Remove the overhead console.
Courtesy of GENERAL MOTORS CORP.
