Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release both assist strap escutcheons.
  2. Gently pry out on the outer edge of the escutcheon.
  3. Release the escutcheon and slide it to the center of the assist strap.
  4. Remove the 2 screws.
  5. Remove the coat hook. Refer to COAT HOOK REPLACEMENT  .
  6. Remove the assist strap.

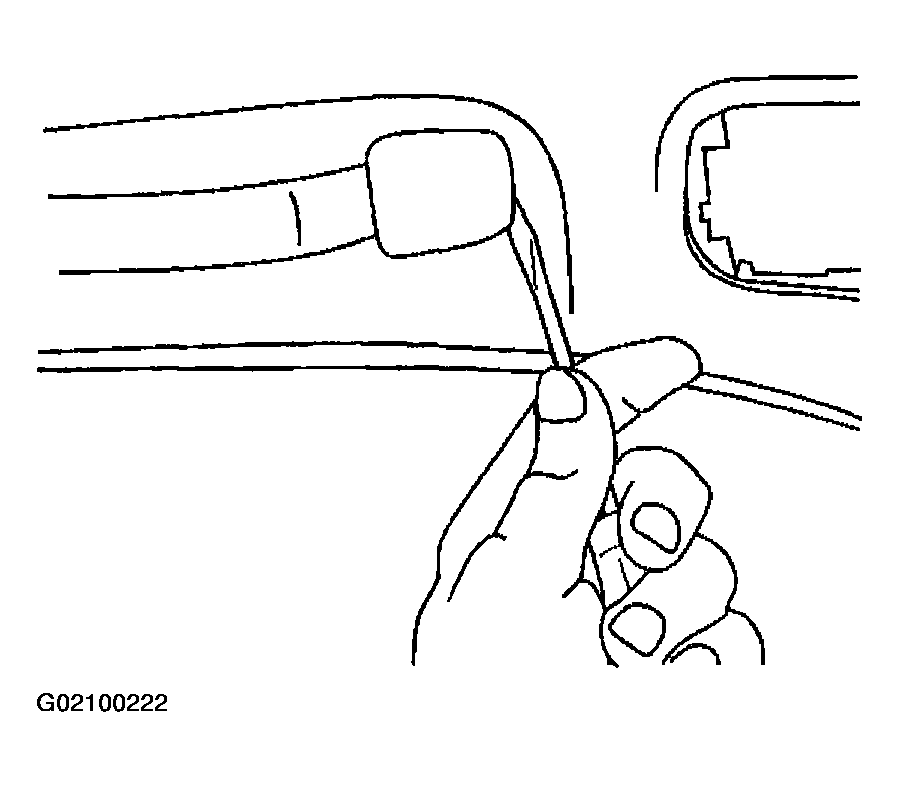

    Fig 1: Removing Assist Handle
    G02100222Courtesy of GENERAL MOTORS CORP.
