Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the assist strap to the openings in the headliner.
  2. Install the coat hook. Refer to COAT HOOK REPLACEMENT  .
  3. Install the 2 screws.
  4. Install the 2 escutcheons.

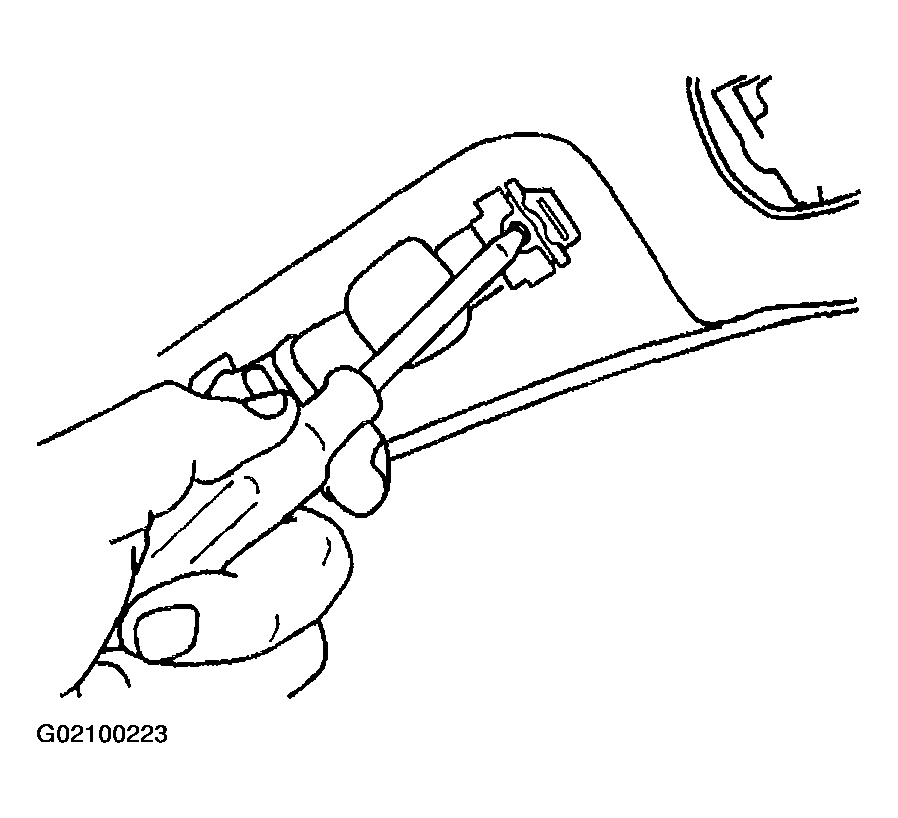

    Fig 1: Installing Assist Handle
    G02100223Courtesy of GENERAL MOTORS CORP.
