Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the switch into the switch bracket.
  2. Connect the electrical connector to the seat switch.

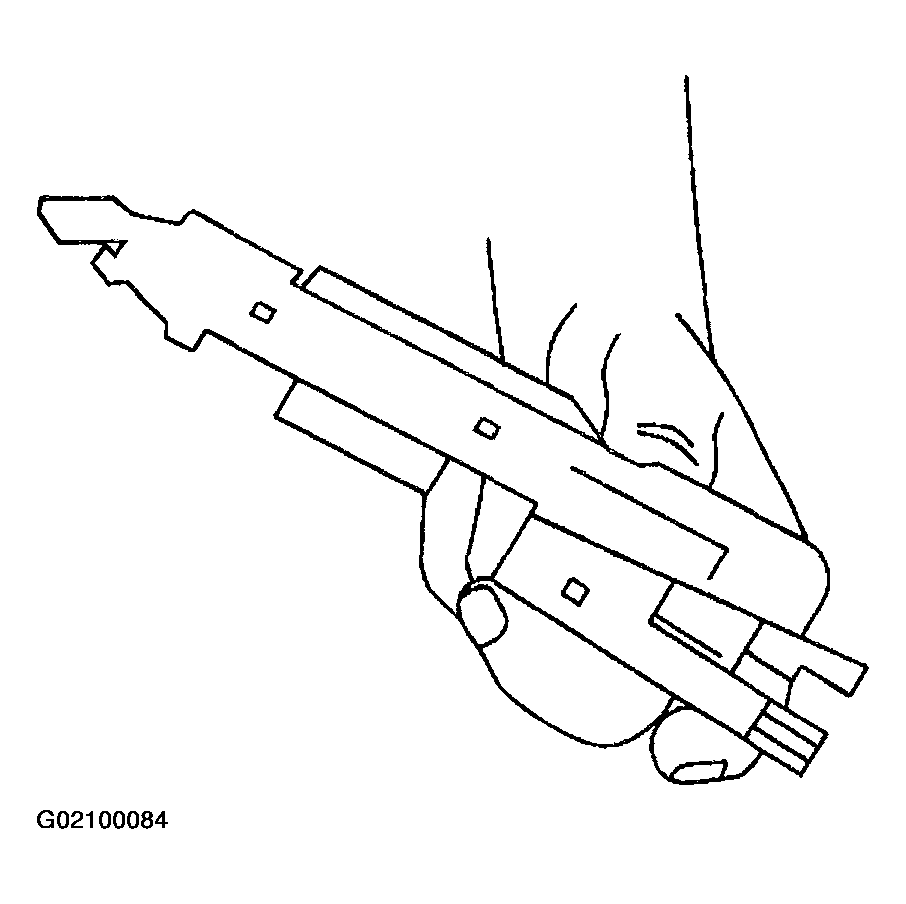

    Fig 1: Installing Switch Into Switch Bracket
    G02100084Courtesy of GENERAL MOTORS CORP.
  3. Slide the seat switch and bracket assembly onto the seat bottom.
  4. Install the seat switch bracket retainers into the seat bottom.

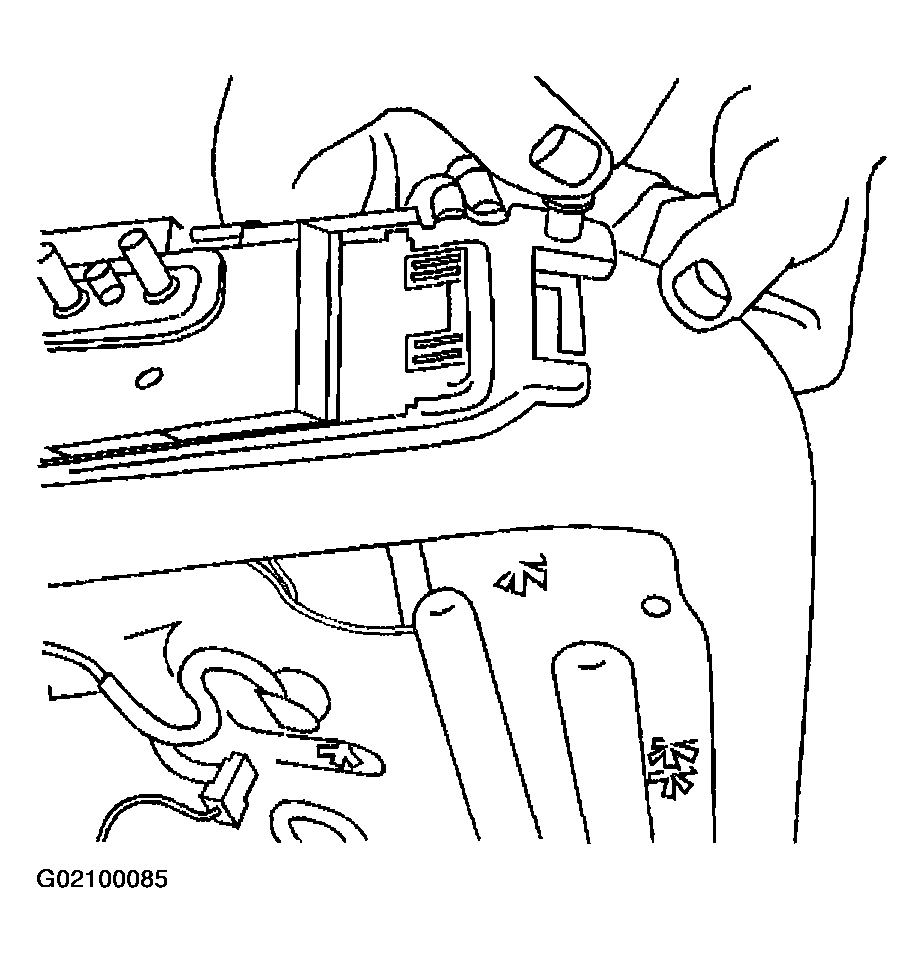

    Fig 2: Installing Seat Switch Bracket Retainers Into Seat Bottom
    G02100085Courtesy of GENERAL MOTORS CORP.
  5. Pull the seat cover back down over the switch and align holes in the cover to the switch assembly.
  6. Install the seat cover J channels.
  7. Install the seat switch trim plate.

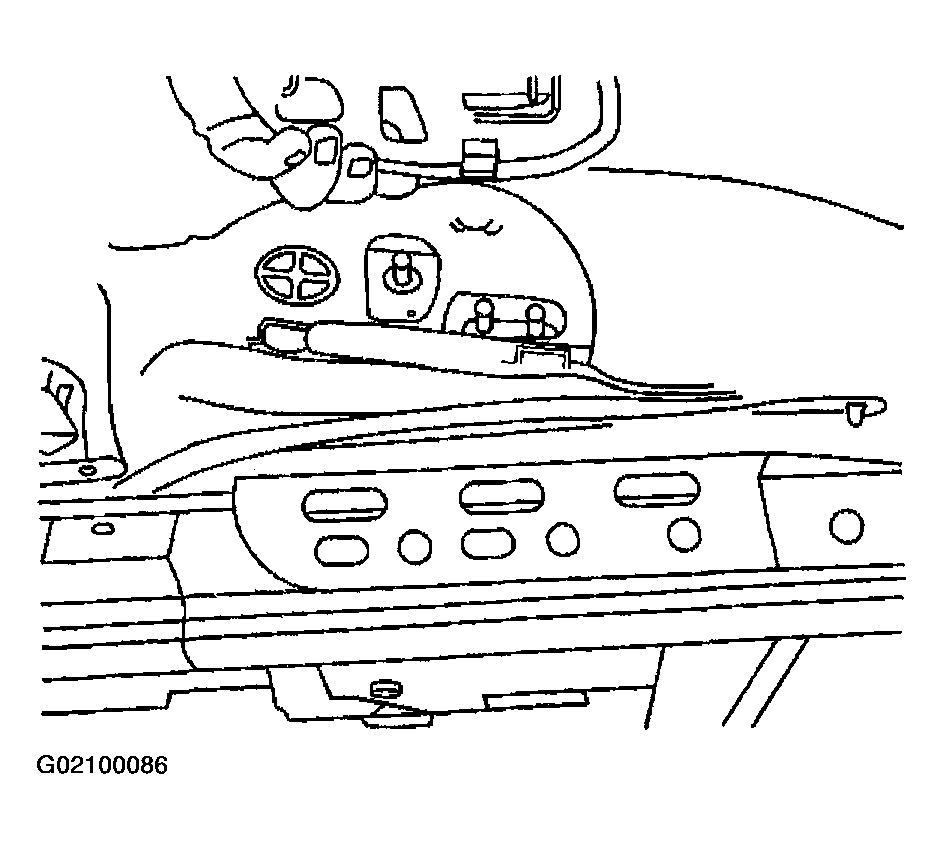

    Fig 3: Installing Seat Switch Trim Plate
    G02100086Courtesy of GENERAL MOTORS CORP.
  8. Install the knobs to the switches.

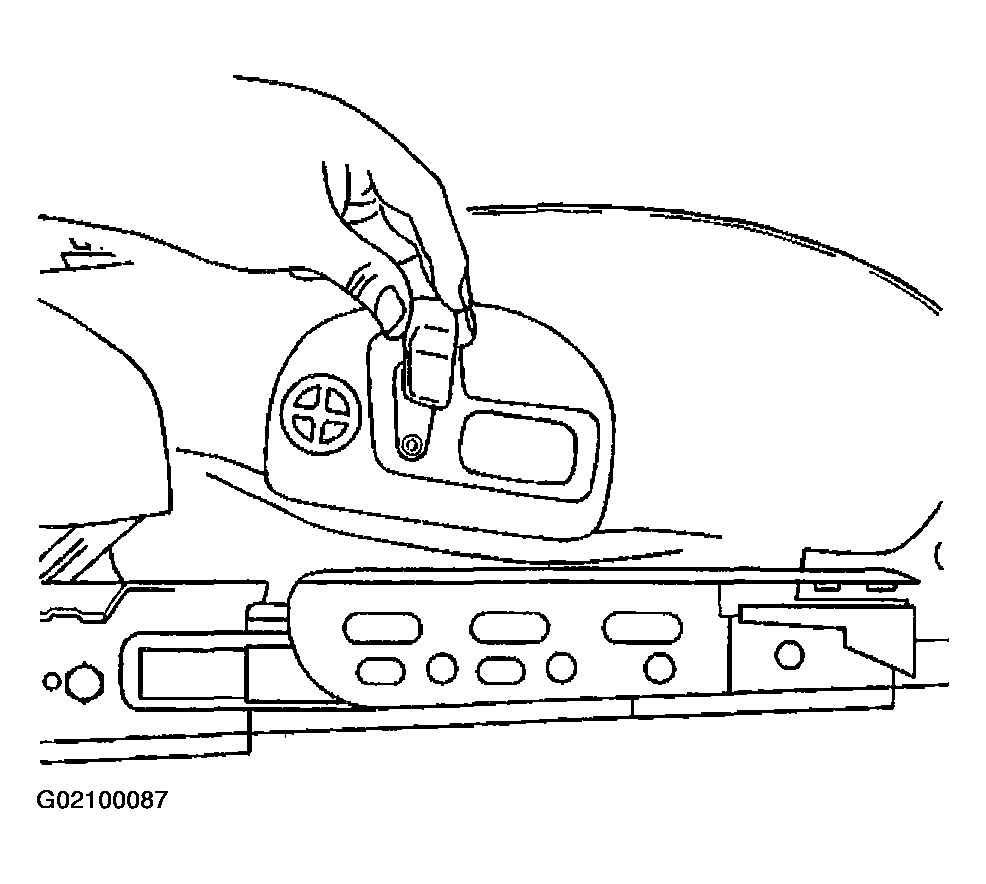

    Fig 4: Installing Knobs To Switches
    G02100087Courtesy of GENERAL MOTORS CORP.
  9. Align the front seat cushion and frame assembly with the seat adjuster.
  10. Connect the front heated seat cushion electrical connectors and the lumbar air lines, if equipped.
  11. Engage the rear of the seat cushion and frame assembly to the seat adjuster, push down on the front of the cushion in order to engage the studs in the seat adjuster.
    NOTE: Refer to FASTENER NOTICE
  12. Install the seat cushion and frame assembly fasteners.

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

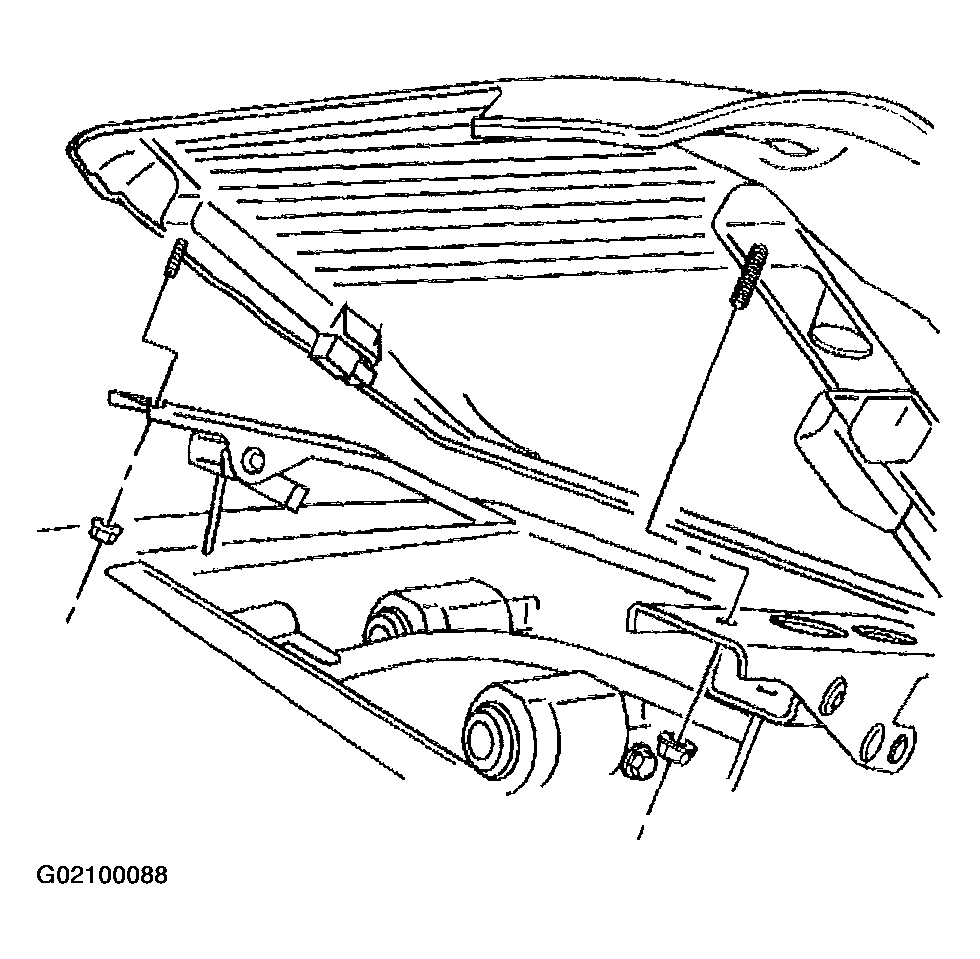

    Fig 5: Installing Seat Cushion And Frame Assembly Fasteners
    G02100088Courtesy of GENERAL MOTORS CORP.
