Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the seat back by the lower mounting attachments in order to avoid the pass through door from binding after the fasteners are tightened.
  2. Install the pass through to the seat back.

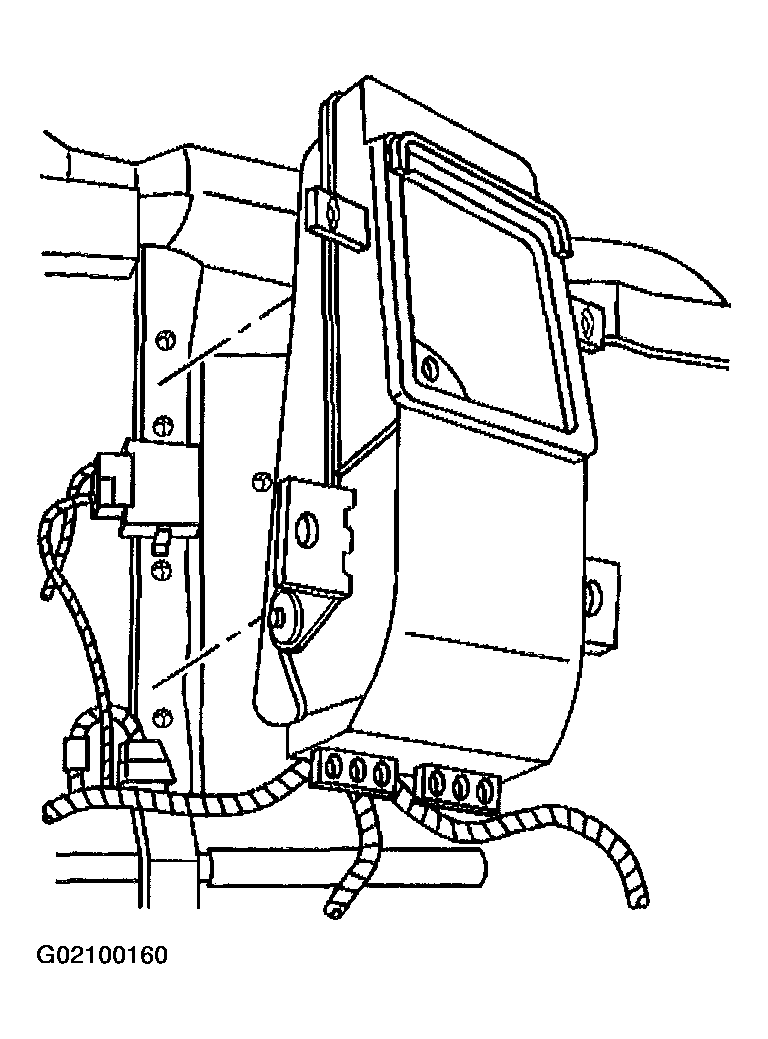

    Fig 1: Installing Pass Through To Seat Back
    G02100160Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE
  3. Install the pass through fasteners (1) and tighten to:

    Tighten

    • Tighten the lower pass through fasteners to 11.75 N.m (104 lb in).
    • Tighten the upper pass through fasteners (1) to 7 N.m (62 lb in).
  4. Ensure the pass through door operates properly.
  5. Install the seat back into the vehicle. Refer to SEAT BACK REPLACEMENT - REAR  .

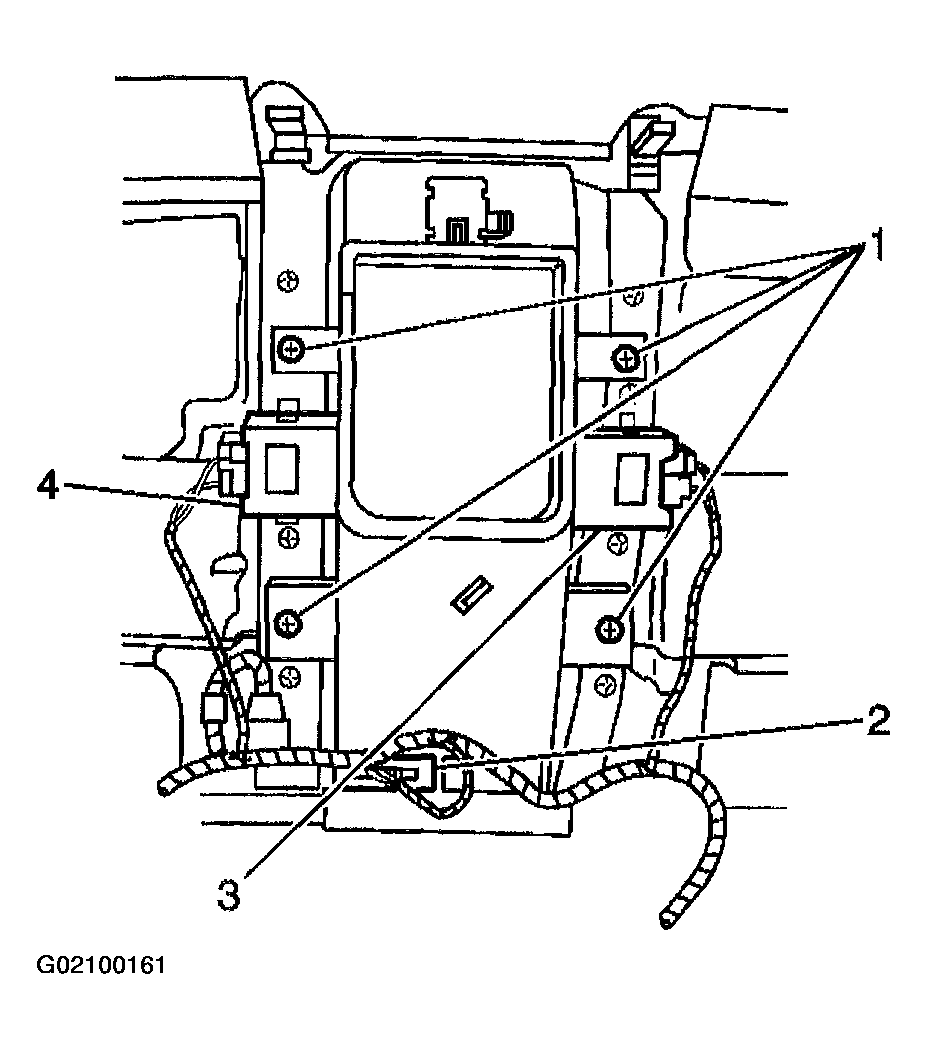

    Fig 2: Installing Pass Through Fasteners
    G02100161Courtesy of GENERAL MOTORS CORP.
