Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to SIR CAUTION
  1. Remove the front bucket seat. Refer to SEAT REPLACEMENT - BUCKET
  2. Remove the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT
  3. Remove the front seat belt assembly. Refer to SEAT BELT REPLACEMENT - DRIVER OR PASSENGER .

    Important:  Note the air line, if equipped, and electrical wiring routing during disassembly in order to ensure proper air line and electrical wiring routing during reassembly.

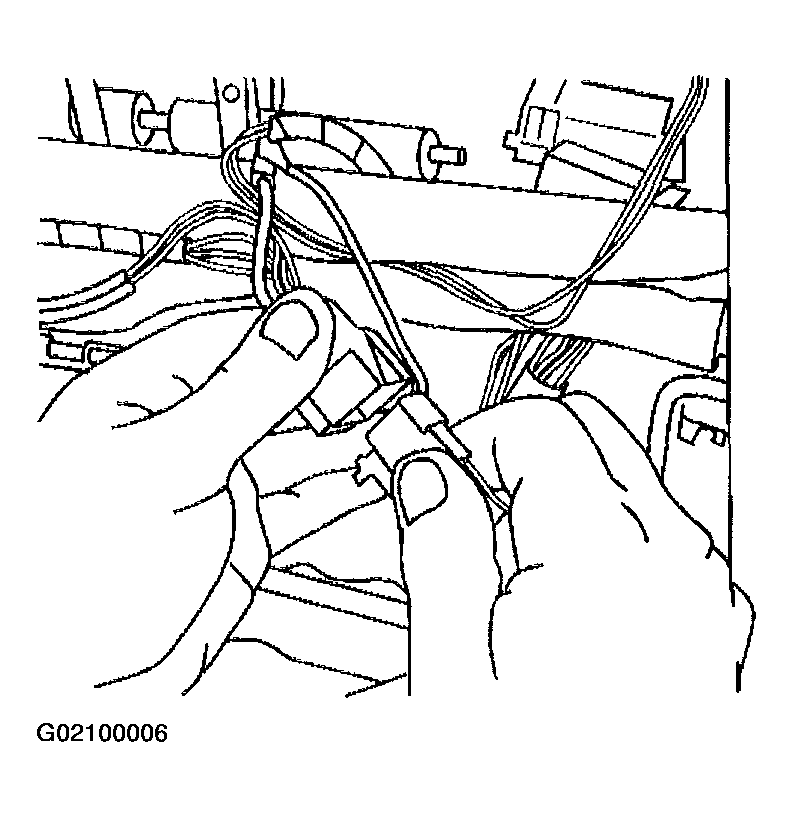

    Fig 1: Disconnecting Front Seat Back Frame Electrical Connectors
    G02100006Courtesy of GENERAL MOTORS CORP.
  4. Disconnect and remove the remaining electrical connectors and the air lines that are attached to the seat back frame.
  5. Remove the four fasteners retaining the seat back frame to the recliner.
  6. Lift up on the seat back frame in order to disengage the seat back from the recliner.

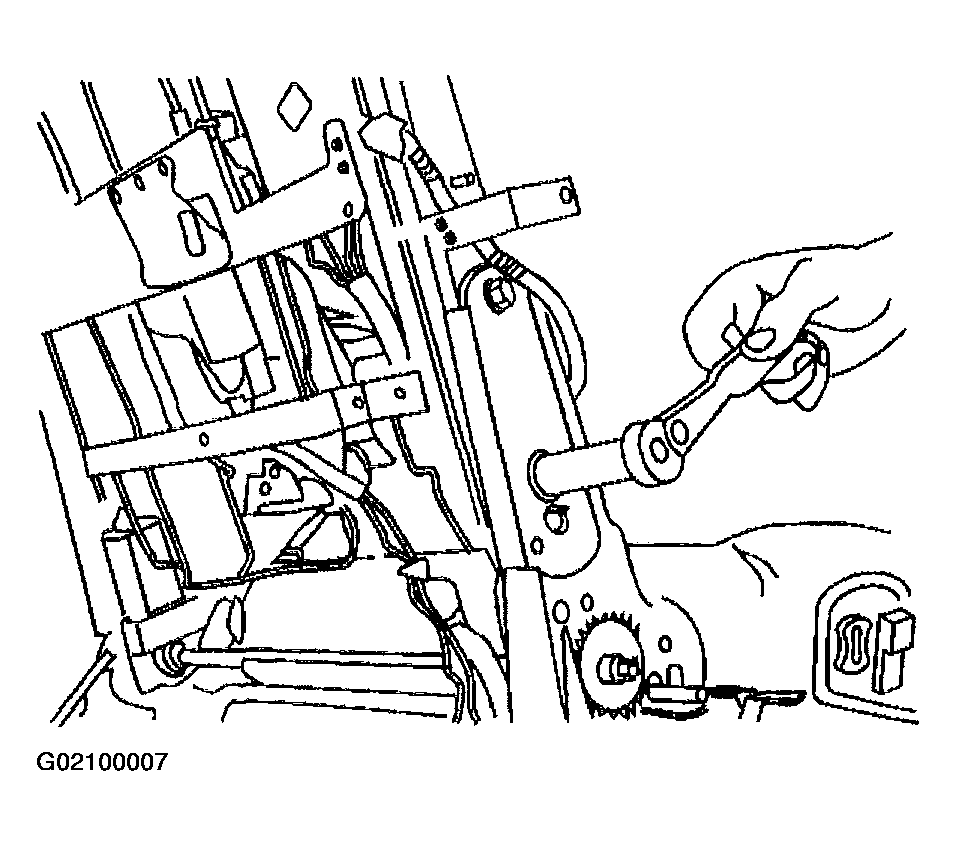

    Fig 2: Removing Four Seat Back Frame Fasteners
    G02100007Courtesy of GENERAL MOTORS CORP.
